AR88.70-P-9000CW Remove/Install Complete Outside Mirror
AR88.70-P-9000CW Remove/Install Complete Outside Mirror
AR88.70-P-9000CW Remove/Install Complete Outside Mirror
Component Identification:

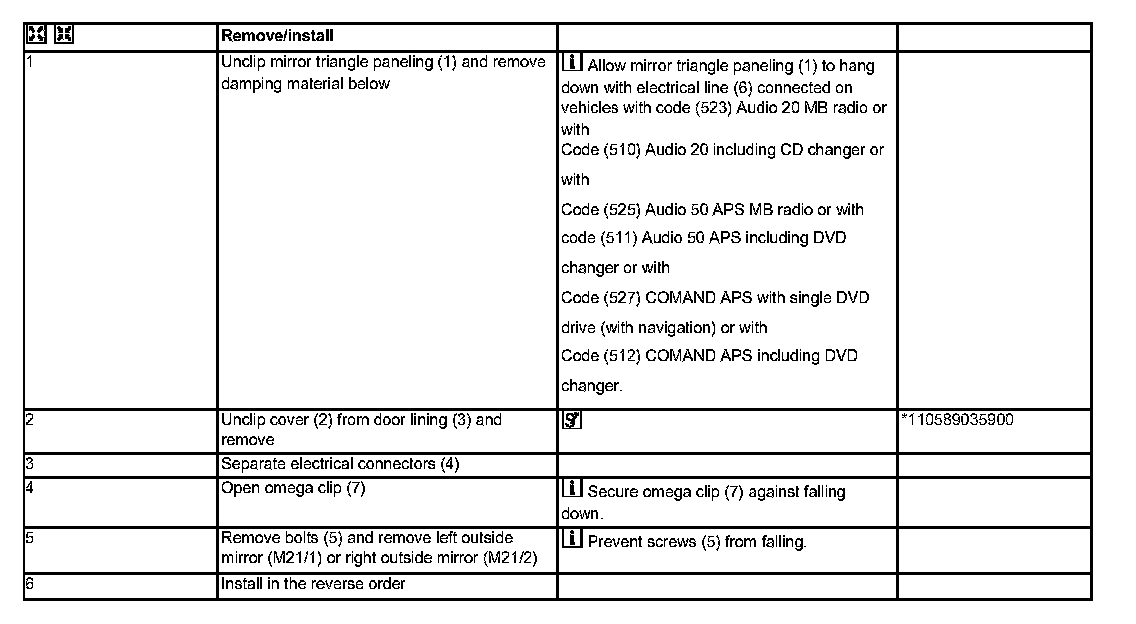

Steps 1 - 6:
Special Tools:
