Power Mirror Motor: Service and Repair
AR88.70-P-9060TX Remove/install Glass Adjustment Drive

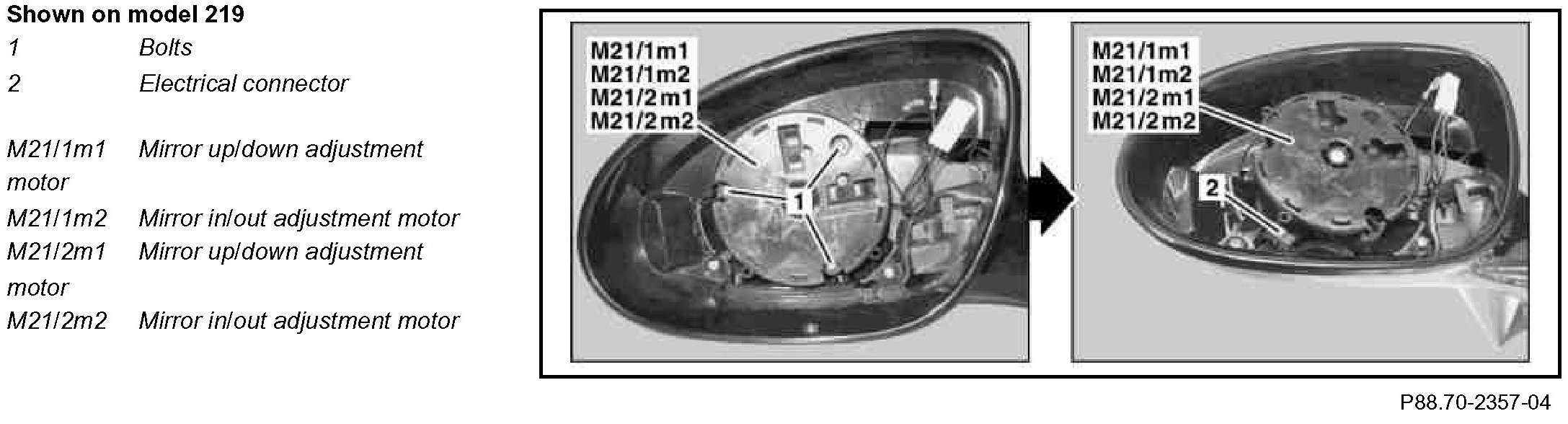

Component Identification:

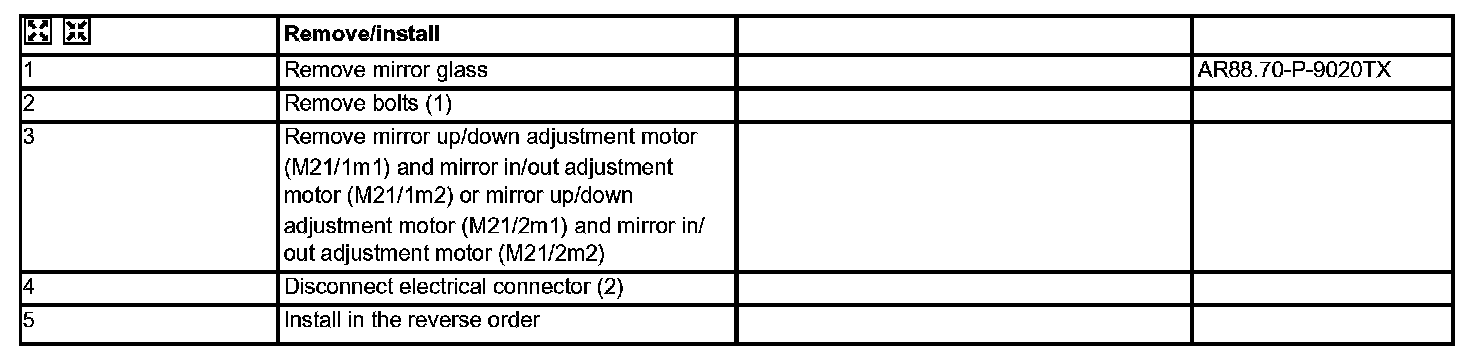

Steps 1-5:
