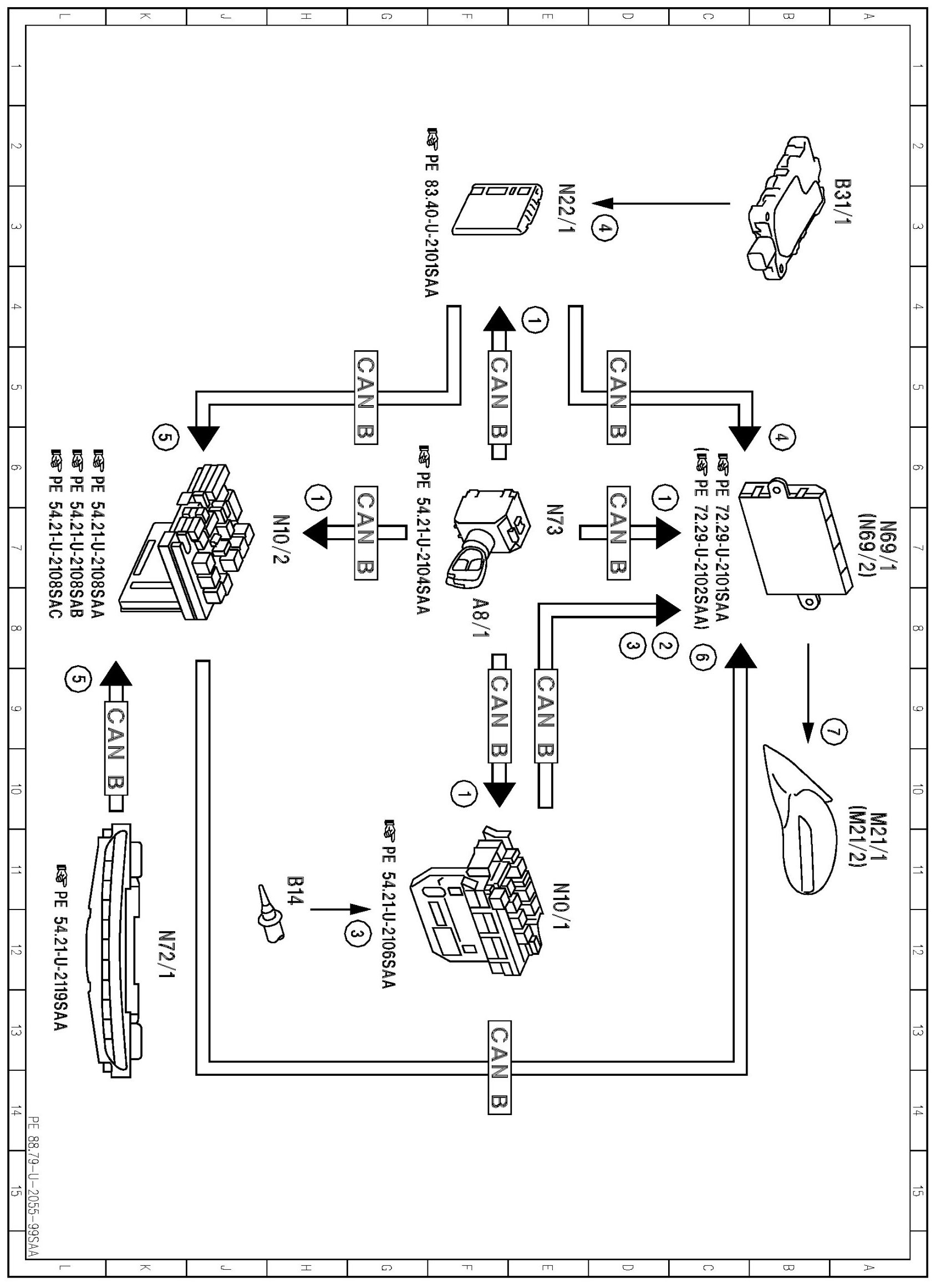

PE88.79-U-2055SAA Electrical Function Diagram For Mirror Heater

PE88.79-U-2055SAA Electrical Function Diagram For Mirror Heater

MODEL 221
- as of Model Year 2009















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
