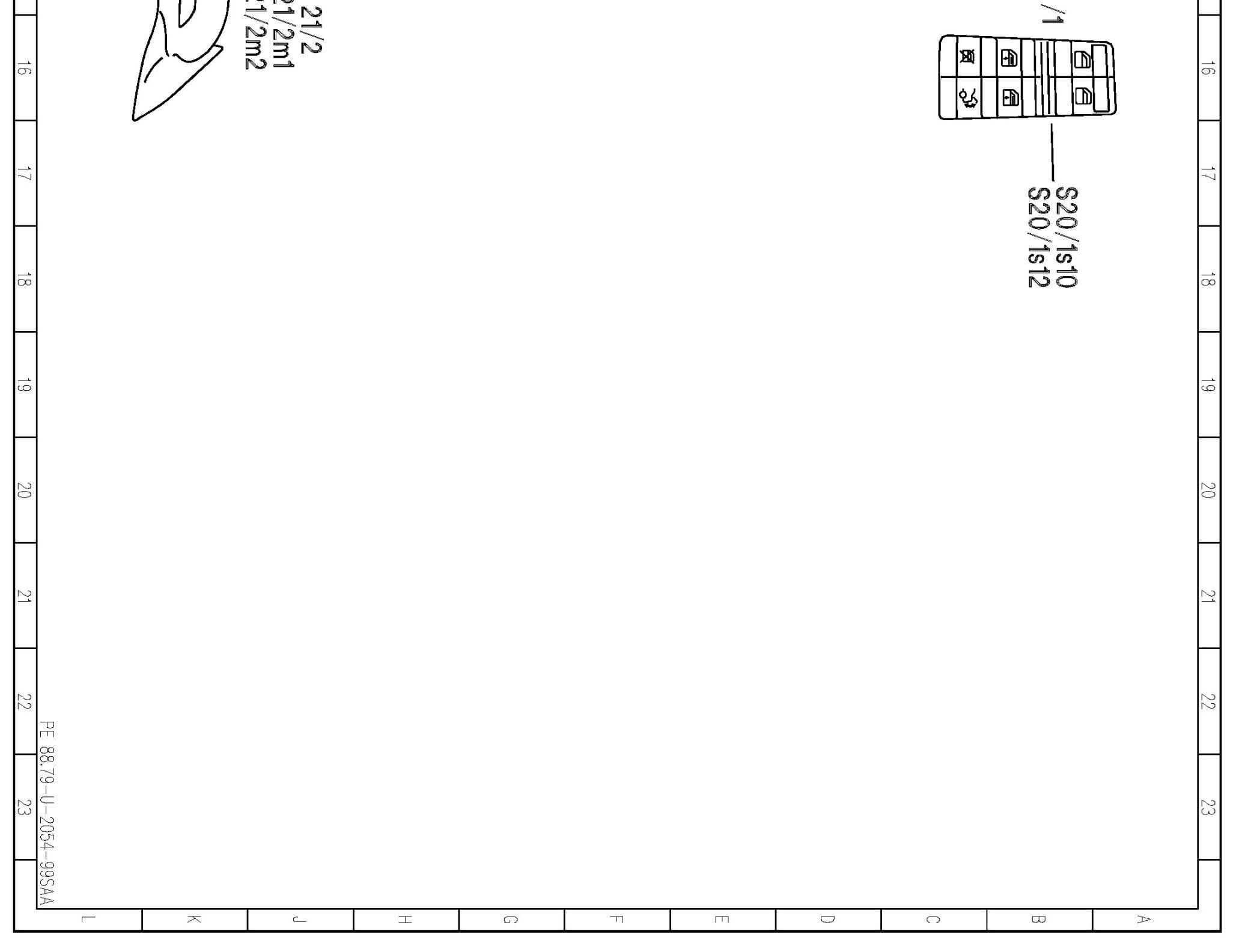

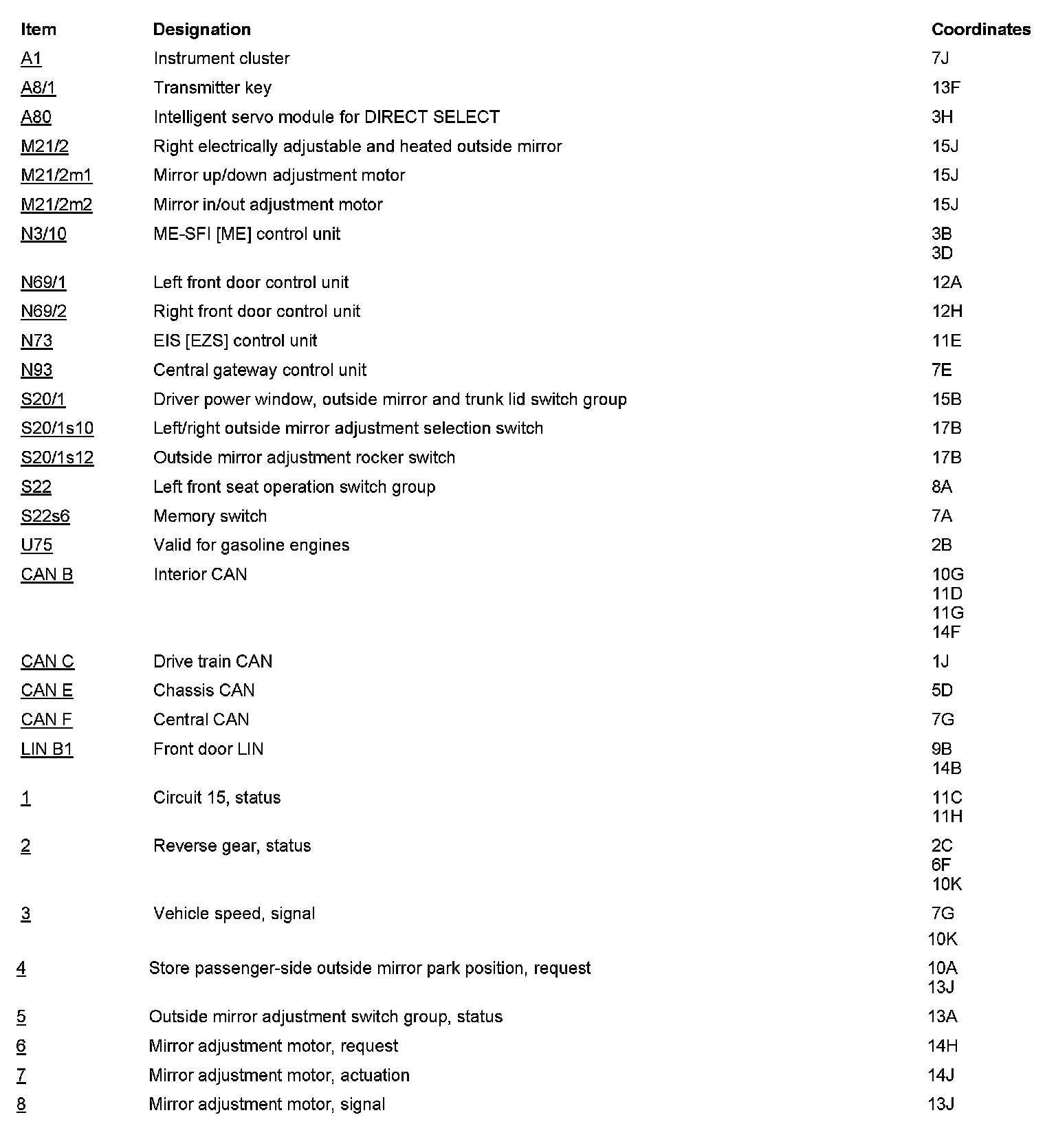

PE88.79-U-2054SAA Electrical Function Schematic For Electric Passenger-Side Outside Mirror Park Position

PE88.79-U-2054SAA Electrical Function Schematic For Electric Passenger-side Outside Mirror Park Position

MODEL 221
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- as of Model Year 2009



















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
