Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Description and Operation >> GF88.79-P-0003-01LE Electric Outside Mirrors, Location of Components

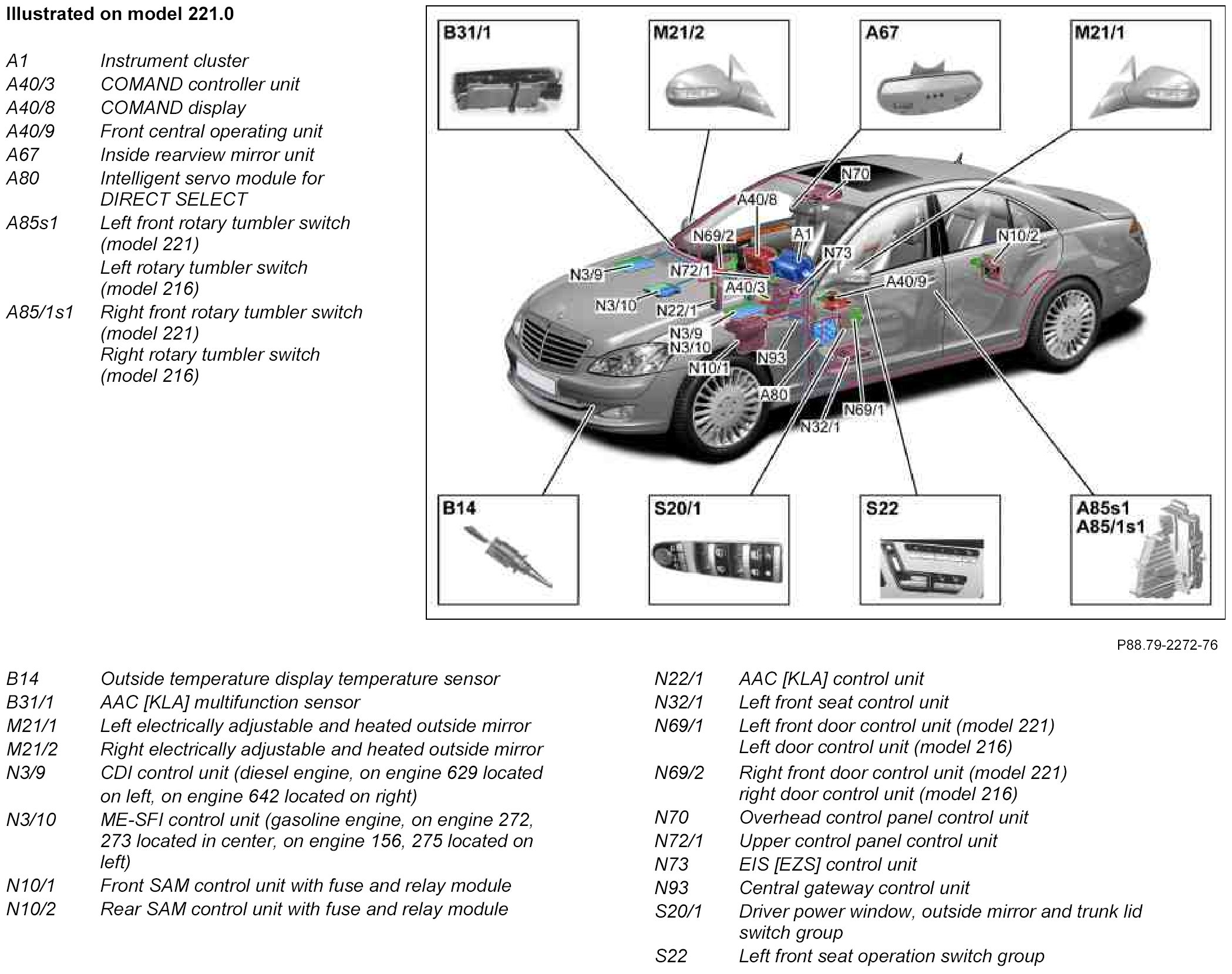

GF88.79-P-0003-01LE Electric Outside Mirrors, Location of Components



GF88.79-P-0003-01LE Electric Outside Mirrors, Location Of Components
- as of model year 09


Component Identification:
