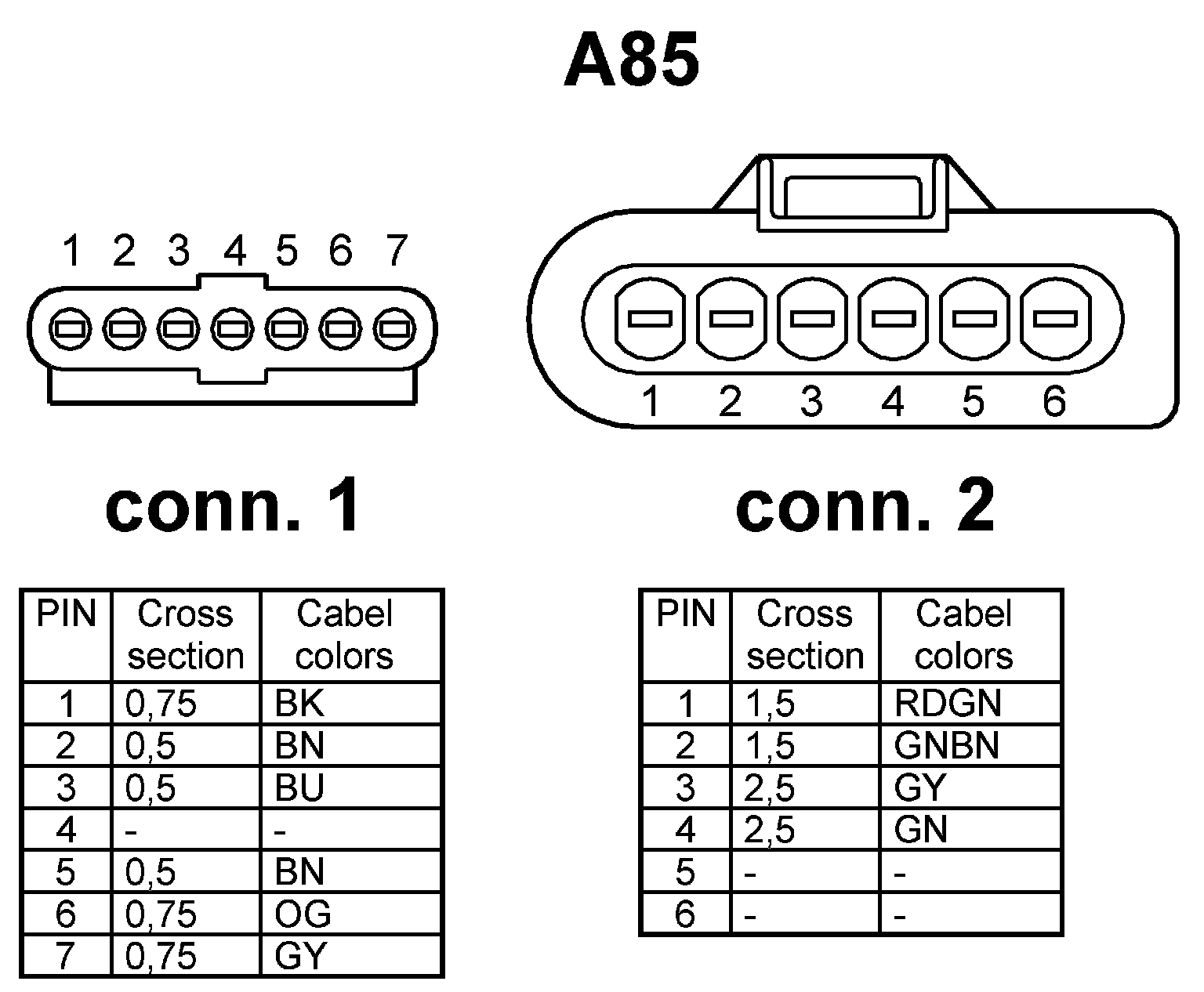

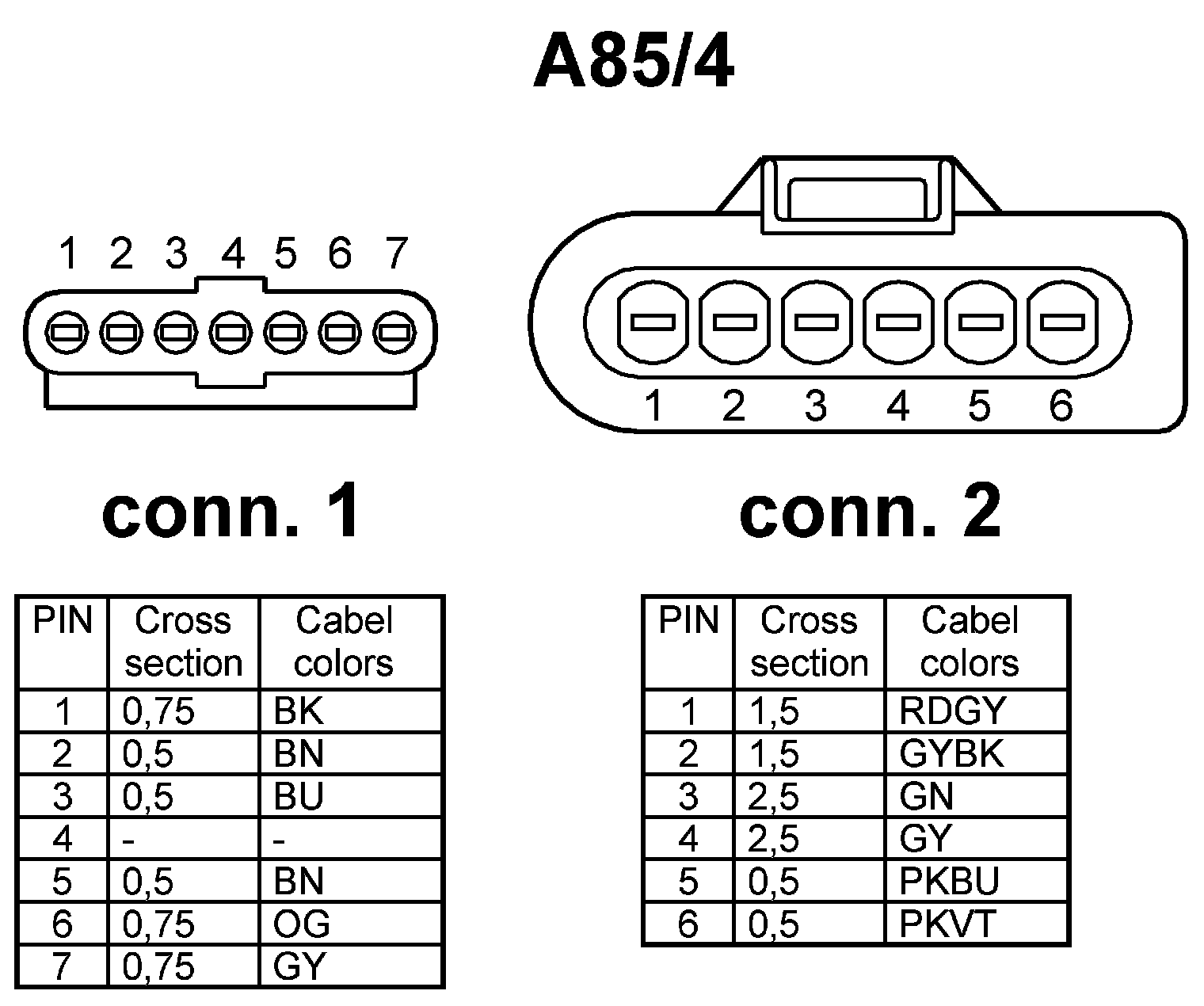

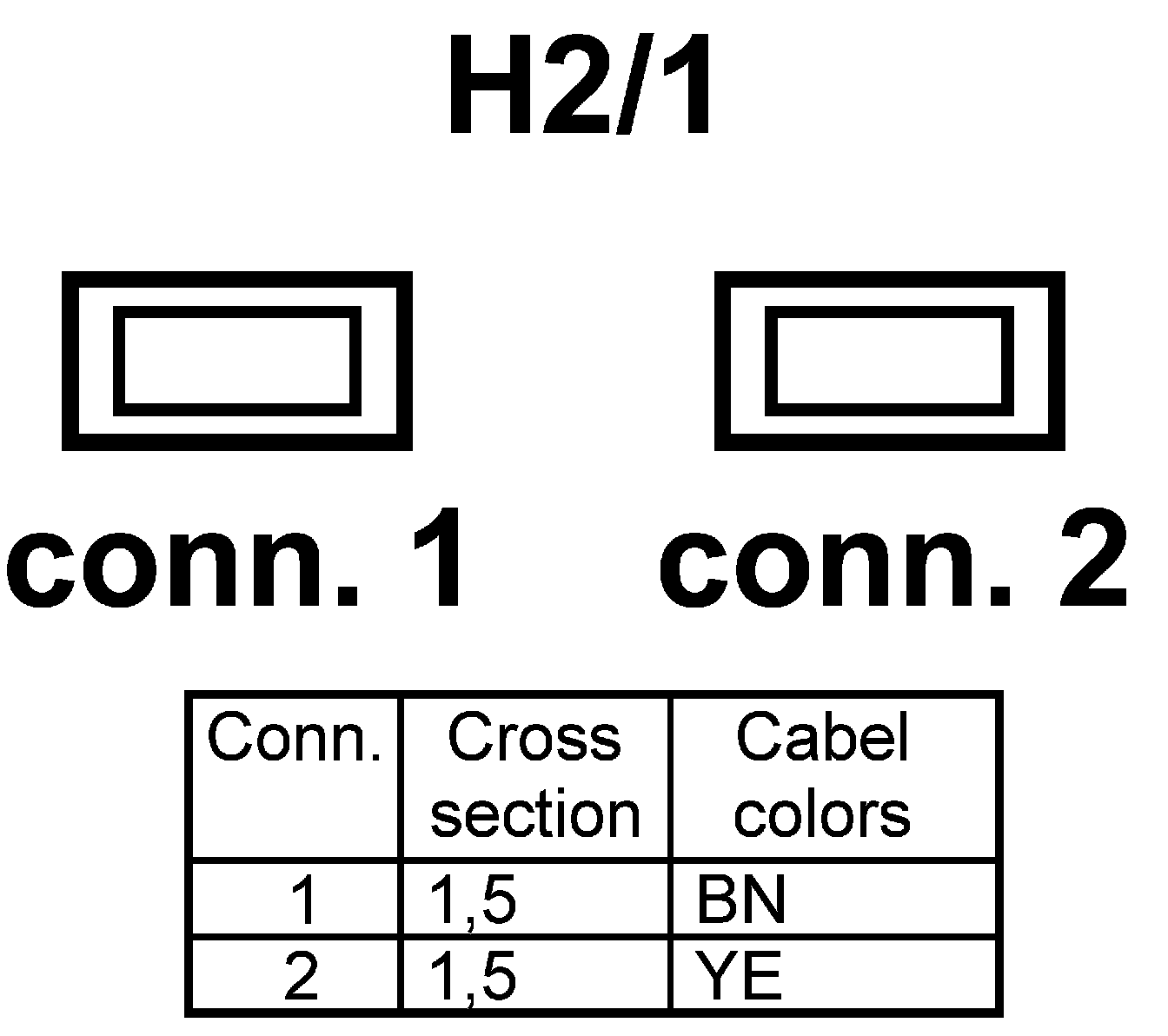

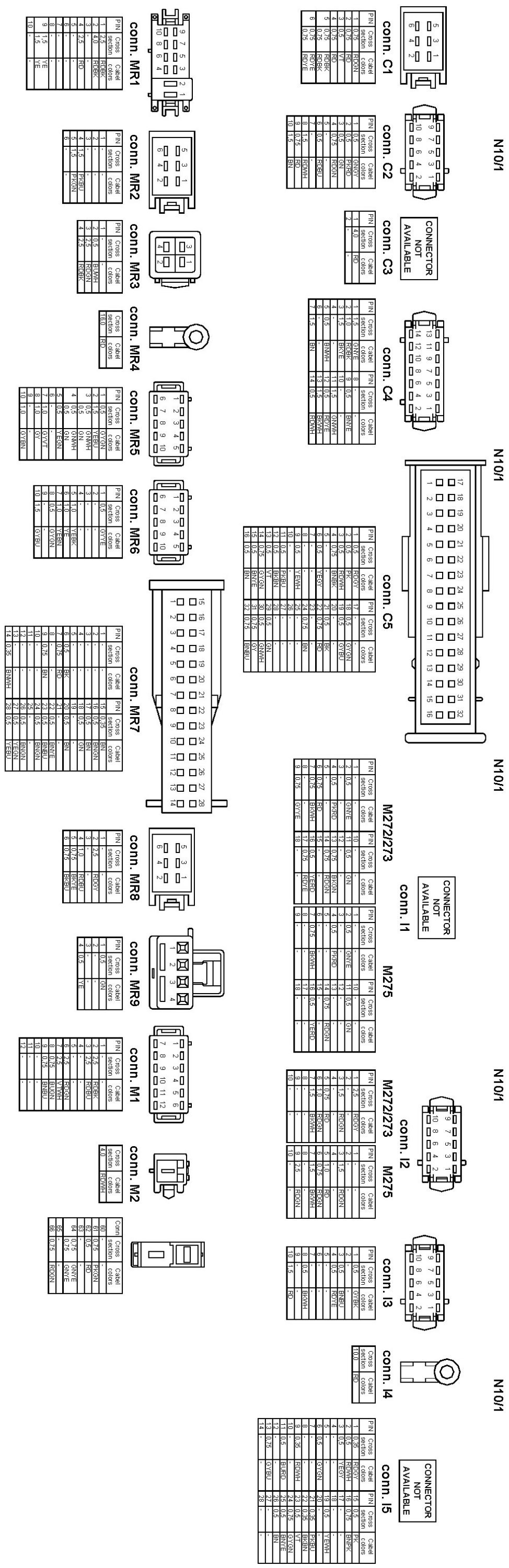

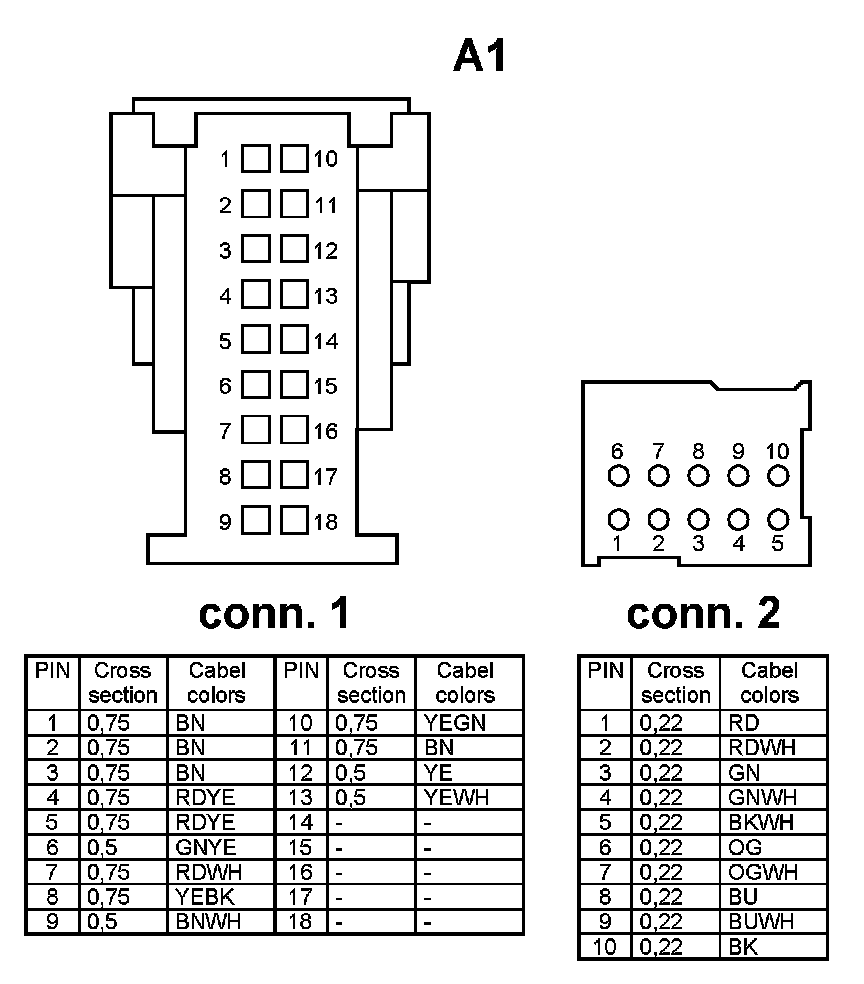

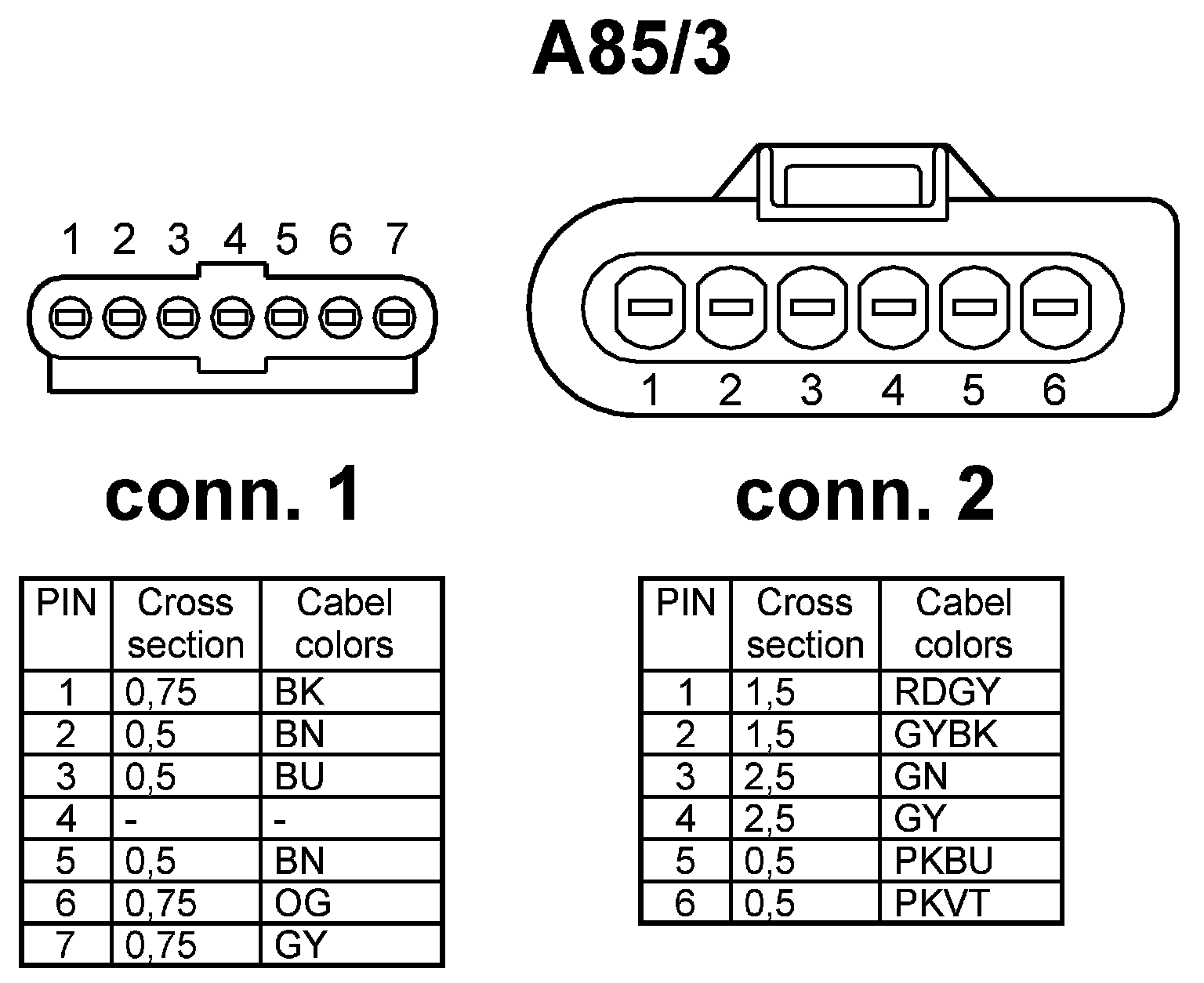

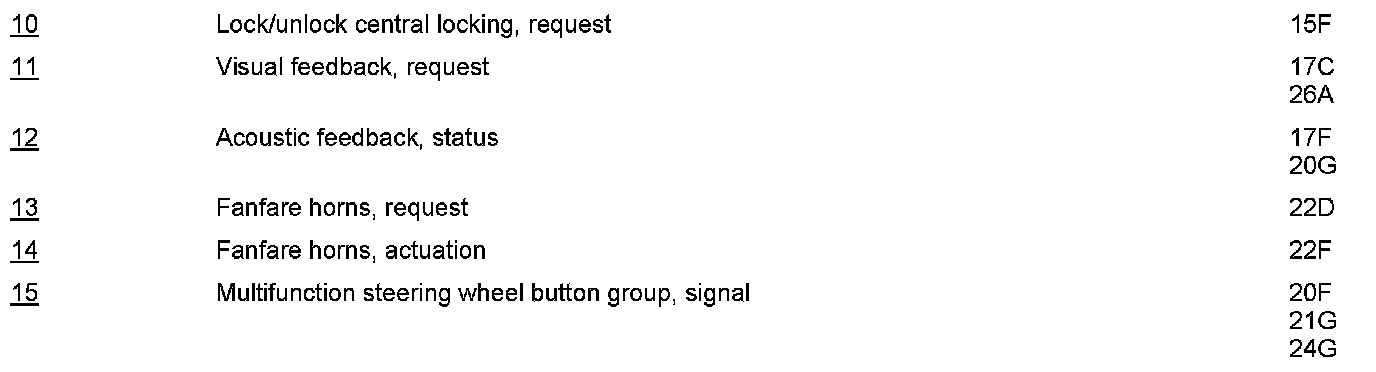

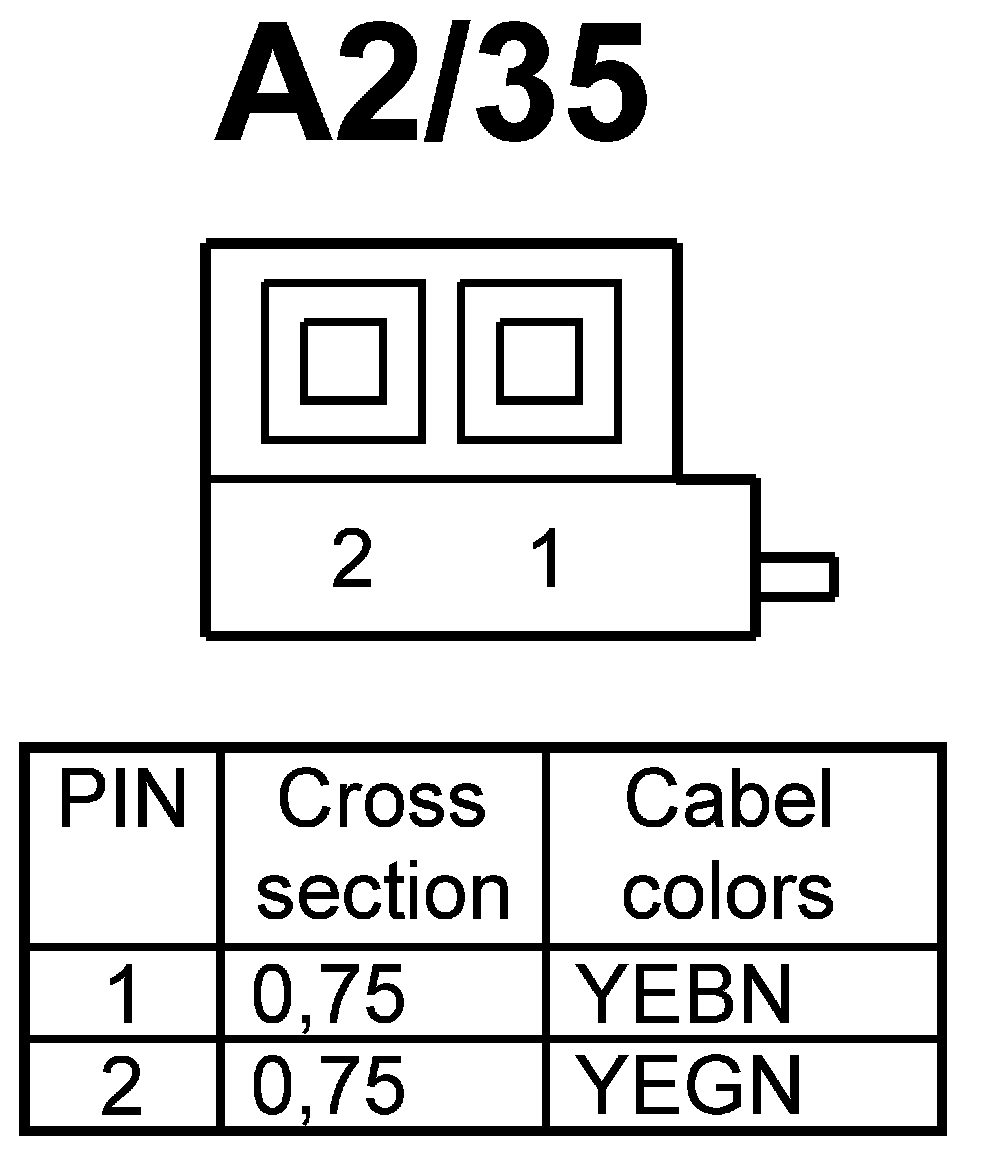

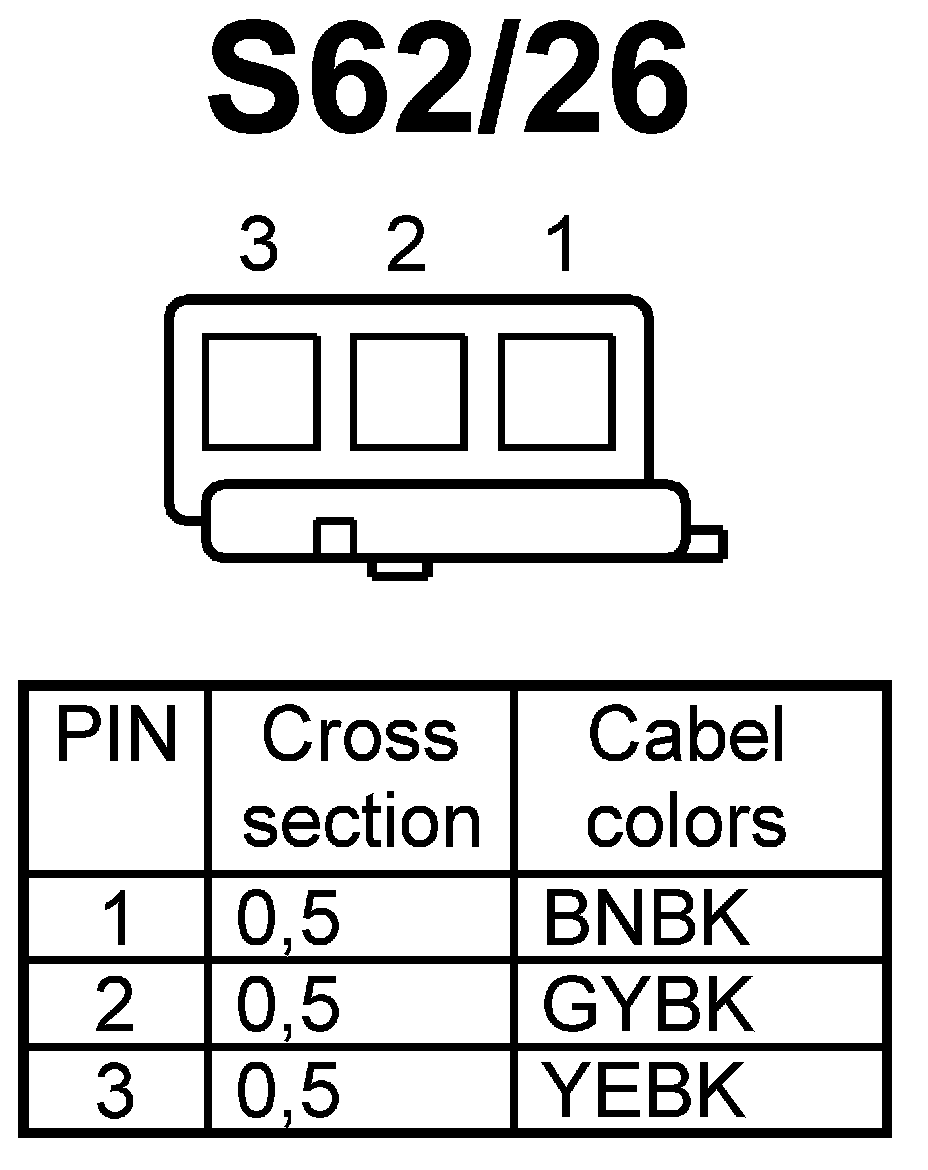

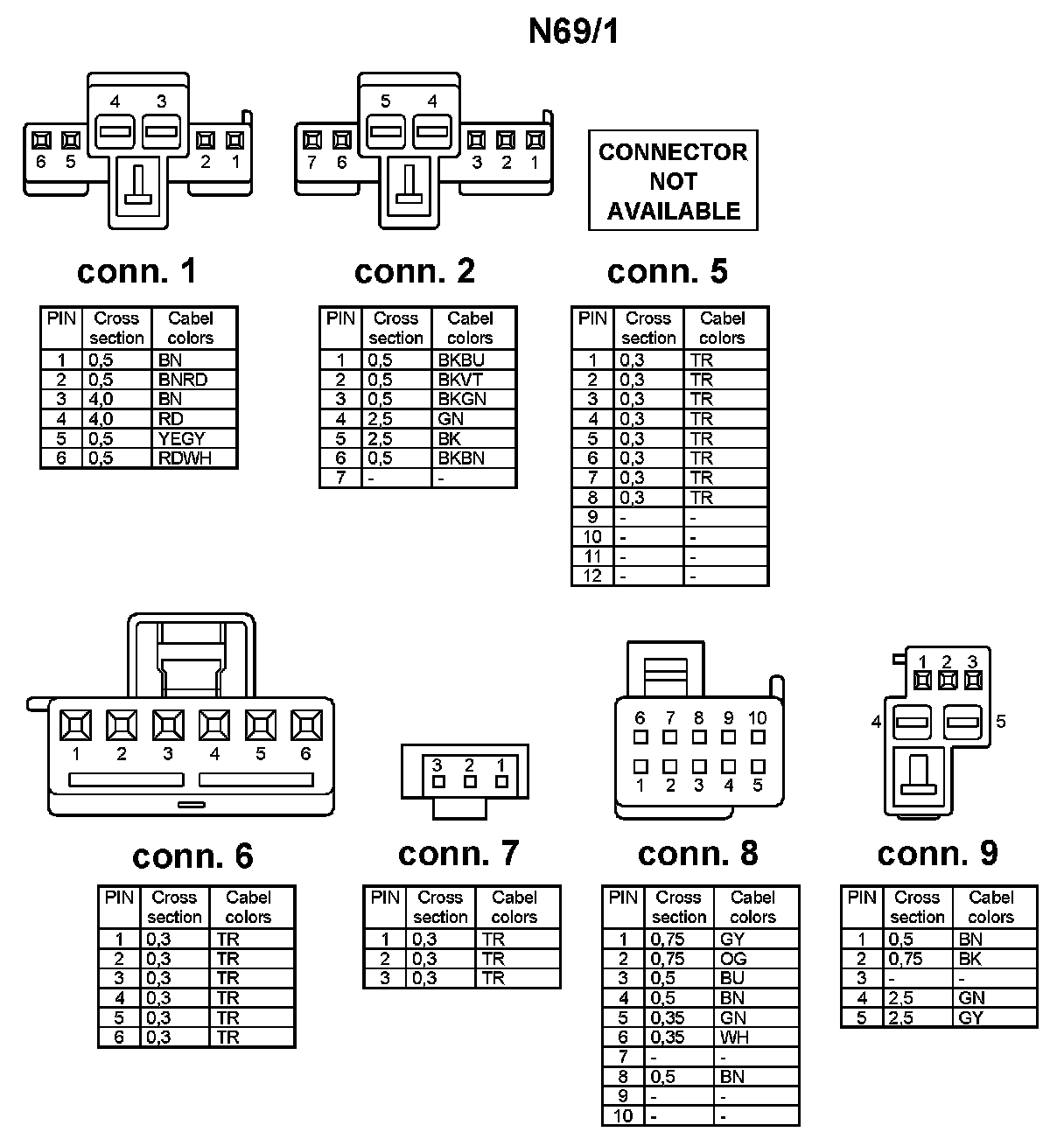

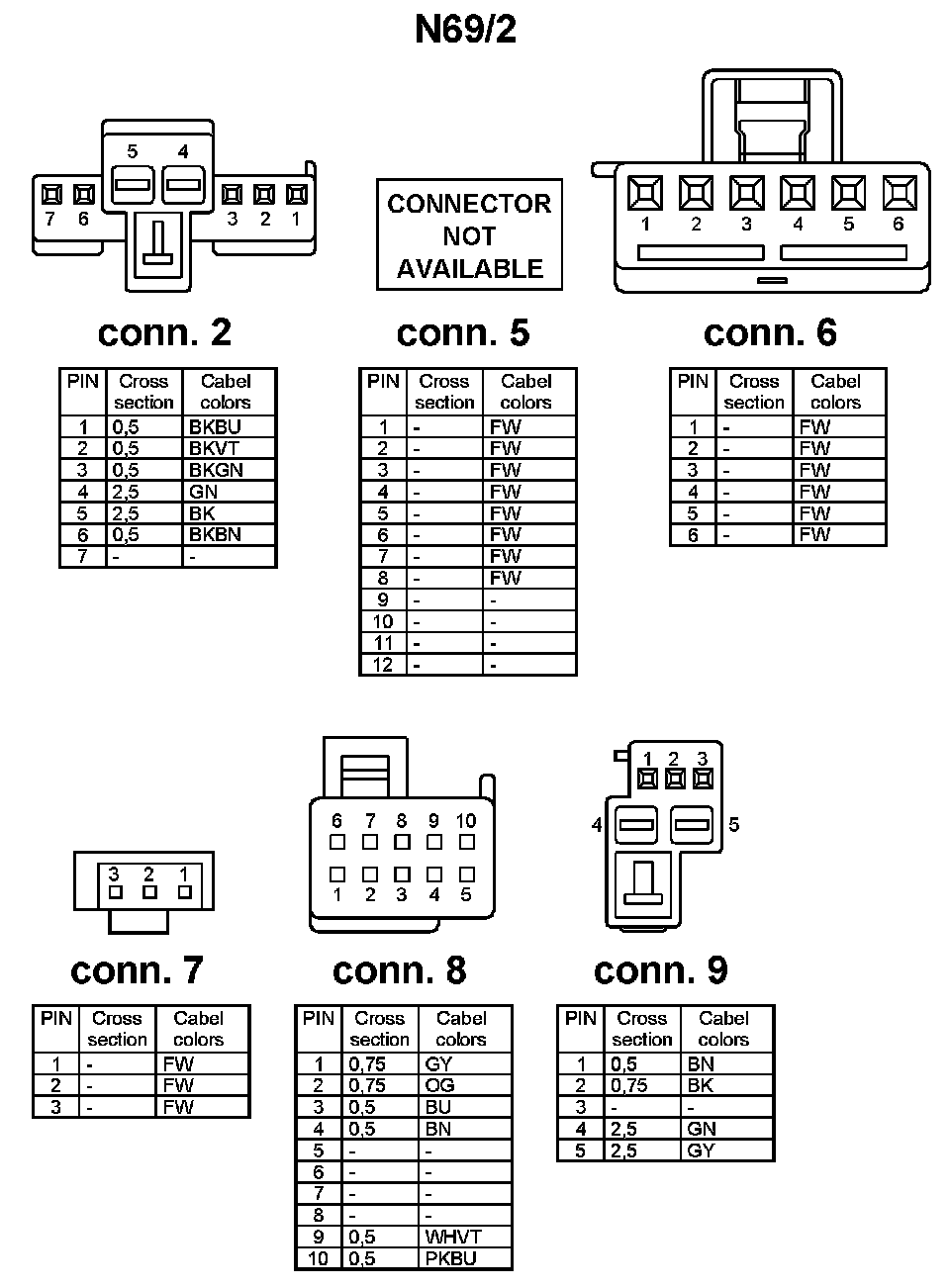

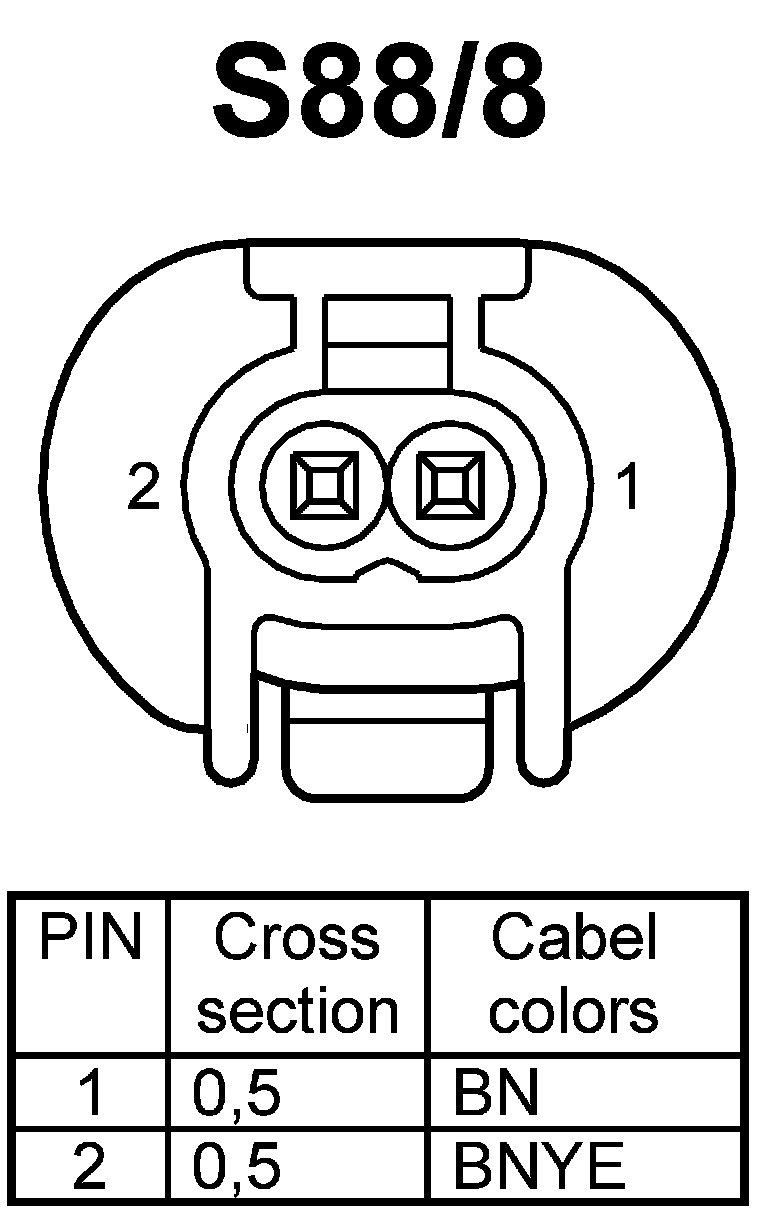

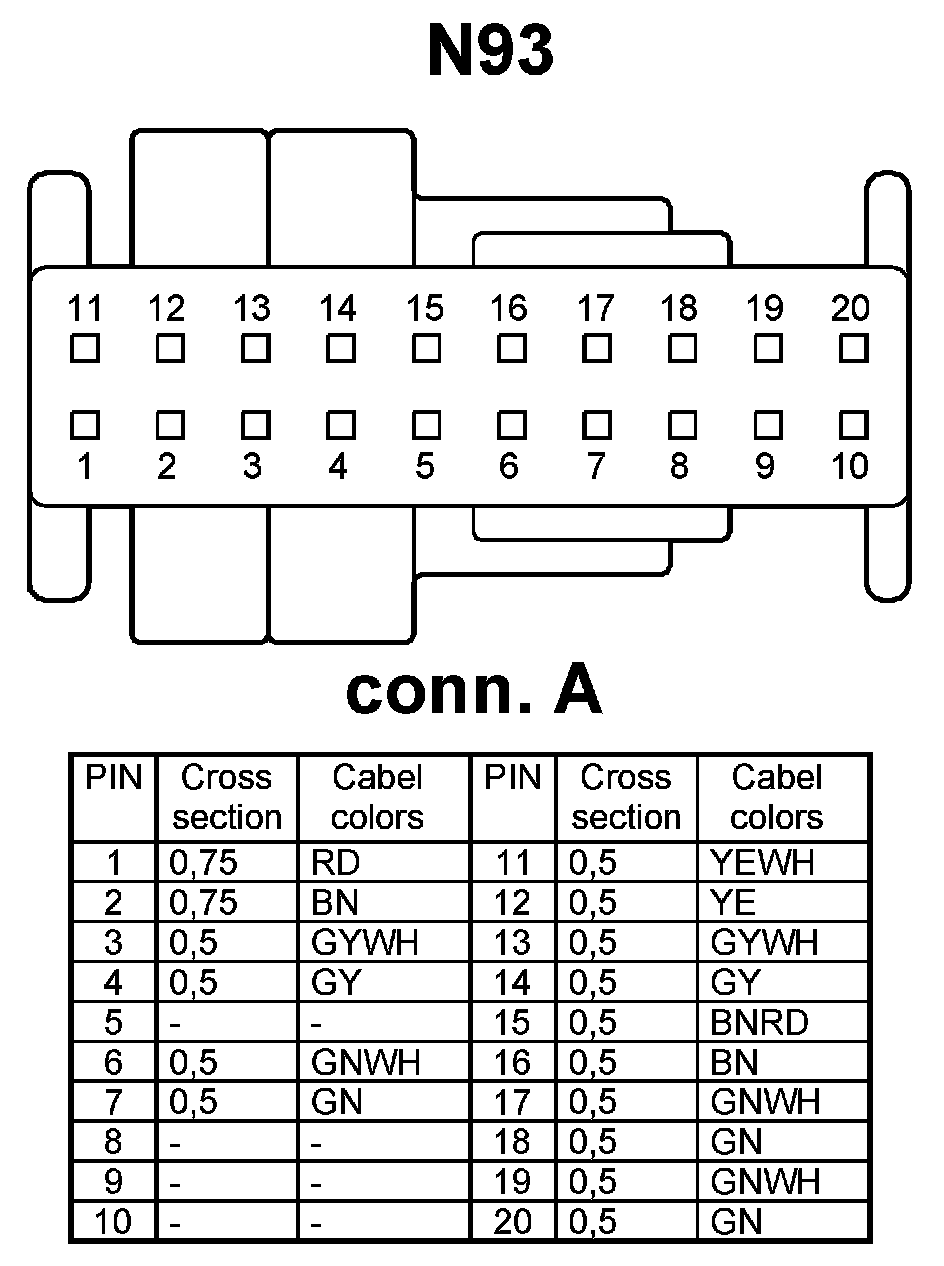

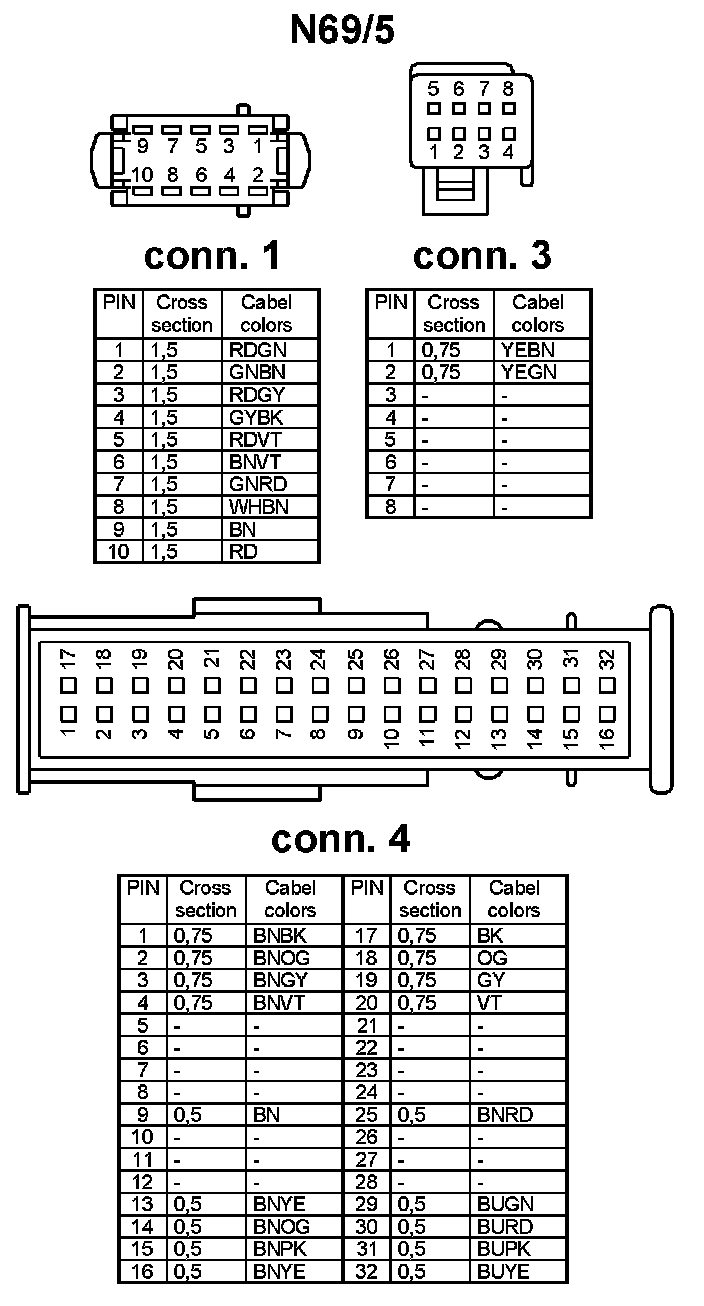

PE80.61-U-2051SAA Electrical Function Schematic For KEYLESS-GO Locking/Unlocking Function

PE80.61-U-2051SAA Electrical Function Schematic For KEYLESS-GO Locking/Unlocking Function

MODEL 221
- with CODE (889) Keyless Go
- as of Model Year 2009























































































































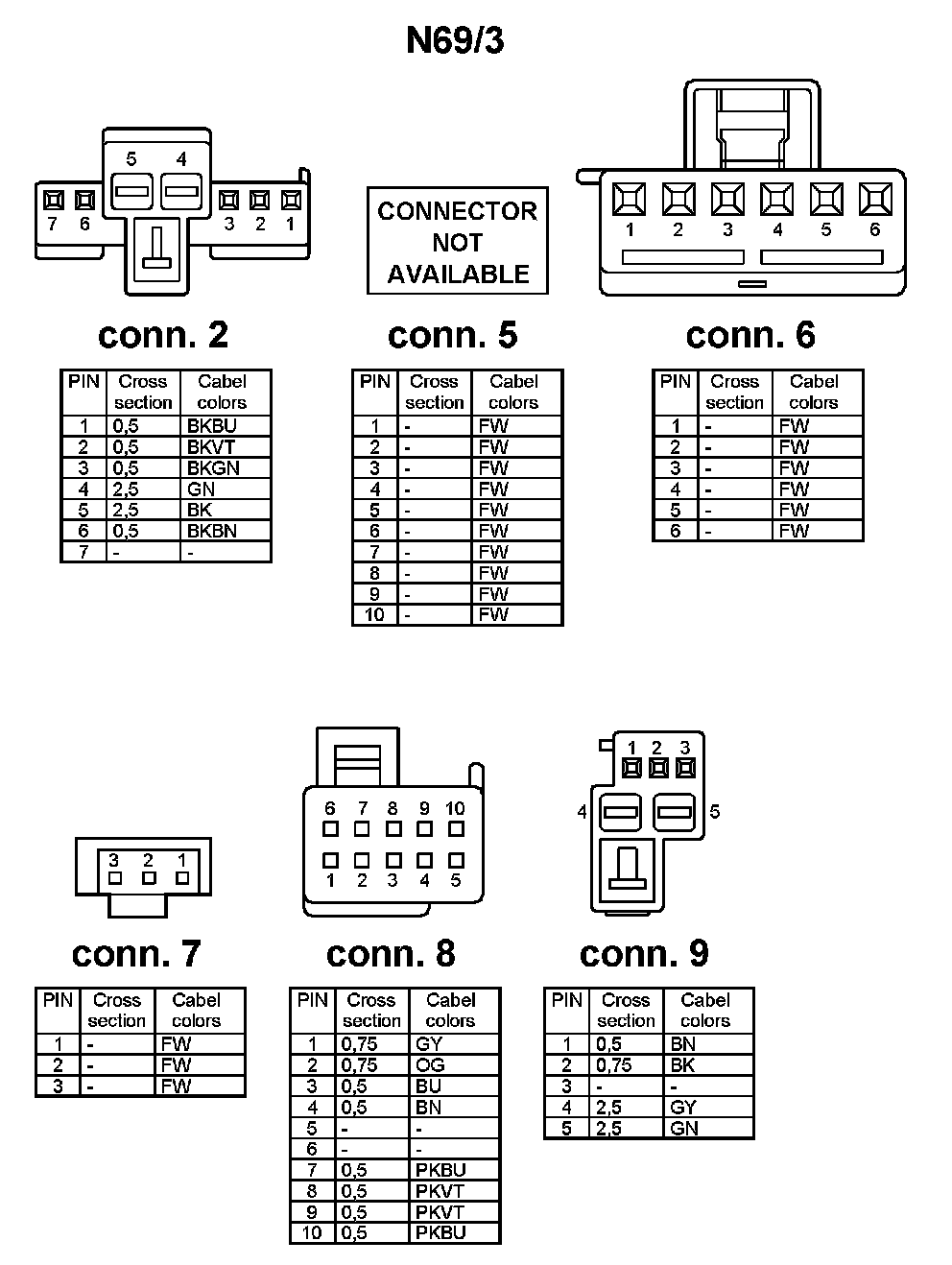

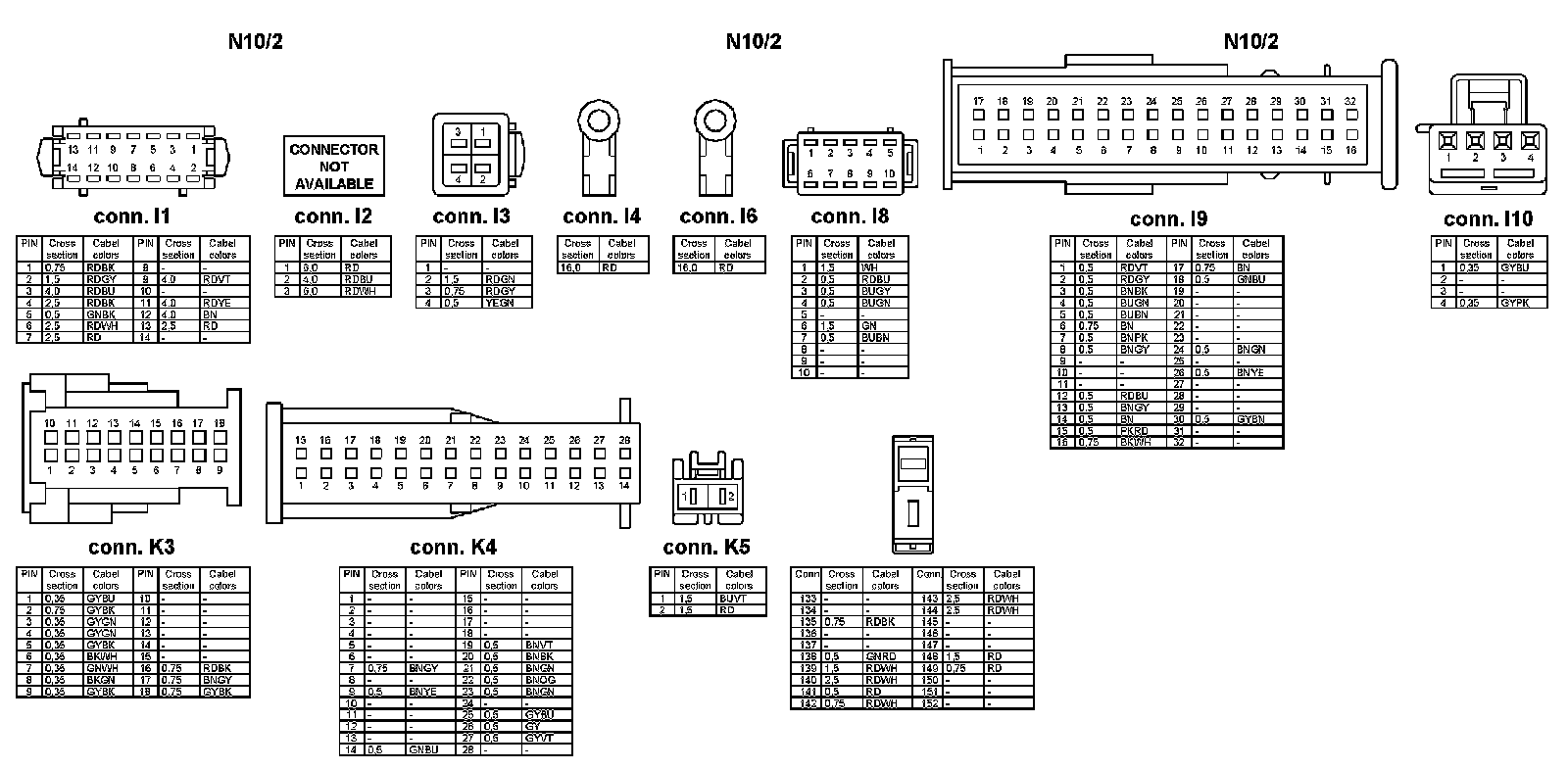

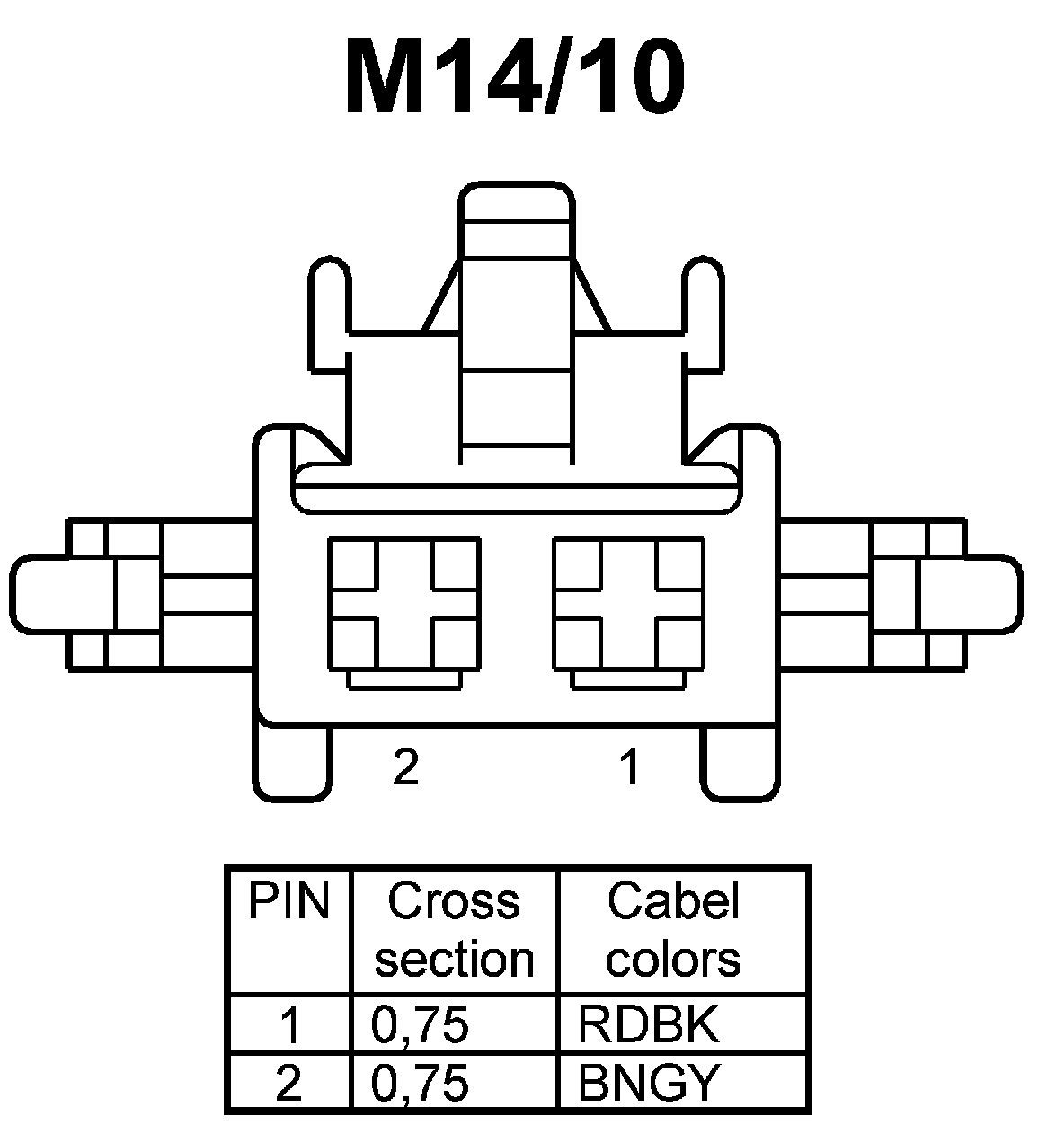

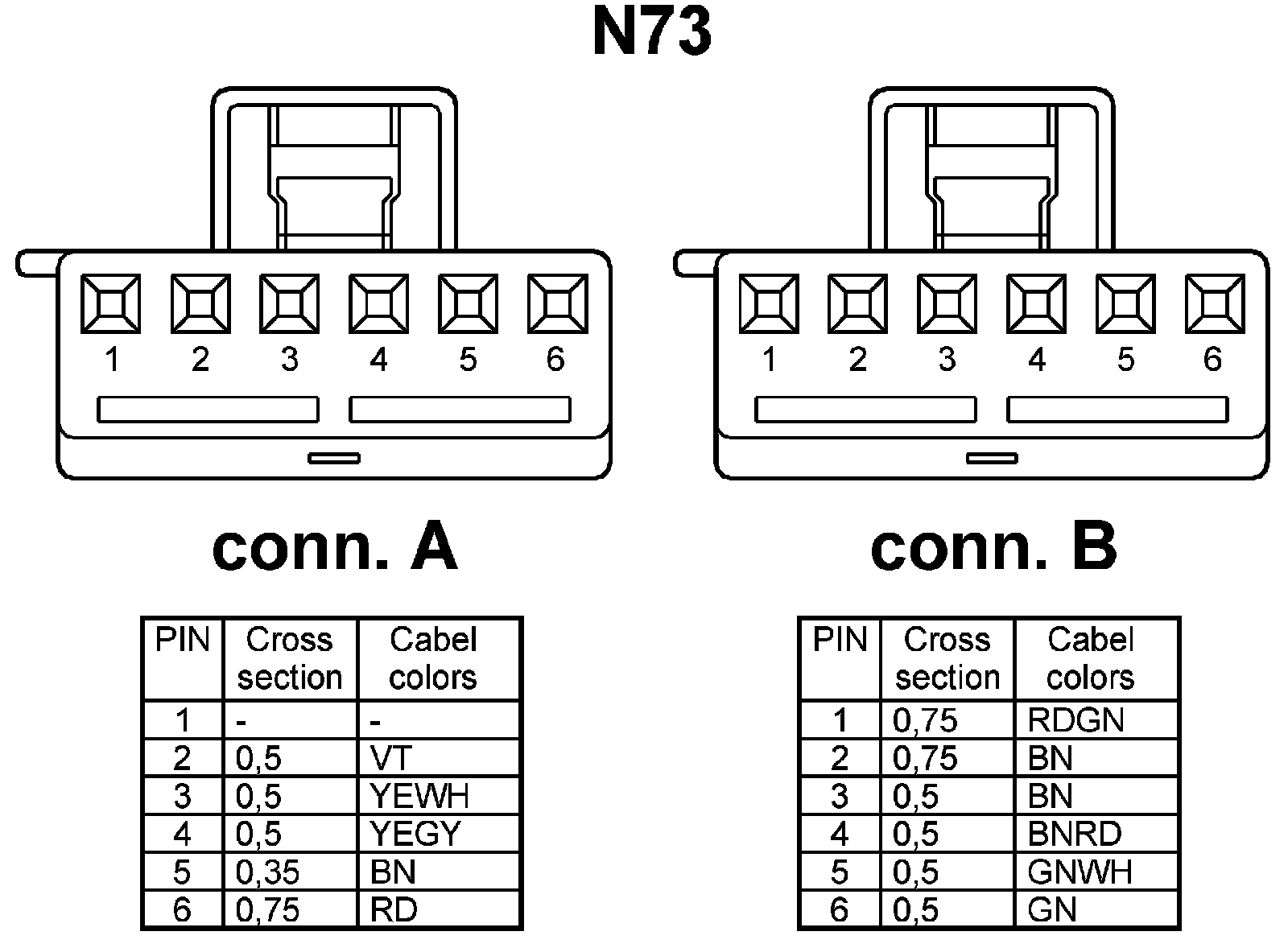

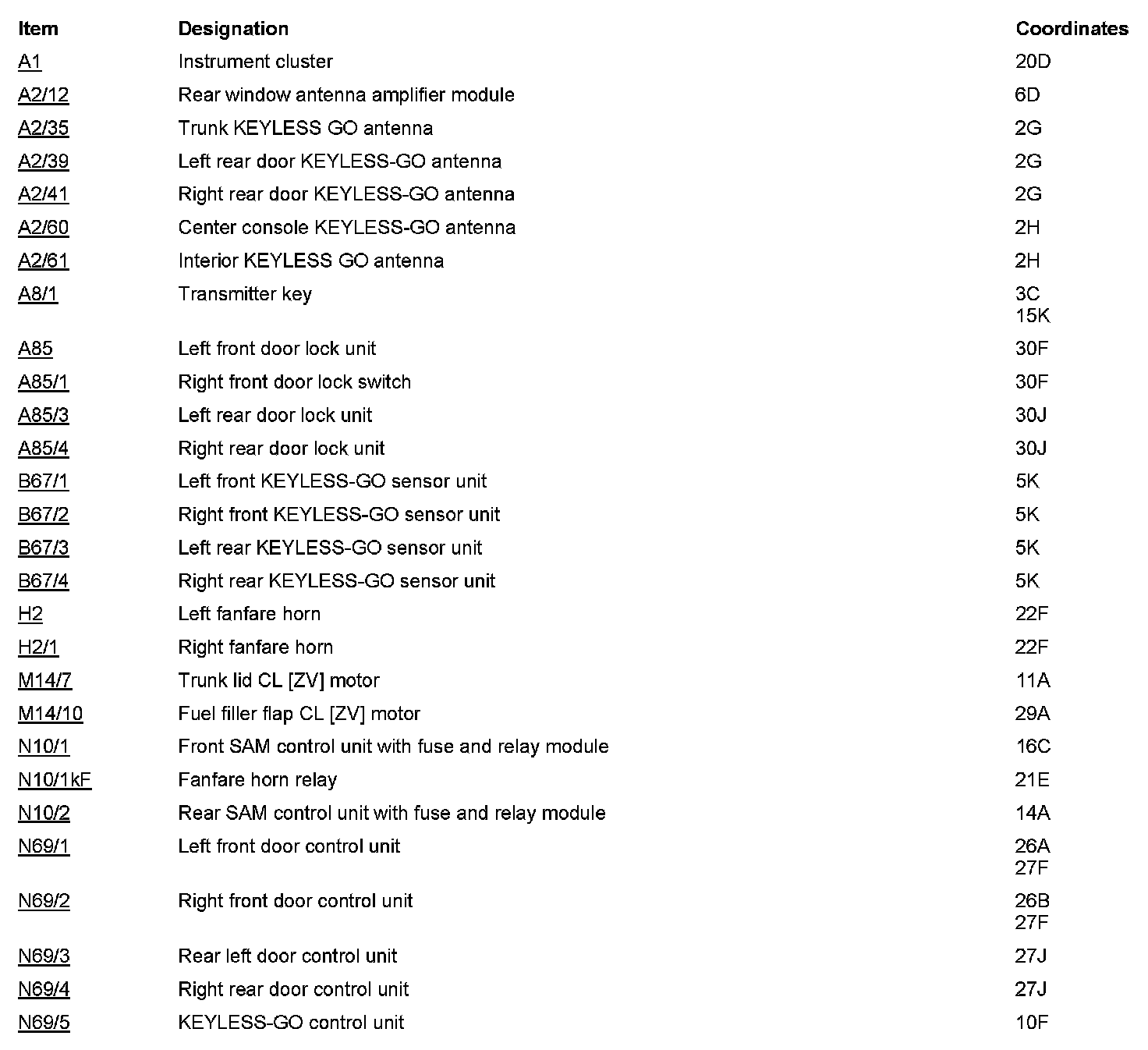

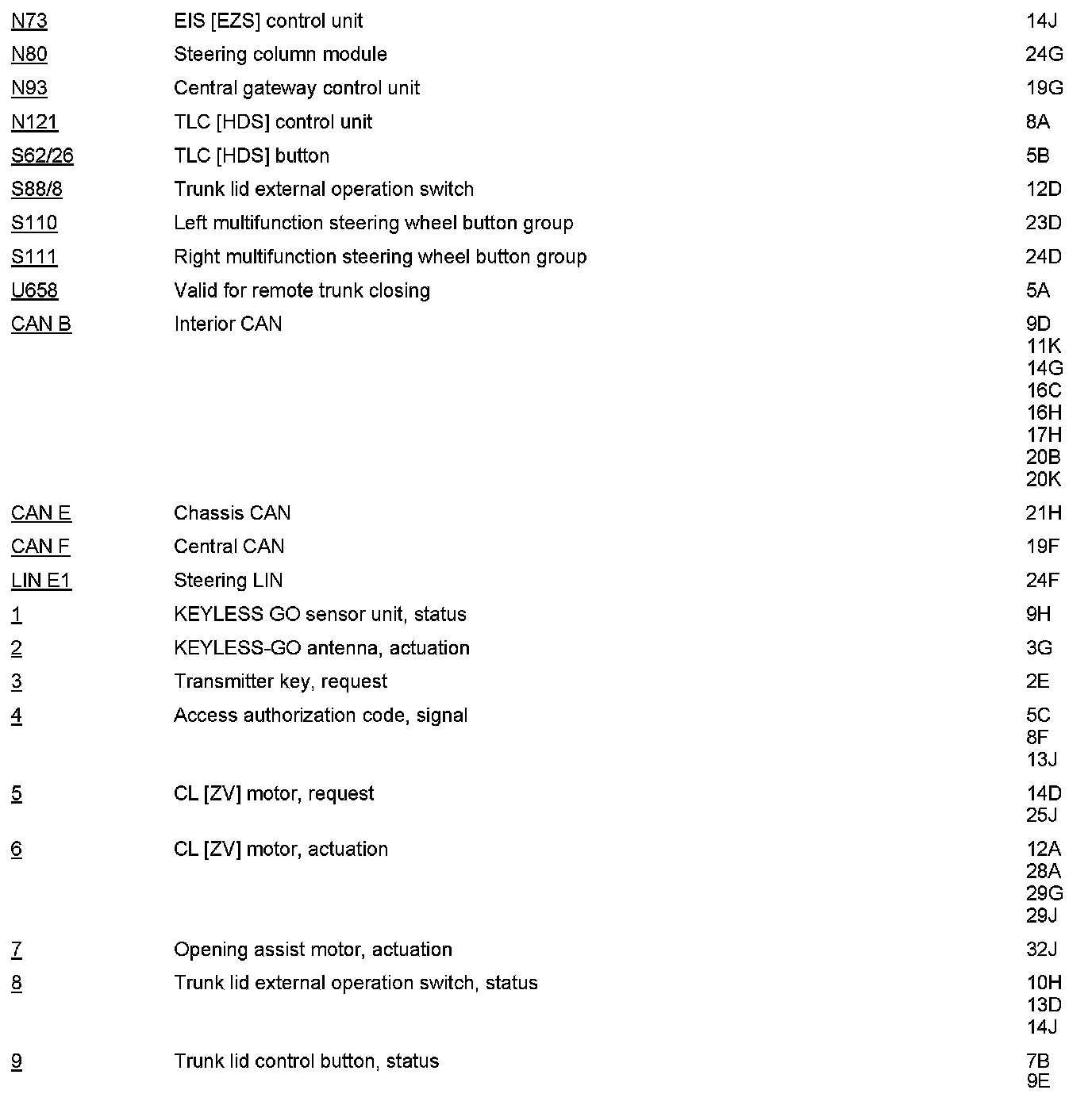

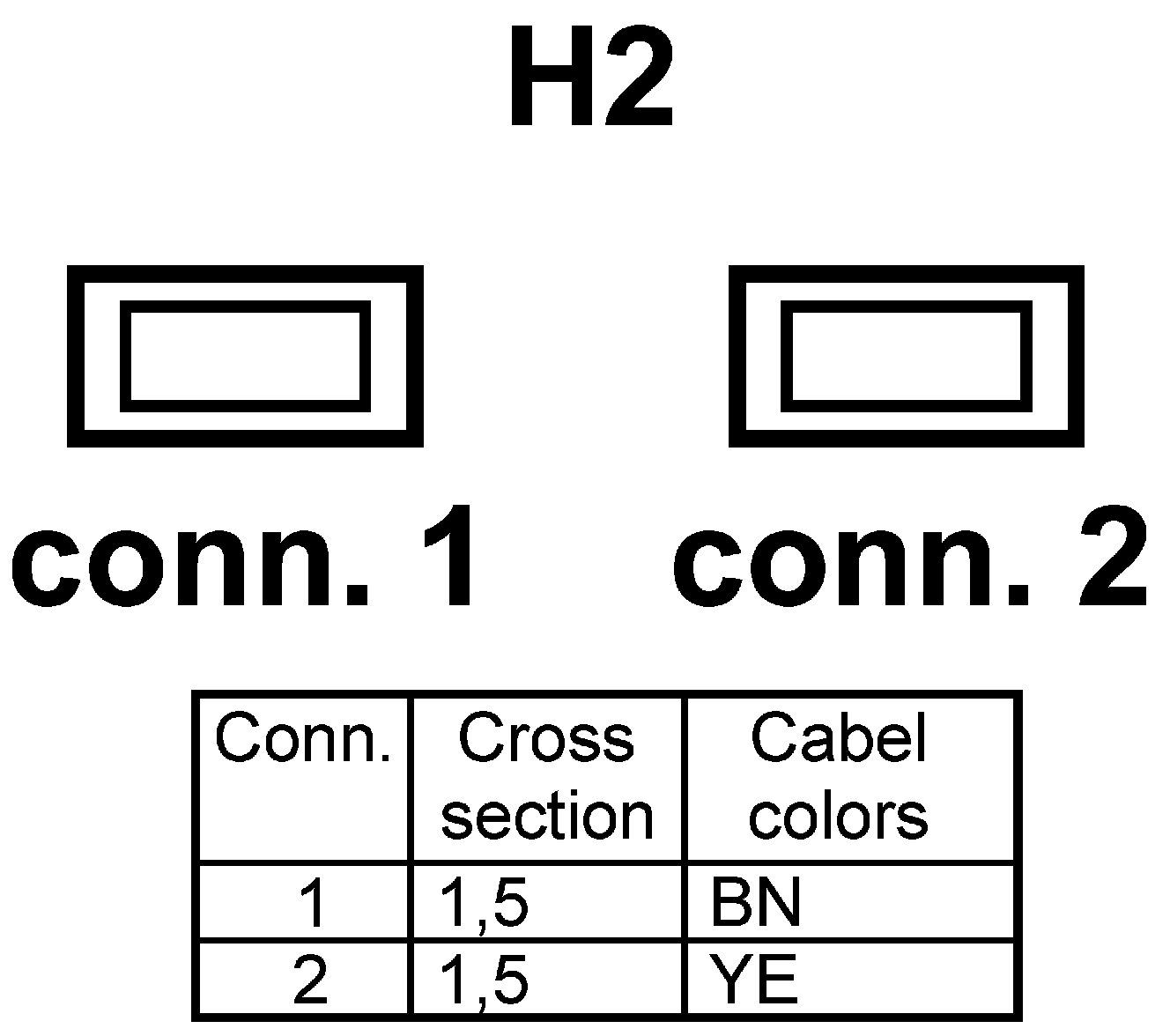

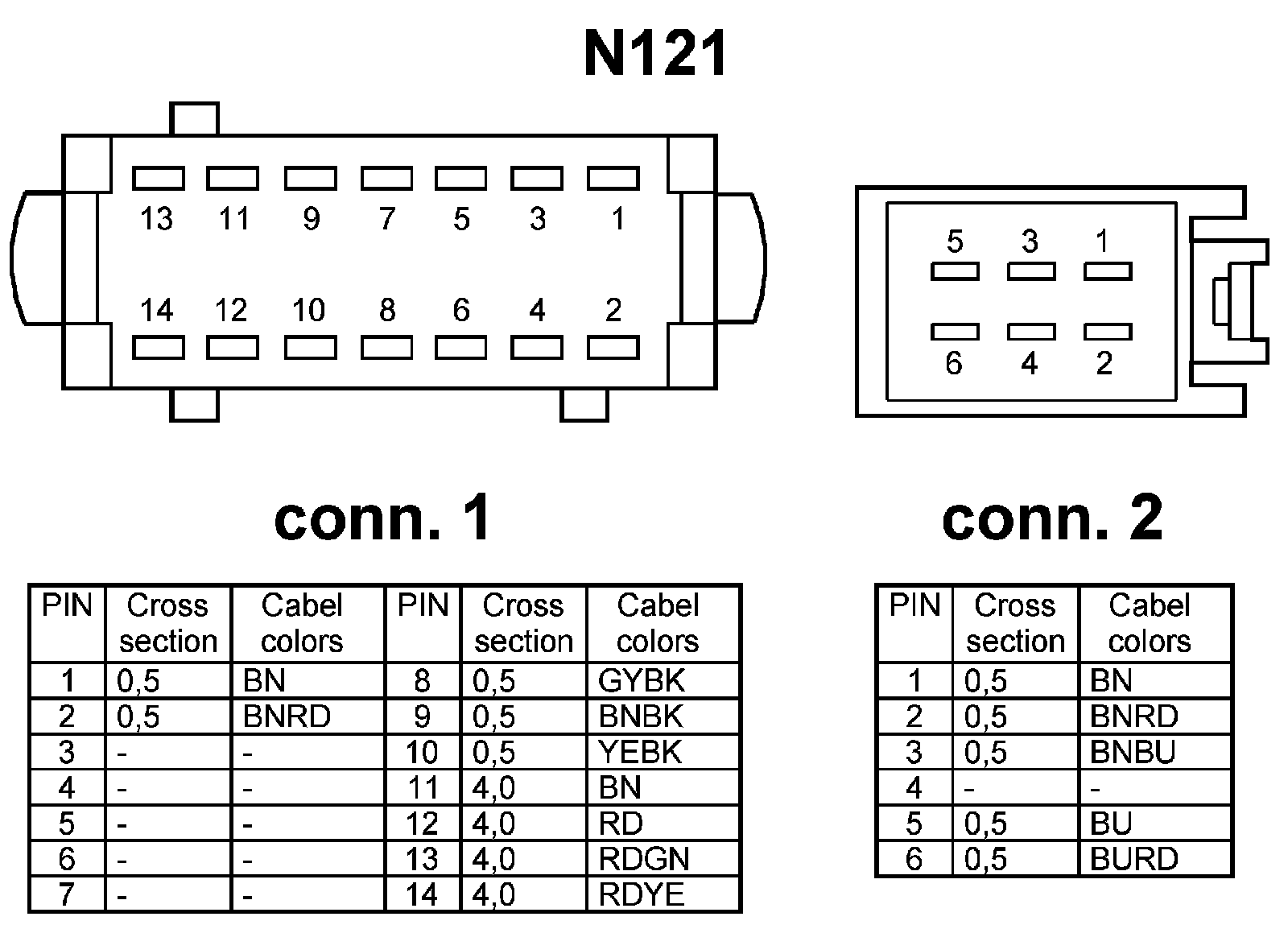

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
