AR68.30-P-4100SXS Remove/Install Door Sill Molding



AR68.30-P-4100SXS Remove/Install Door Sill Molding
- with CODE (Z07) Top protection

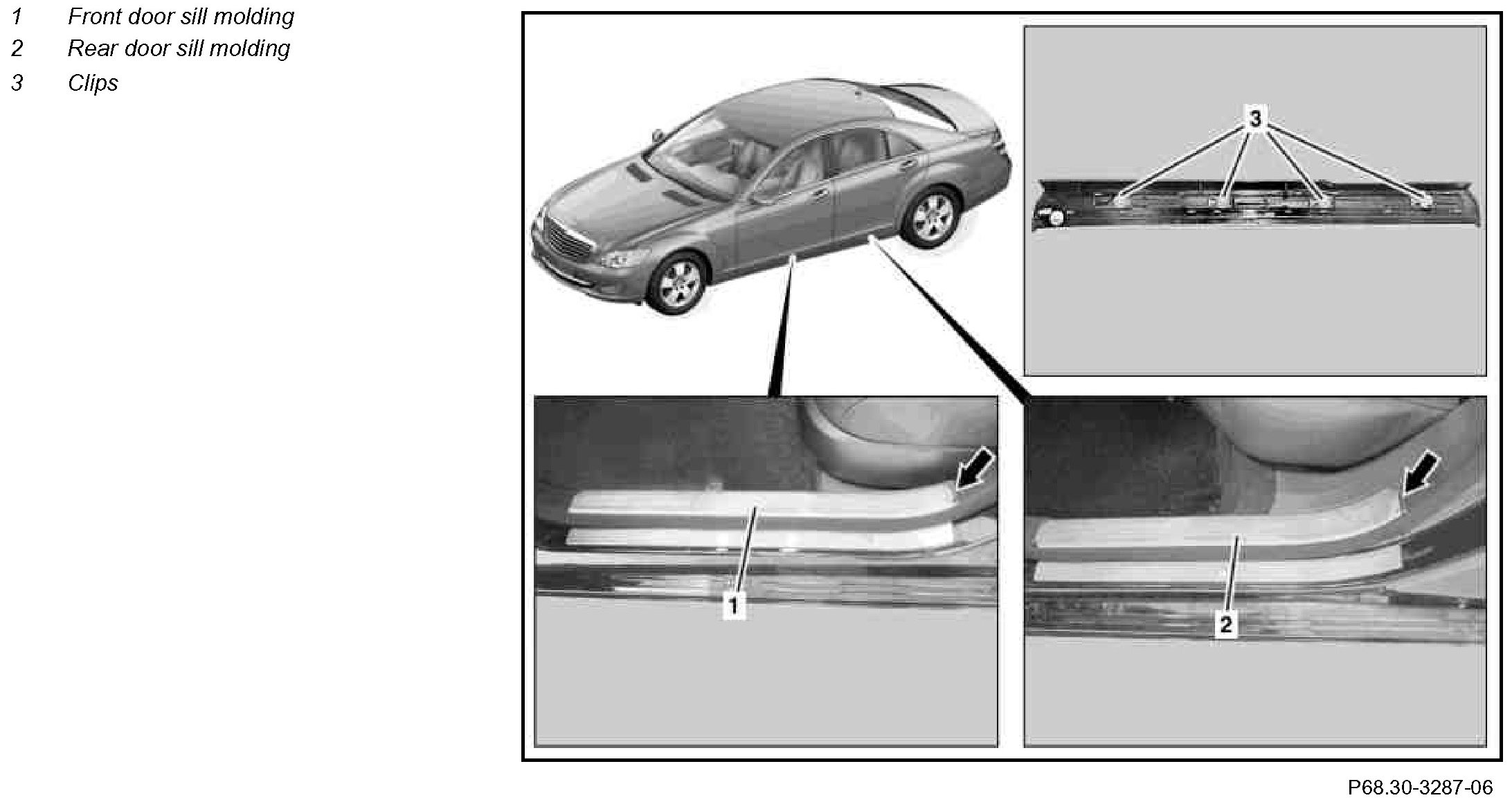

Component Identification:

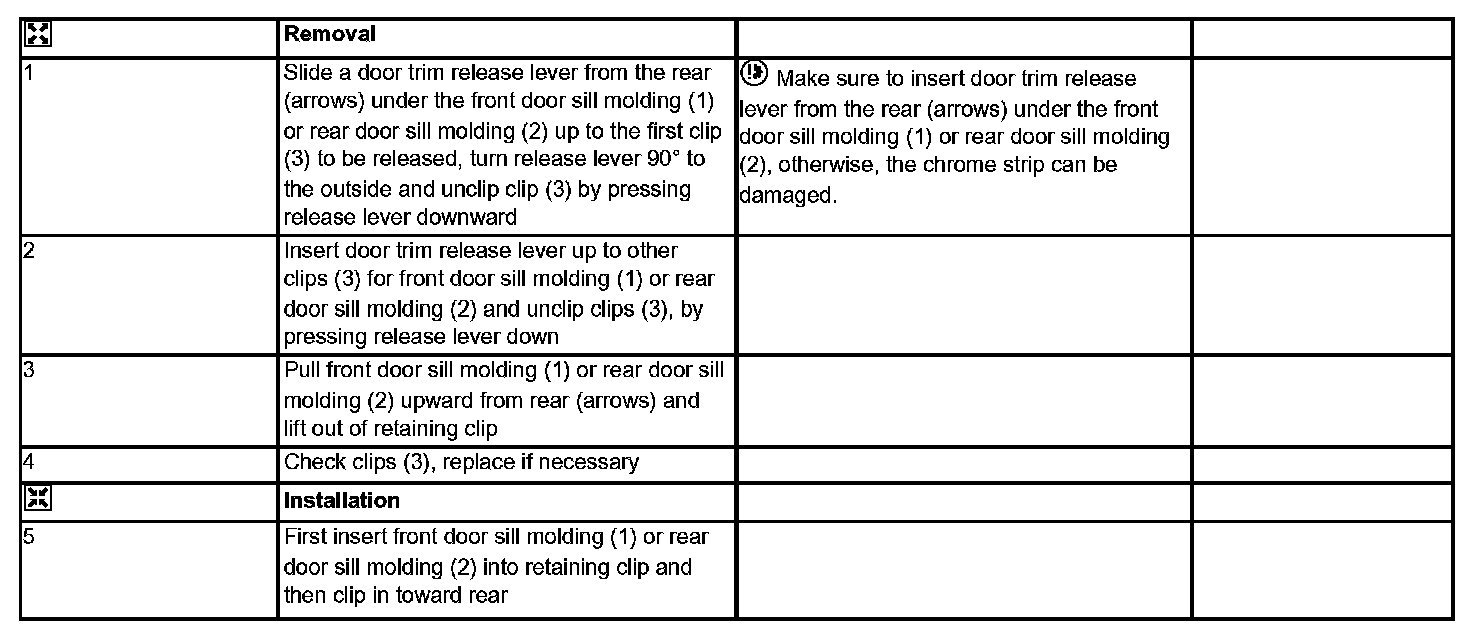

Steps 1 - 5:
