AR68.30-P-4305-14SX Install PTS Warning Indicator/interior Protection Wiring Harness In Headliner

AR68.30-P-4305-14SX Install PTS Warning Indicator/interior Protection Wiring Harness In Headliner
- with CODE (882) Interior monitoring (with ATA [EDW] only)
- with CODE (220) Parktronic system (PTS)

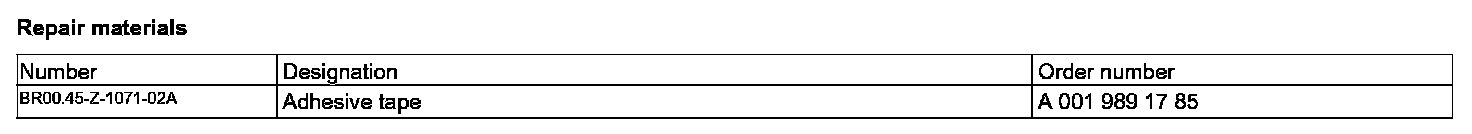

Repair Materials:

1. Route PTS warning indicator/interior protection wiring harness (4) along recess starting at tieout (arrow).
The headliner (1) has a recess for installing the wiring harness.

2. Glue PTS warning indicator/interior protection wiring harness (4) to headliner (1) with approx. 10 cm long strips of adhesive tape as illustrated.
The strips of adhesive tape should not be glued beyond the dotted line on the headliner (1), otherwise the function of the right windowbag can be influenced. Press on strips of adhesive tape firmly, otherwise PTS warning indicator/interior protection wiring harness (4) can detach from headliner (1).
