Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Headliner >> Service and Repair >> Removal and Replacement >> AR68.30-P-4300SXS Remove/Install Headliner

AR68.30-P-4300SXS Remove/Install Headliner



AR68.30-P-4300SXS Remove/Install Headliner
- with CODE (Z07) Top protection


Component Identification:




Component Identification:

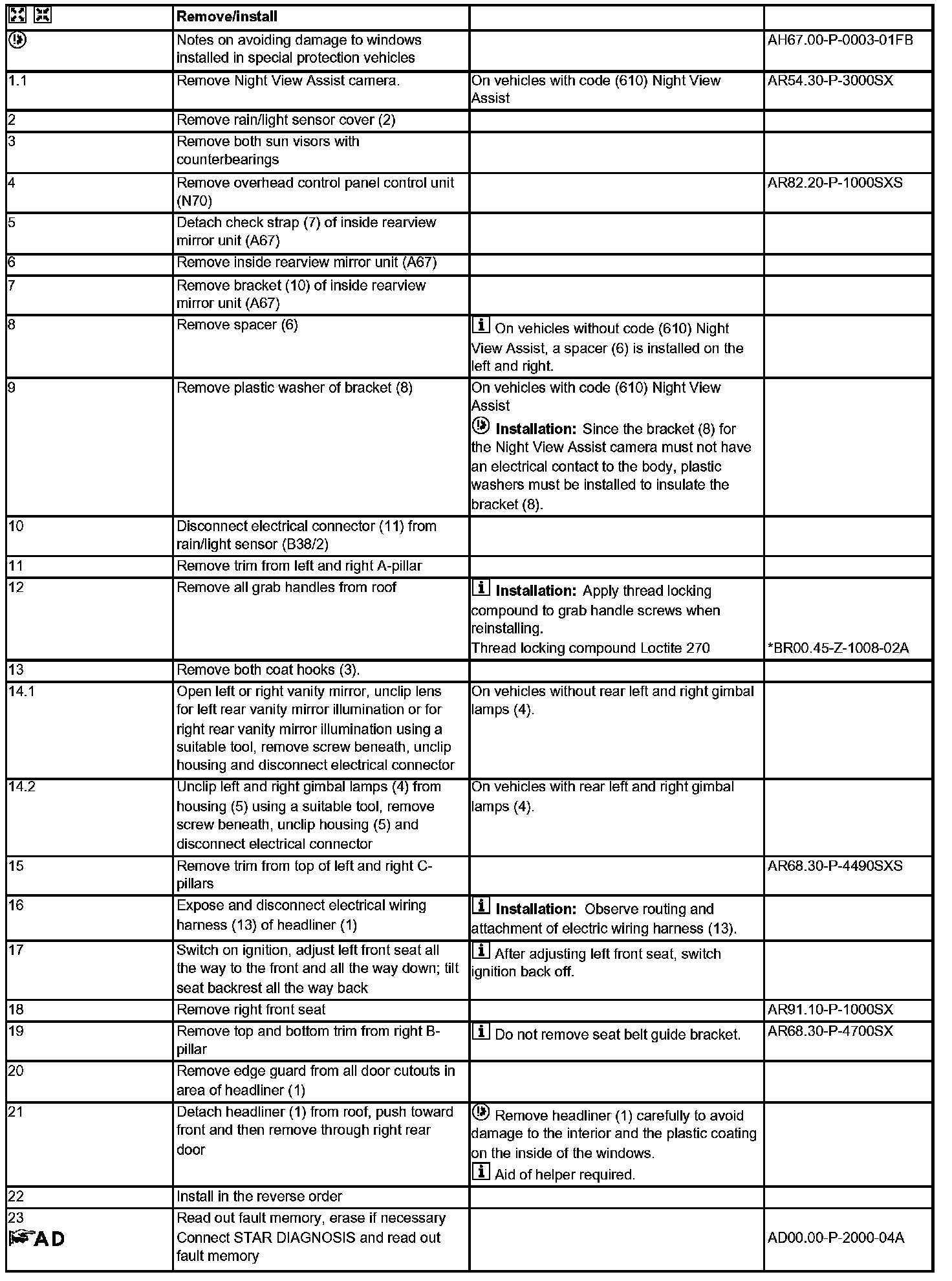

Steps 1.1 - 23:




Repair Materials:
