AR68.30-P-4300SX Remove/Install Roof Paneling



AR68.30-P-4300SX Remove/Install Roof Paneling
- except CODE (Z07) Top protection [models 221.1]

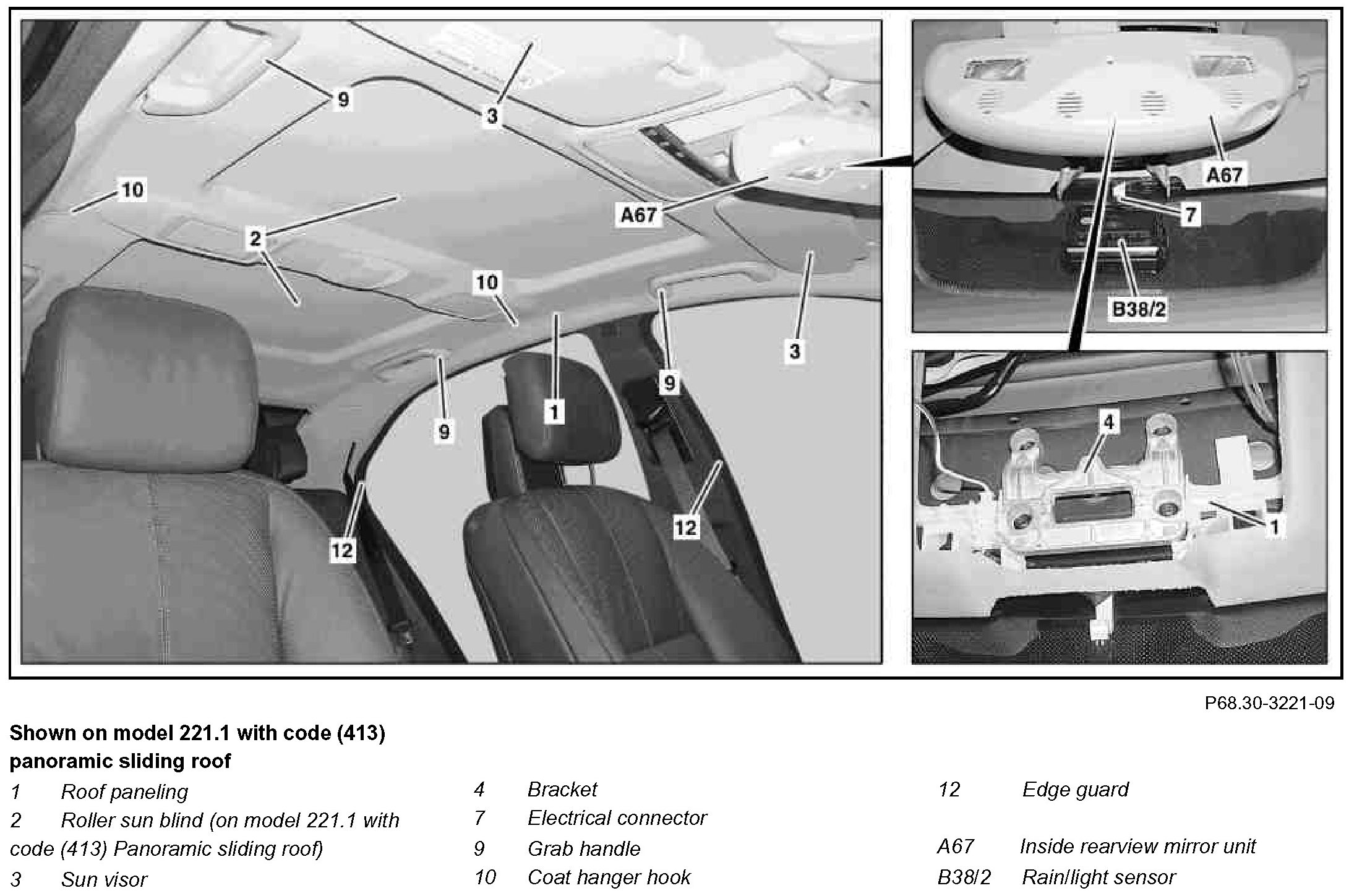

Component Identification:




Component Identification:

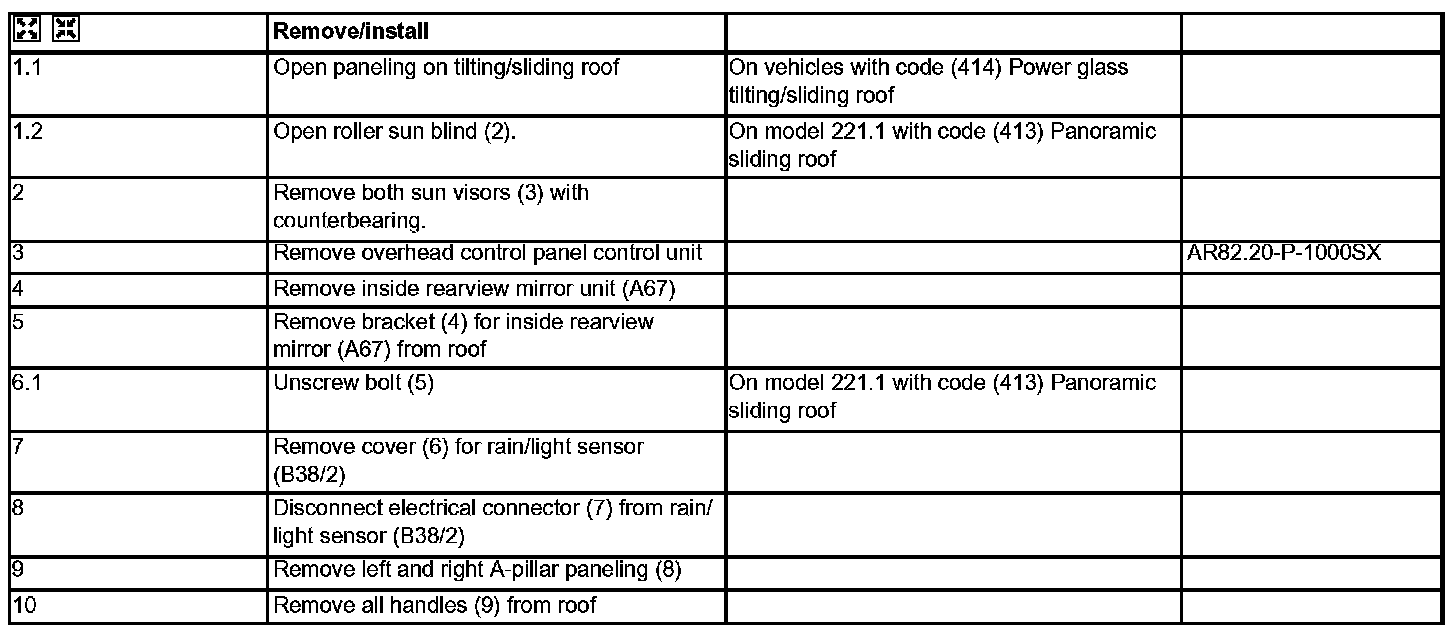

Steps 1.1 - 10:




Steps 11 - 21:
