AR68.20-P-2000-02SXA Loosen Center Console

AR68.20-P-2000-02SXA Loosen Center Console
- MODEL 221.0## /1## (except 221.074 /077 /174 /177 /179) 1#
- with CODE (582) Rear air conditioner

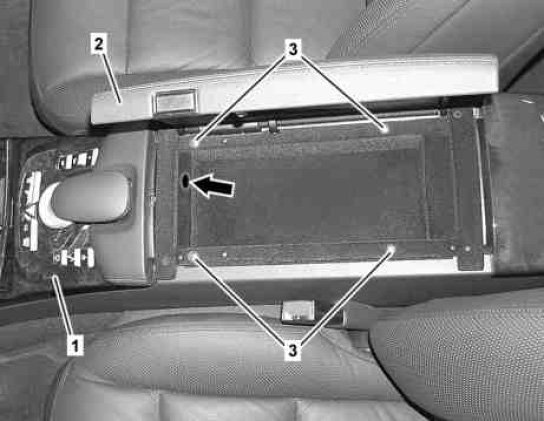

1 Open cover (2) on stowage compartment in center console (1).
2 Unclip cover (arrow) from stowage compartment and remove.
3 Remove rubber dampers (3).
4 Unscrew bolts below rubber dampers (3) and remove cover (2) with stowage compartment.





5 Move driver seat and front passenger seat forwards.
6 Remove cover (4) on left and right from center console (1).
7 Unscrew bolts behind covers (4) on center console (1).
