AR68.20-P-2000-02SX Loosen Center Console

AR68.20-P-2000-02SX Loosen Center Console
- MODEL 221.0## /1## (except 221.074 /077 /174 /177 /179) 1#
- except CODE (582) Rear air conditioner

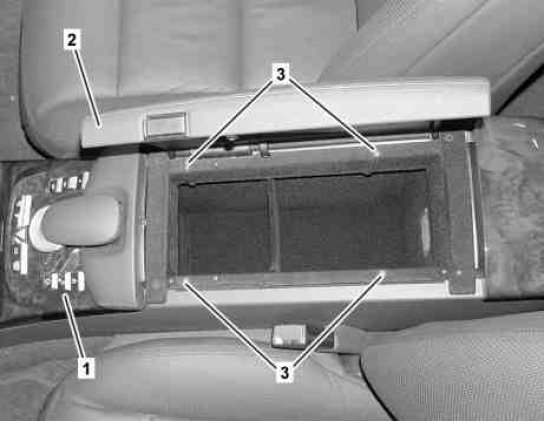

1 Open cover (2) on stowage compartment in center console (1).
2 Remove rubber dampers (3).
3 Unscrew bolts below rubber damper (3) and remove cover (2).





4 Move driver seat and front passenger seat forwards.

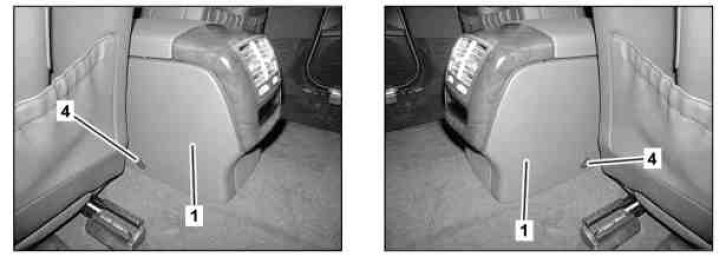

5 Remove cover (4) on left and right from center console (1).
6 Unscrew bolts behind covers (4) on center console (1).

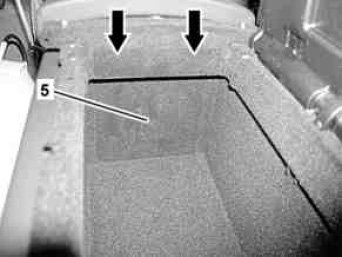

7 Unclip maintenance flap (5) from brackets (arrows) and remove from center console.
