Accessory Compartment: Service and Repair
AR68.20-P-2420SX Remove/Install Stowage Compartment Or Ashtray Housing
Component Identification:

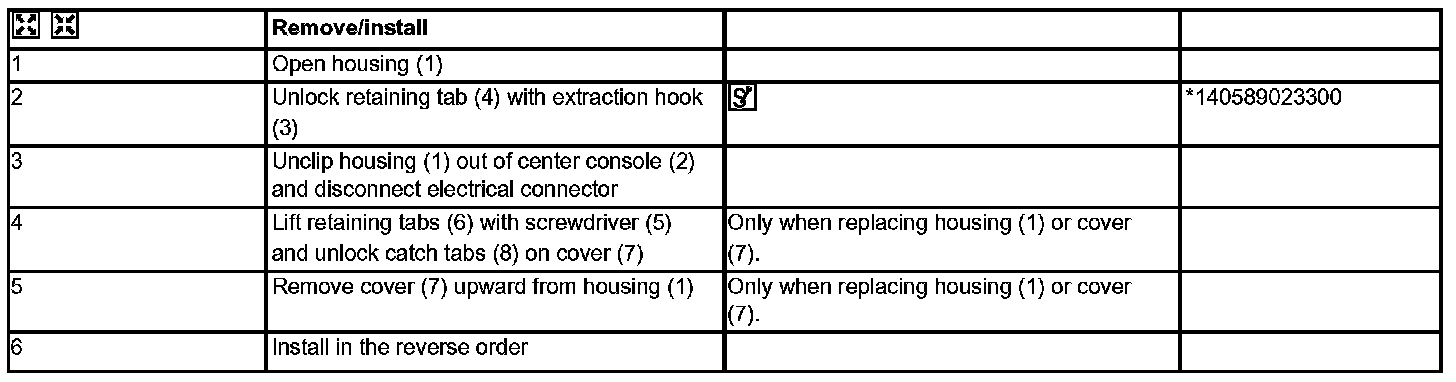

Steps 1 - 6:

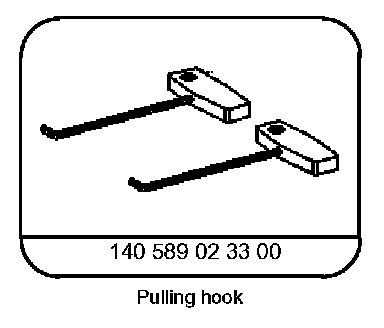

Special Tools:
