AR35.10-P-0015SX Lower Rear Axle

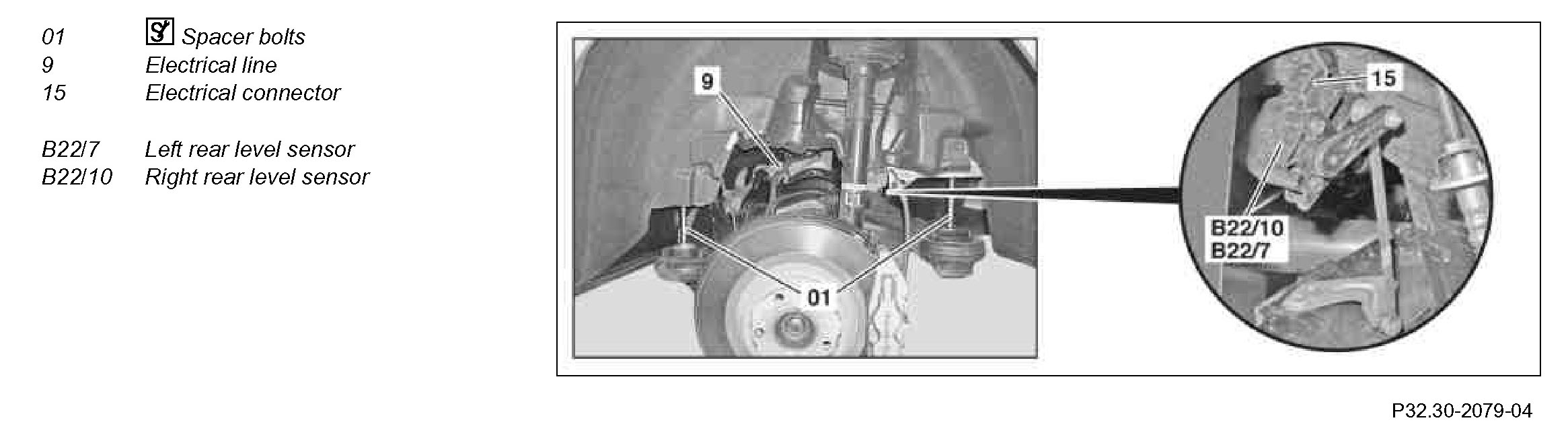

Component Identification:

Component Identification:

Modification notes:

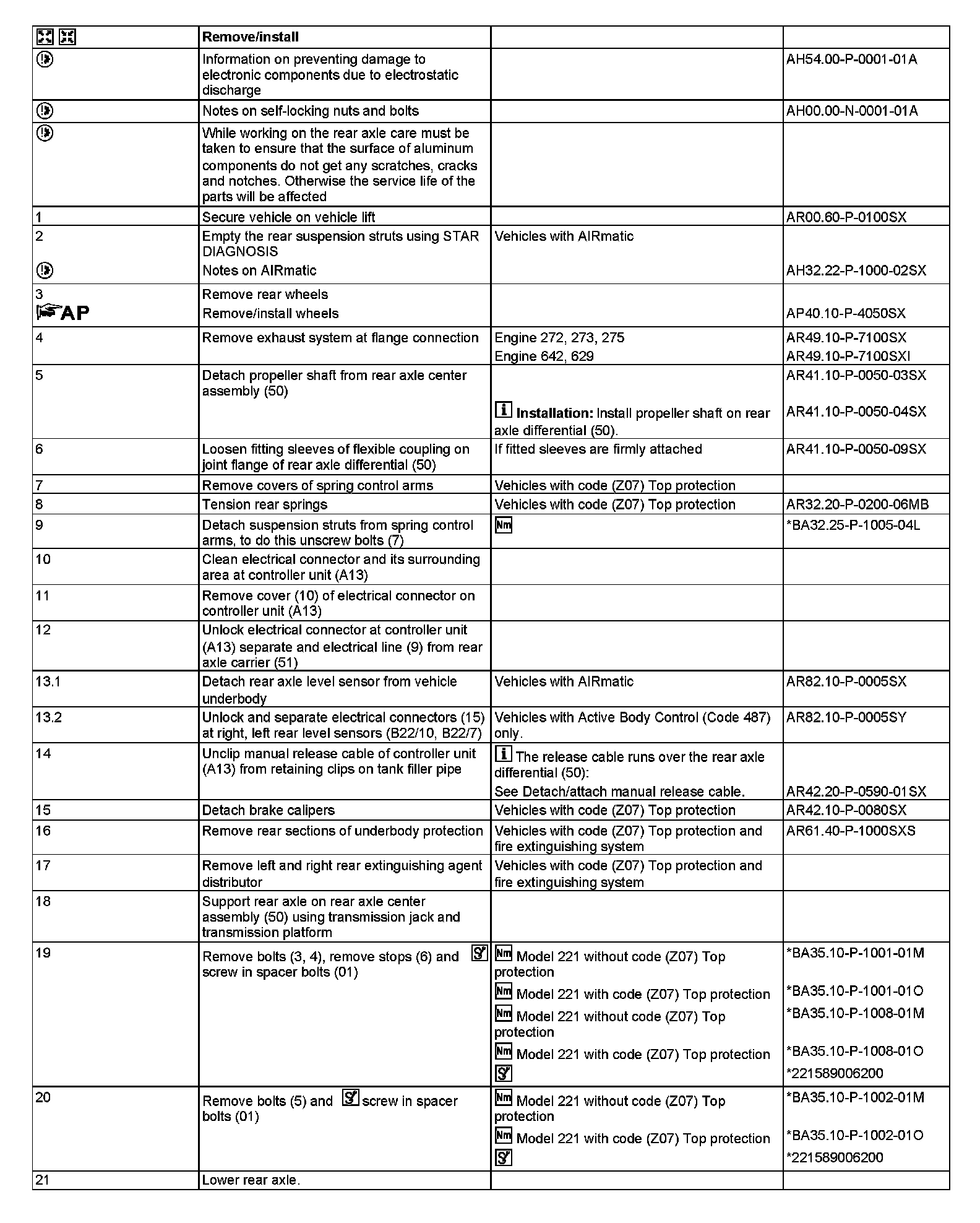

Steps 1-21:

Suspension struts:

Suspension struts:

Suspension struts:

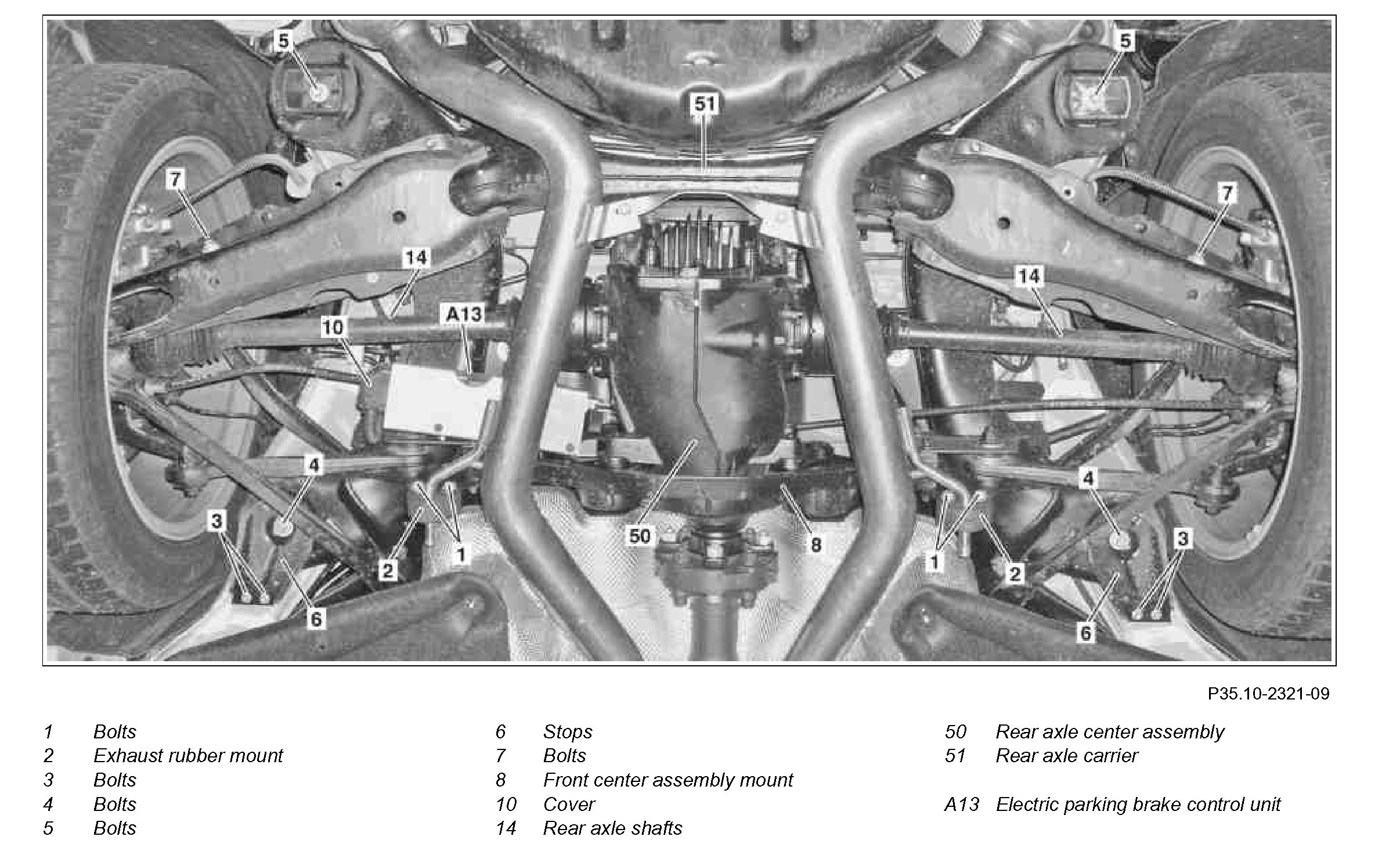

Rear axle carrier:

Rear axle carrier:

Rear axle carrier:

Special Tools:
