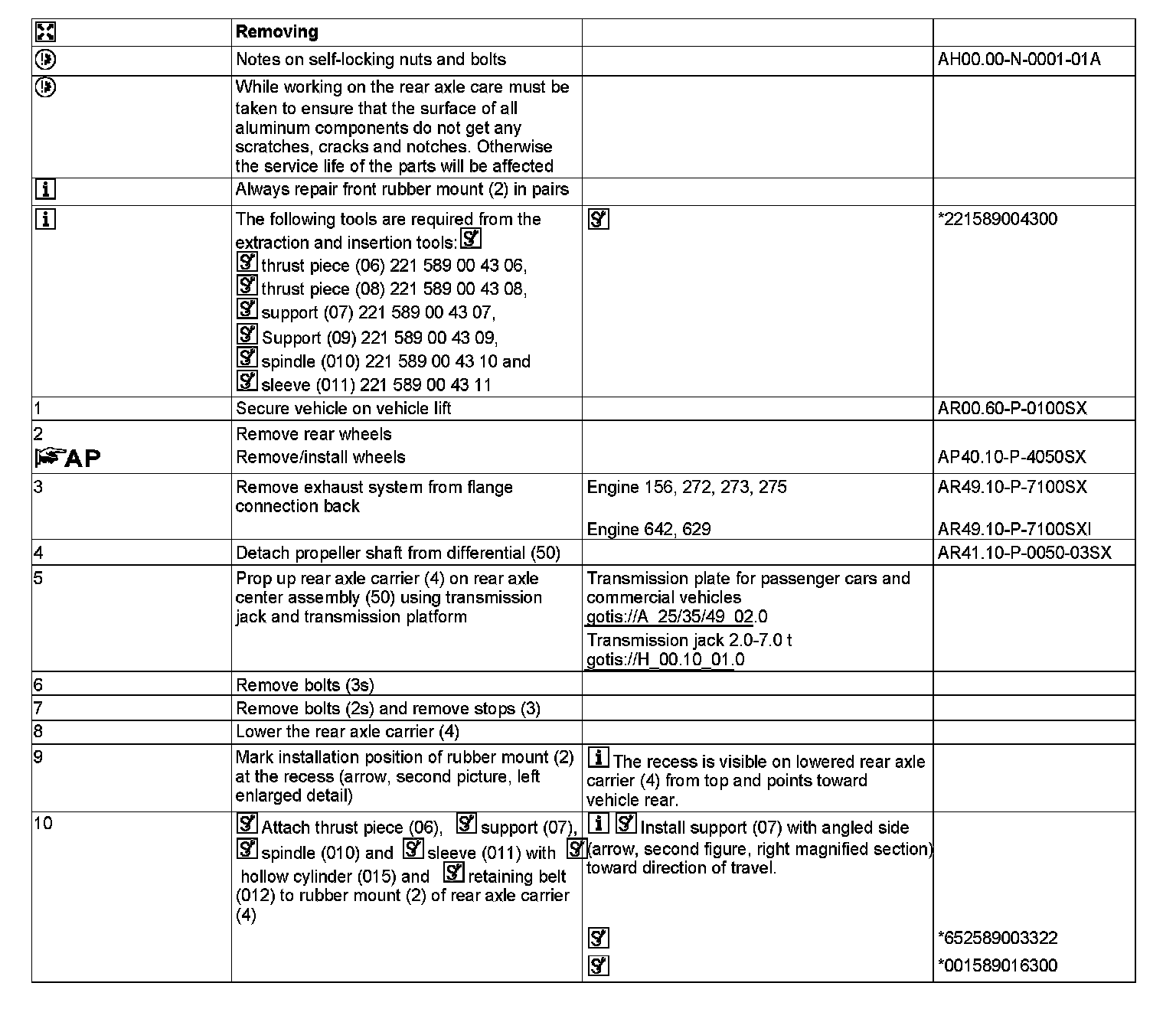

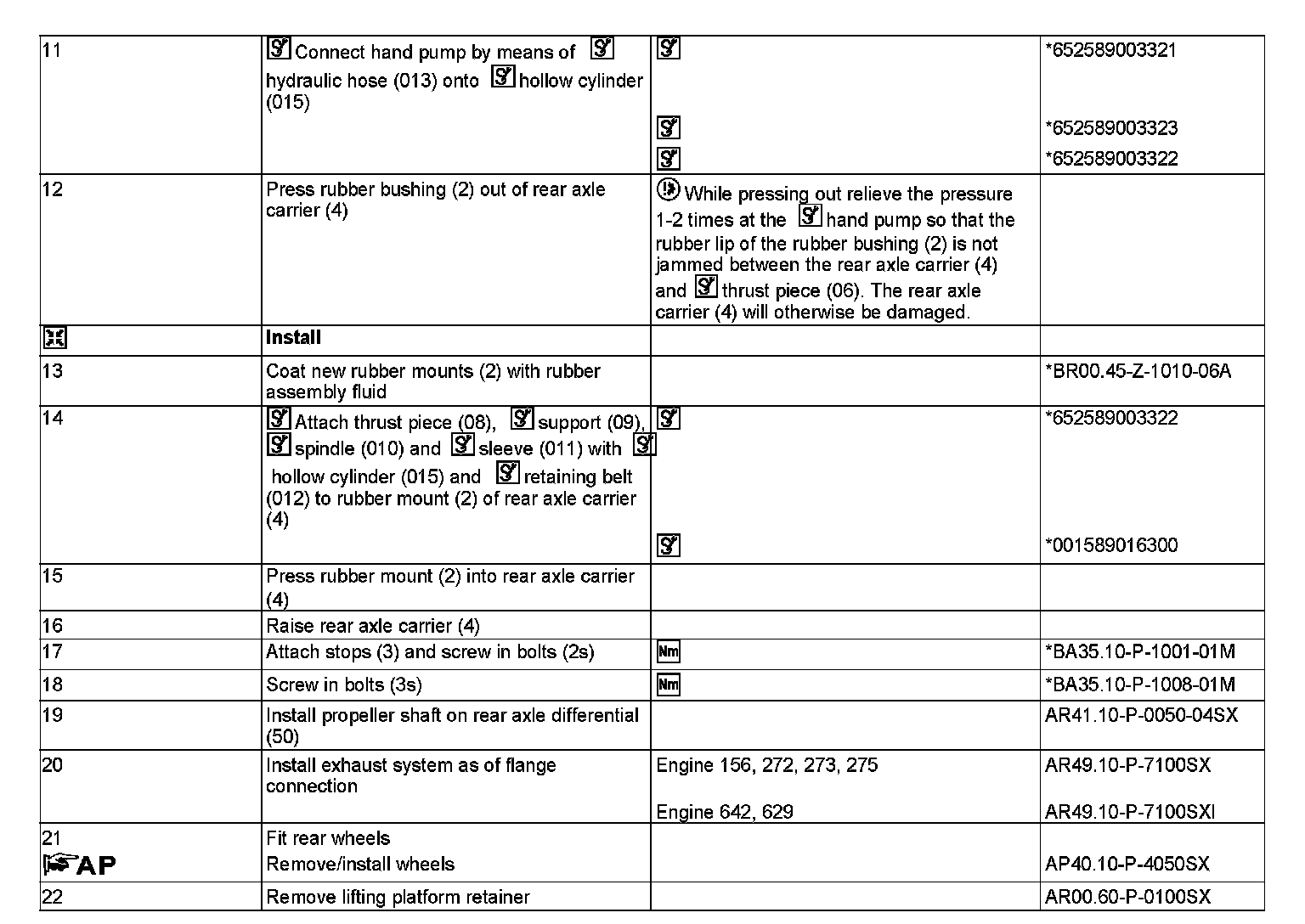

AR35.10-P-0041SX Front Rubber Mount of Rear Axle Mount - Removal and Installation

AR35.10-P-0041SX Front Rubber Mount Of Rear Axle Mount - Removal And Installation
MODEL 221
- except CODE (Z07) Top protection
MODEL 216

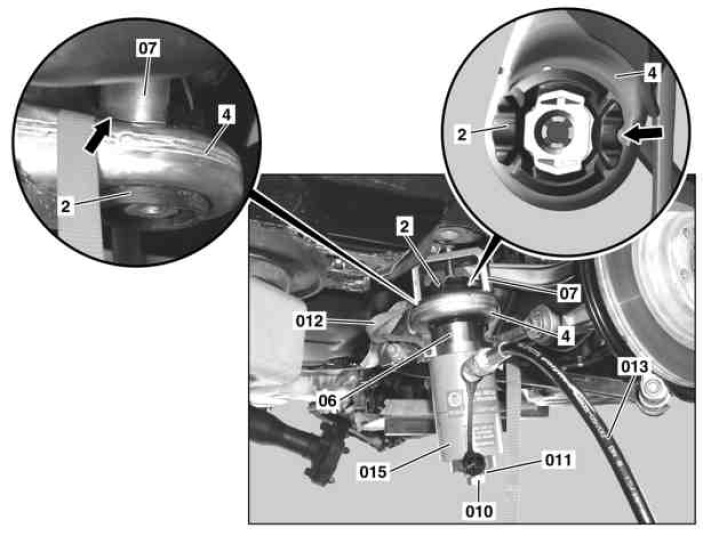

2s Screw
3 Stops
3s Bolts
4 Rear axle carrier
50 Differential





06 Thrust piece
07 Support
010 Spindle
011 Sleeve
012 Retaining belt
013 Hydraulic hose
015 Hollow cylinder
2 Rubber bushing
4 Rear axle carrier





08 Thrust piece
09 Support
010 Spindle
011 Sleeve
012 Retaining belt
013 Hydraulic hose
015 Hollow cylinder
2 Rubber bushing
4 Rear axle carrier

















221 589 00 43 00
Extraction and insertion tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)





001 589 01 63 00
Retaining belt
