Front Fender: Service and Repair
AR88.10-P-1000SX Remove/install Front Fenders

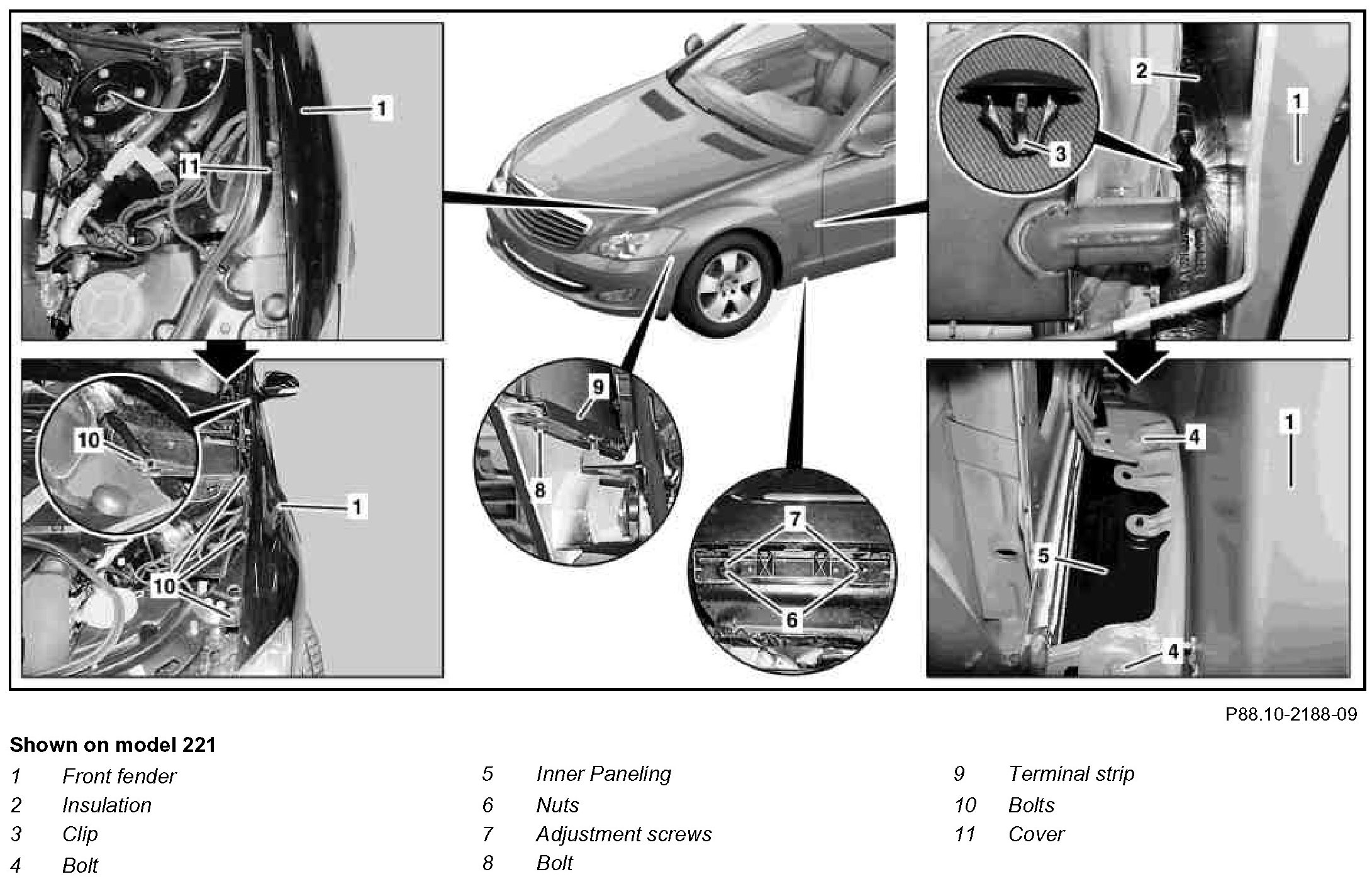

Component Identification:

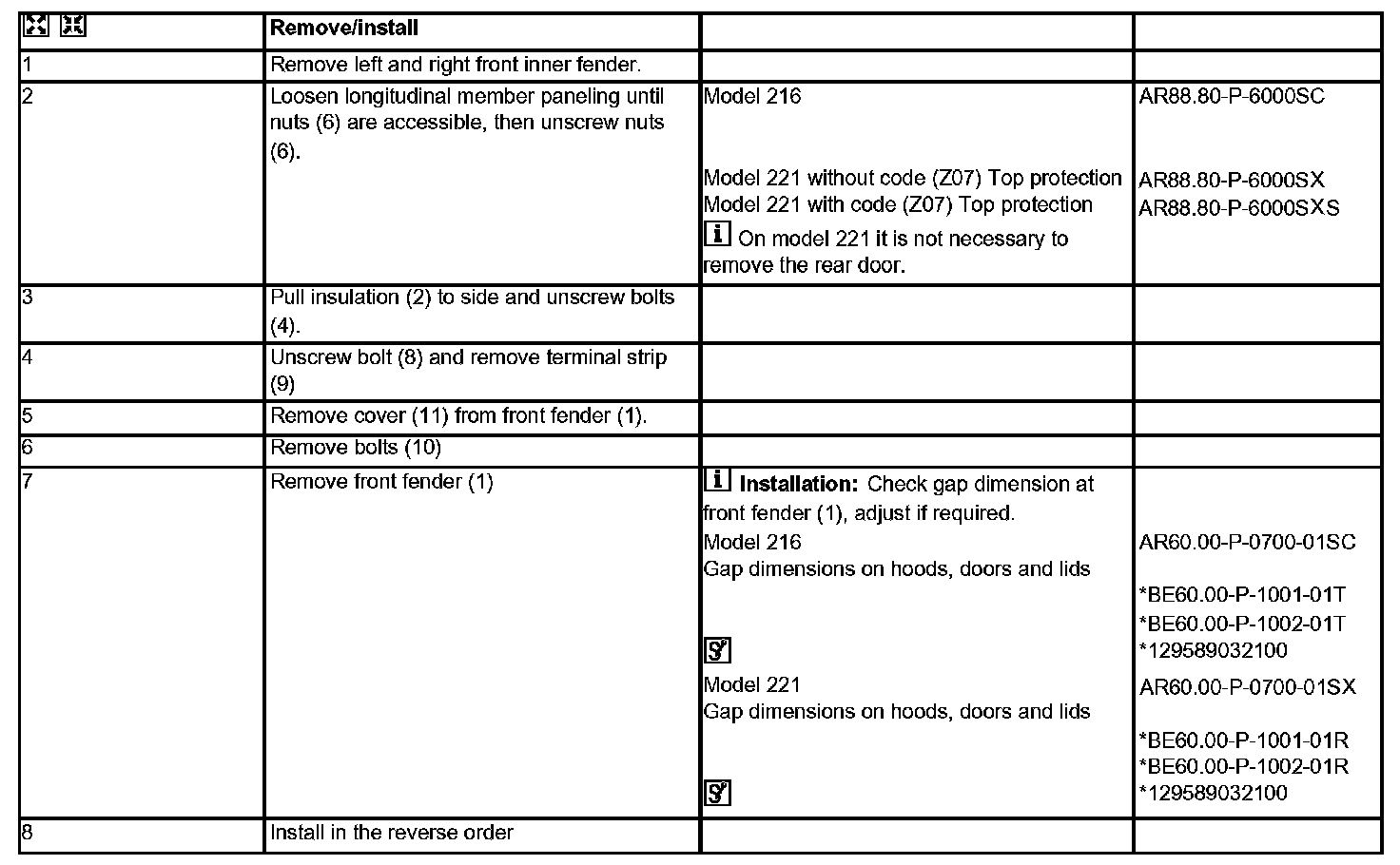

Steps 1-8:
Check Values For Gaps:
Special Tool:
