Hood Shock / Support: Service and Repair
AR88.40-P-3010SX Remove/install Gas-operated Strut On Engine
Hood

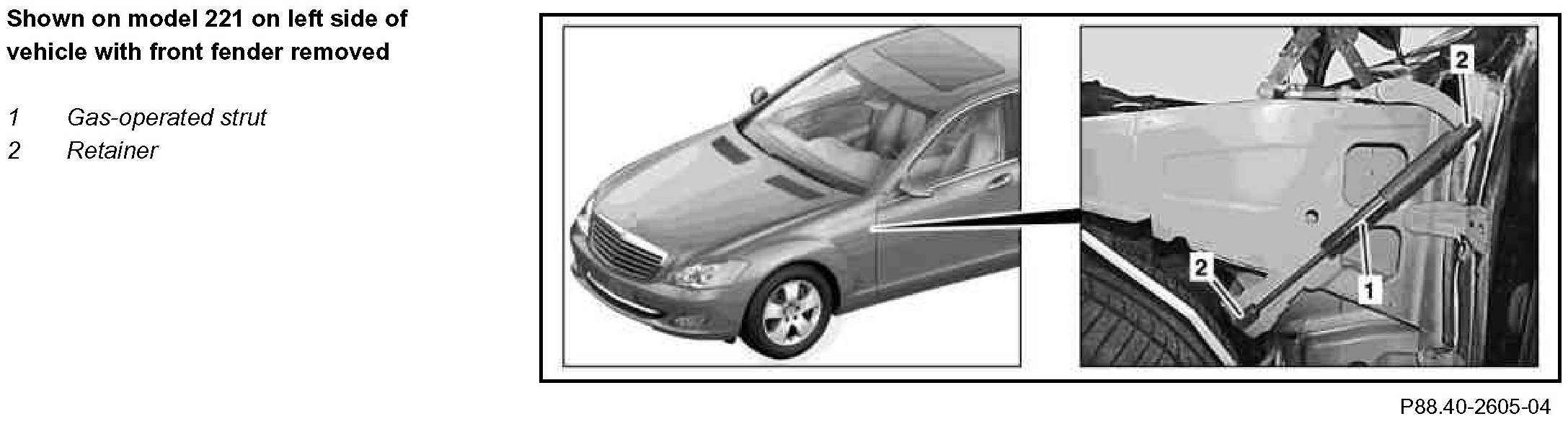

Component Identification:

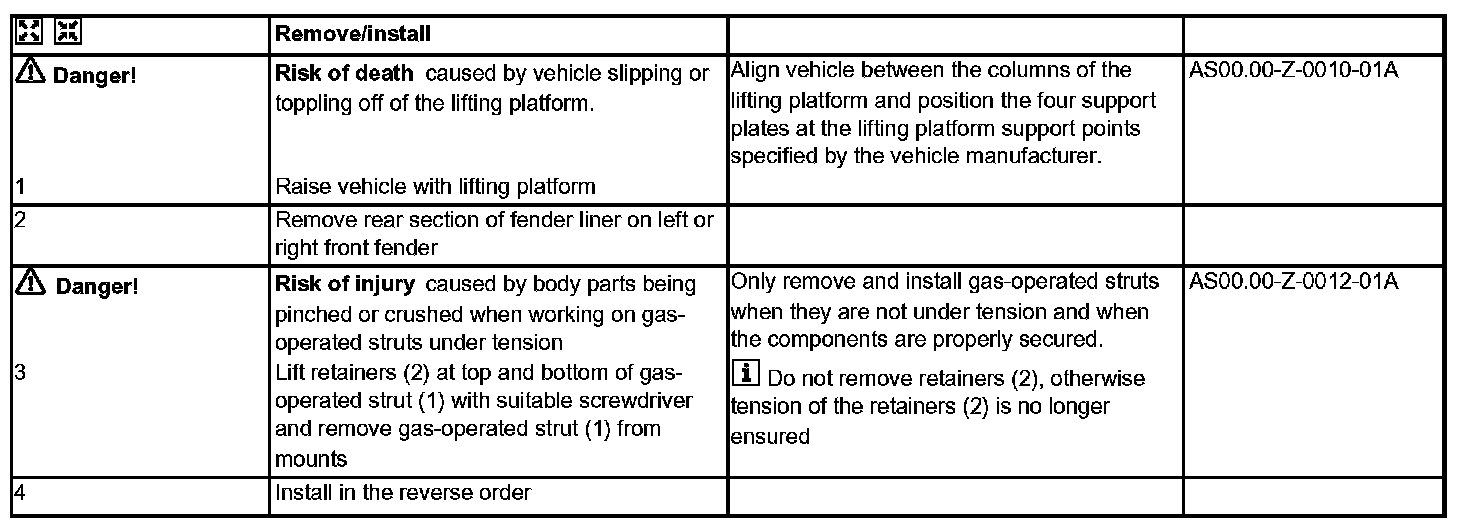

Steps 1-4:
