Hood Latch: Service and Repair
AR88.40-P-3200SX Remove/install Engine
Hood
Catch

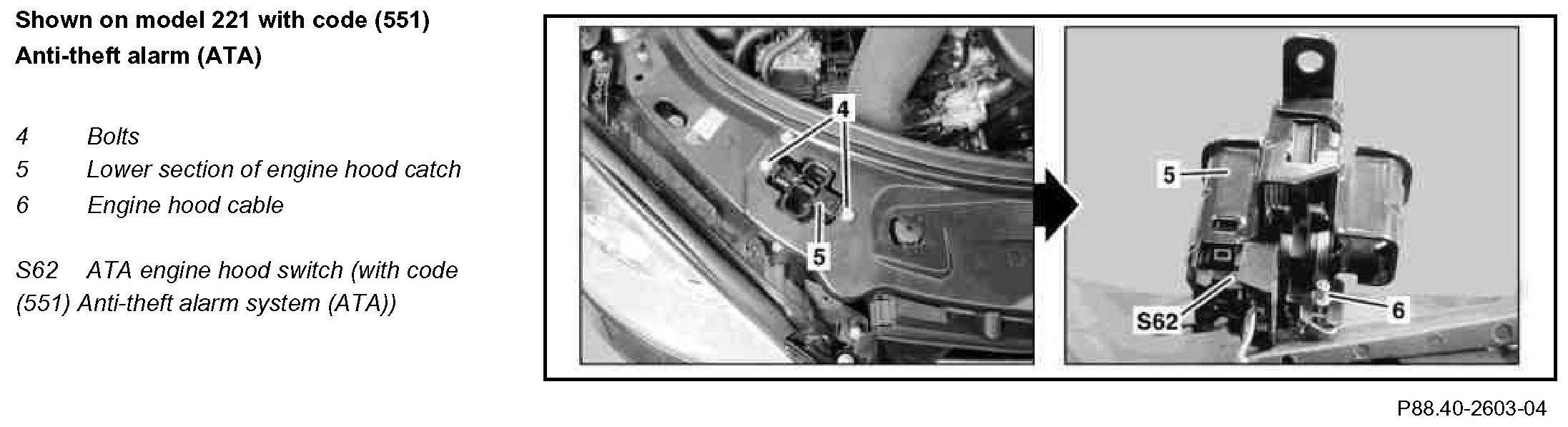

Component Identification:

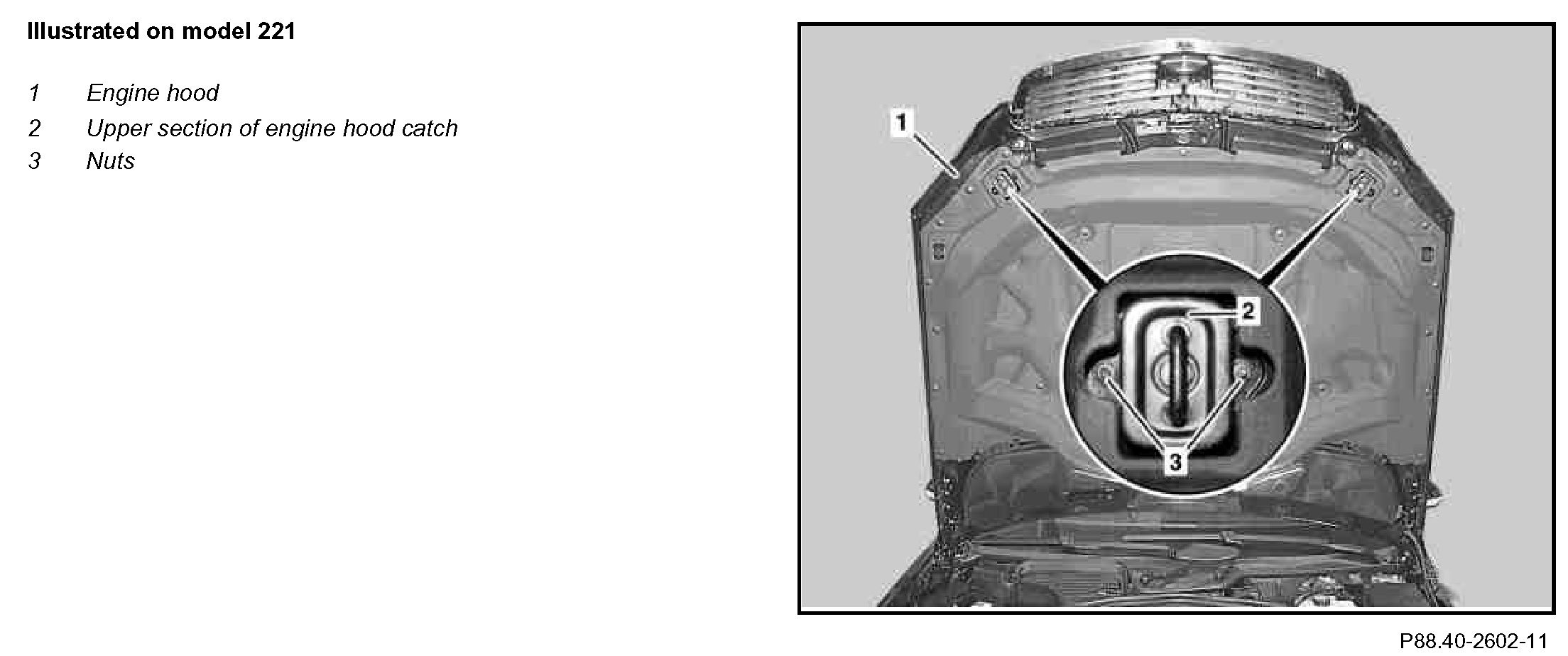

Component Identification:

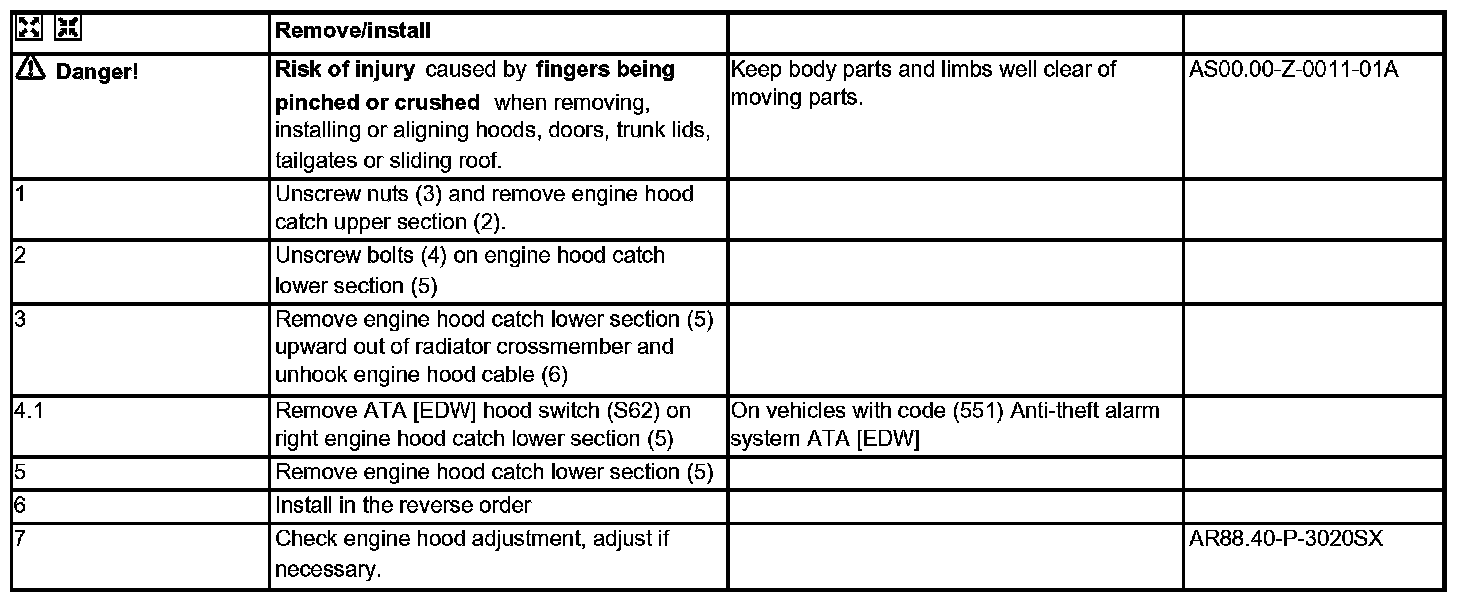

Steps 1-7:
