Hood Latch Release Cable: Service and Repair
AR88.40-P-3100SX Remove/Install Pull Cable For Engine Hood
- engine
hood
cable front section

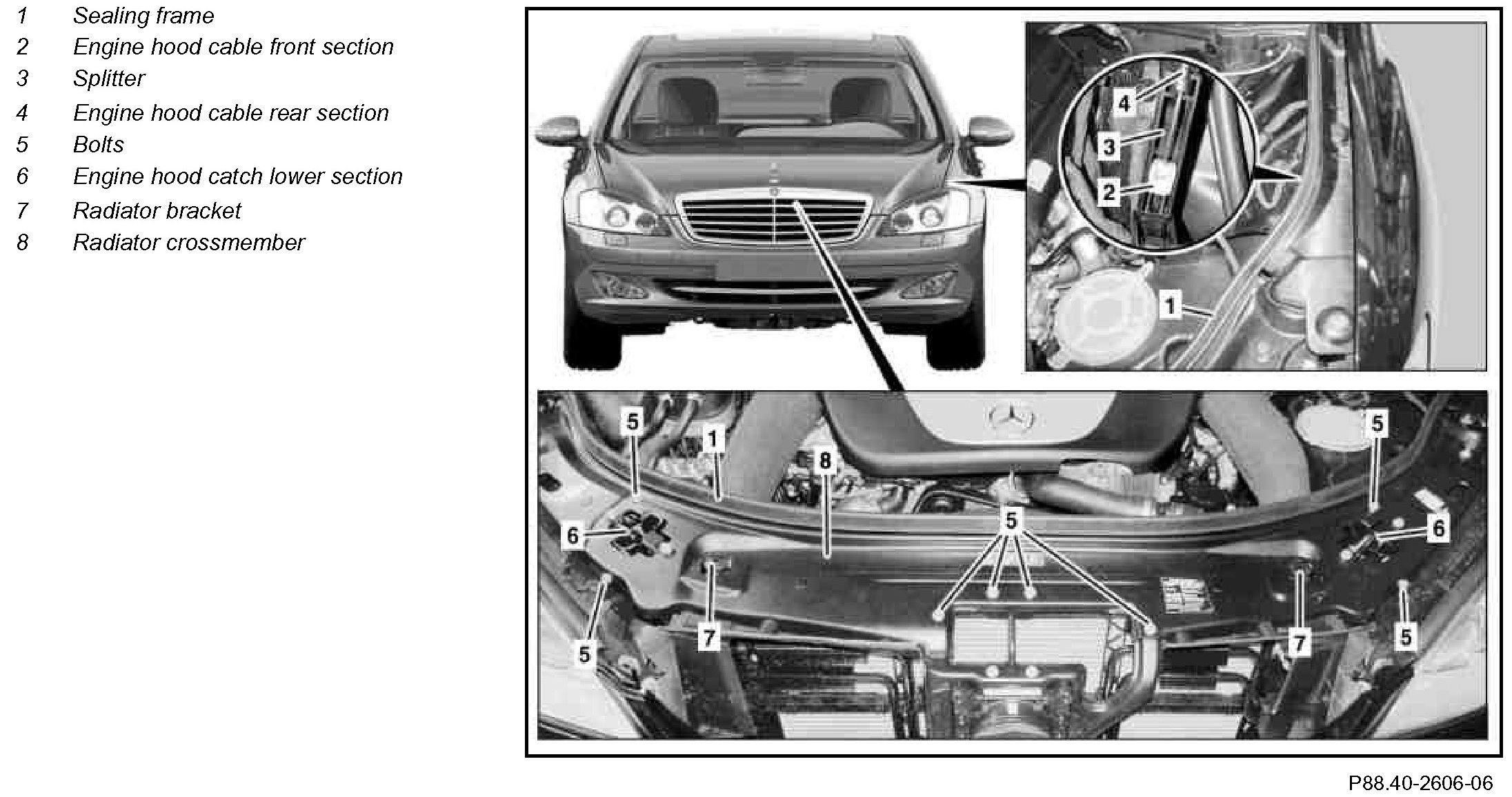

Component Identification:

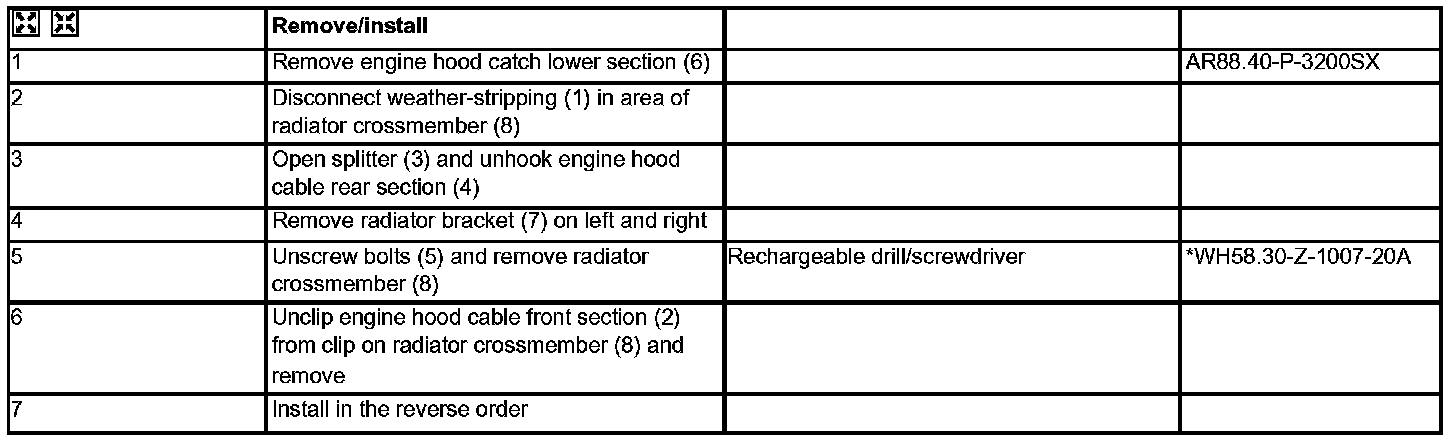

Steps 1 - 7:

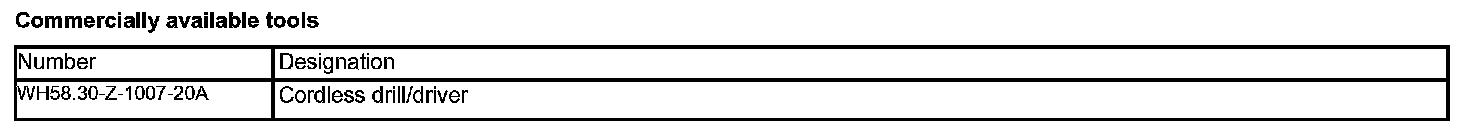

Commercially Available Tools:
