AR72.12-P-0650SX Adjust Rear Door



AR72.12-P-0650SX Adjust Rear Door
- except CODE (Z07) Top protection

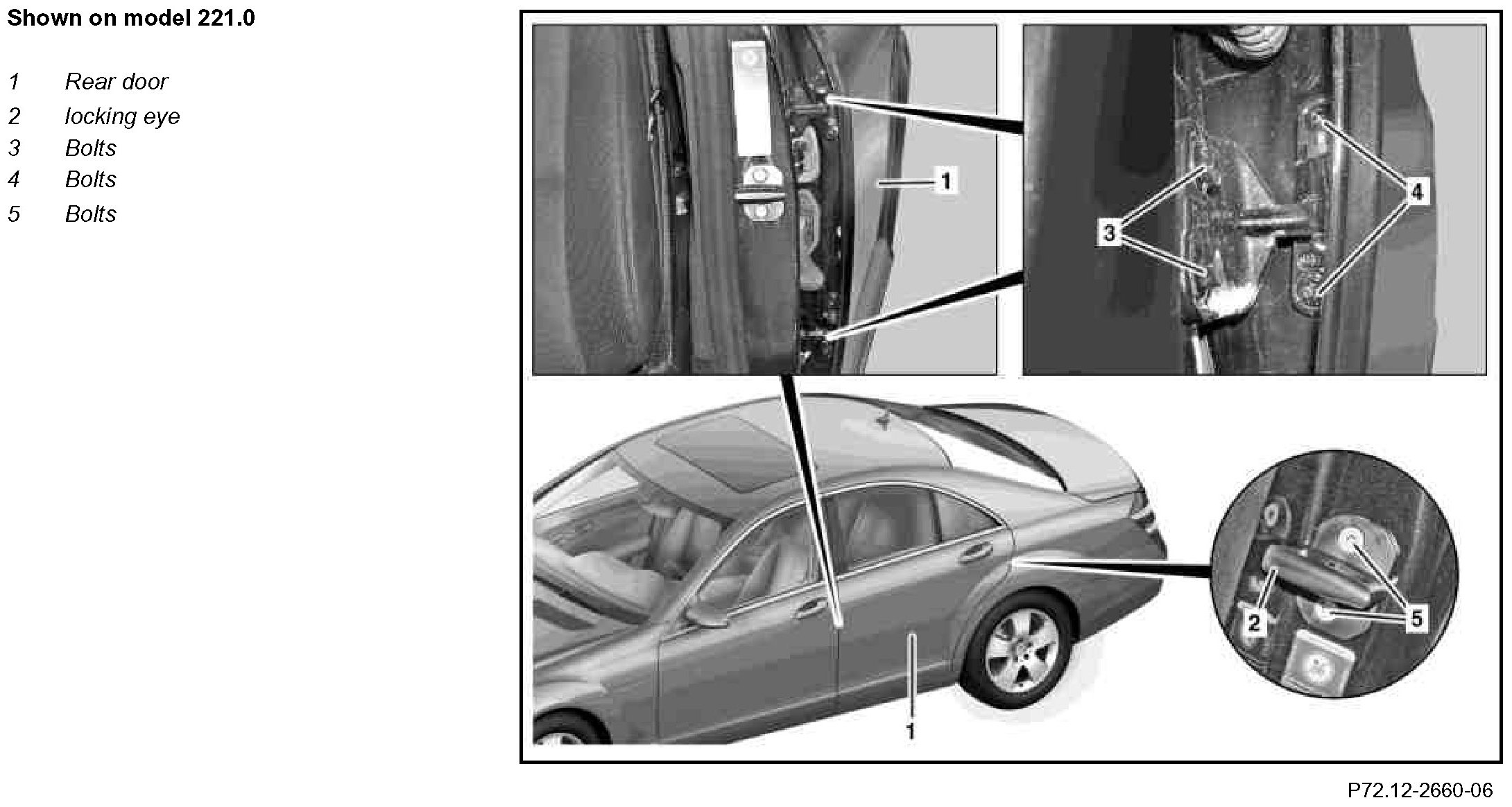

Component Identification:

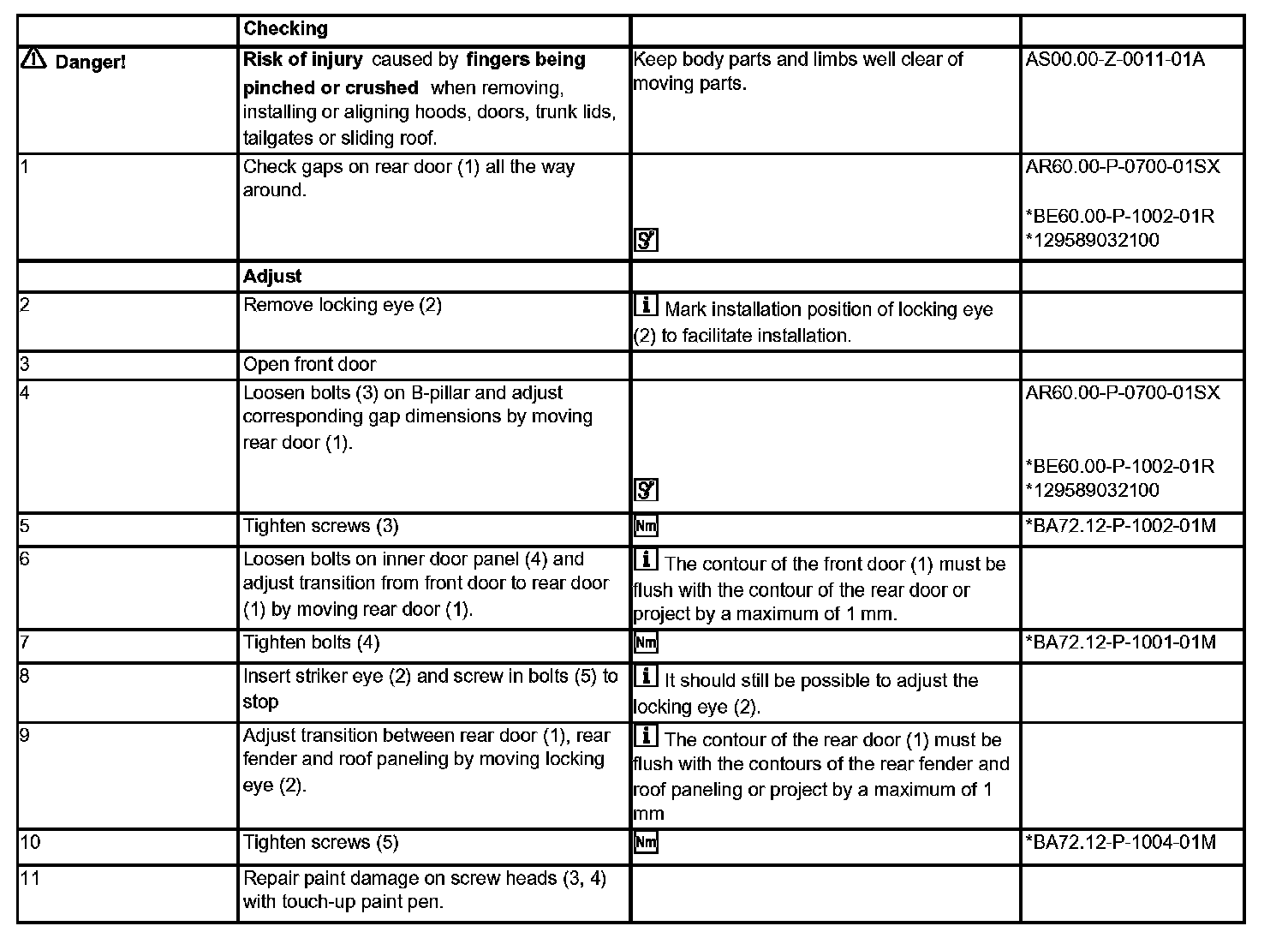

Steps 1 - 11:

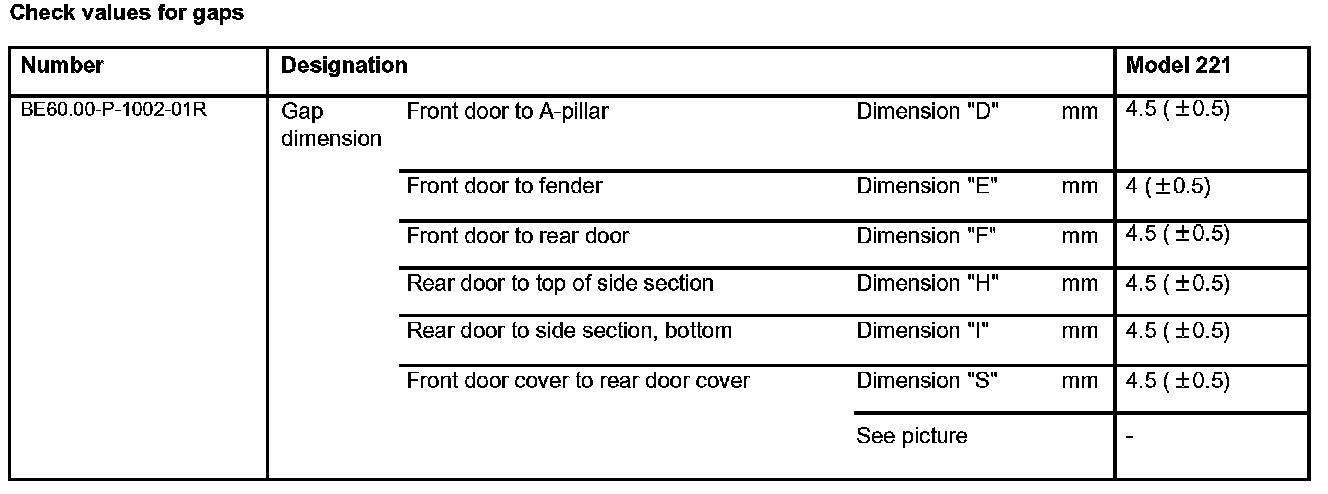

Check Values For Gaps:

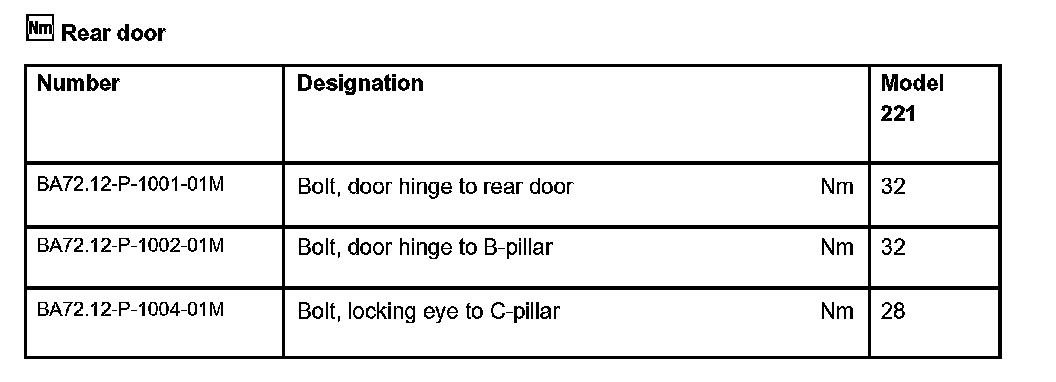

Rear Door:




Special Tools:
