AR72.10-P-0500SXS Remove/Install Front Door



AR72.10-P-0500SXS Remove/Install Front Door
- with CODE (Z07) Top protection

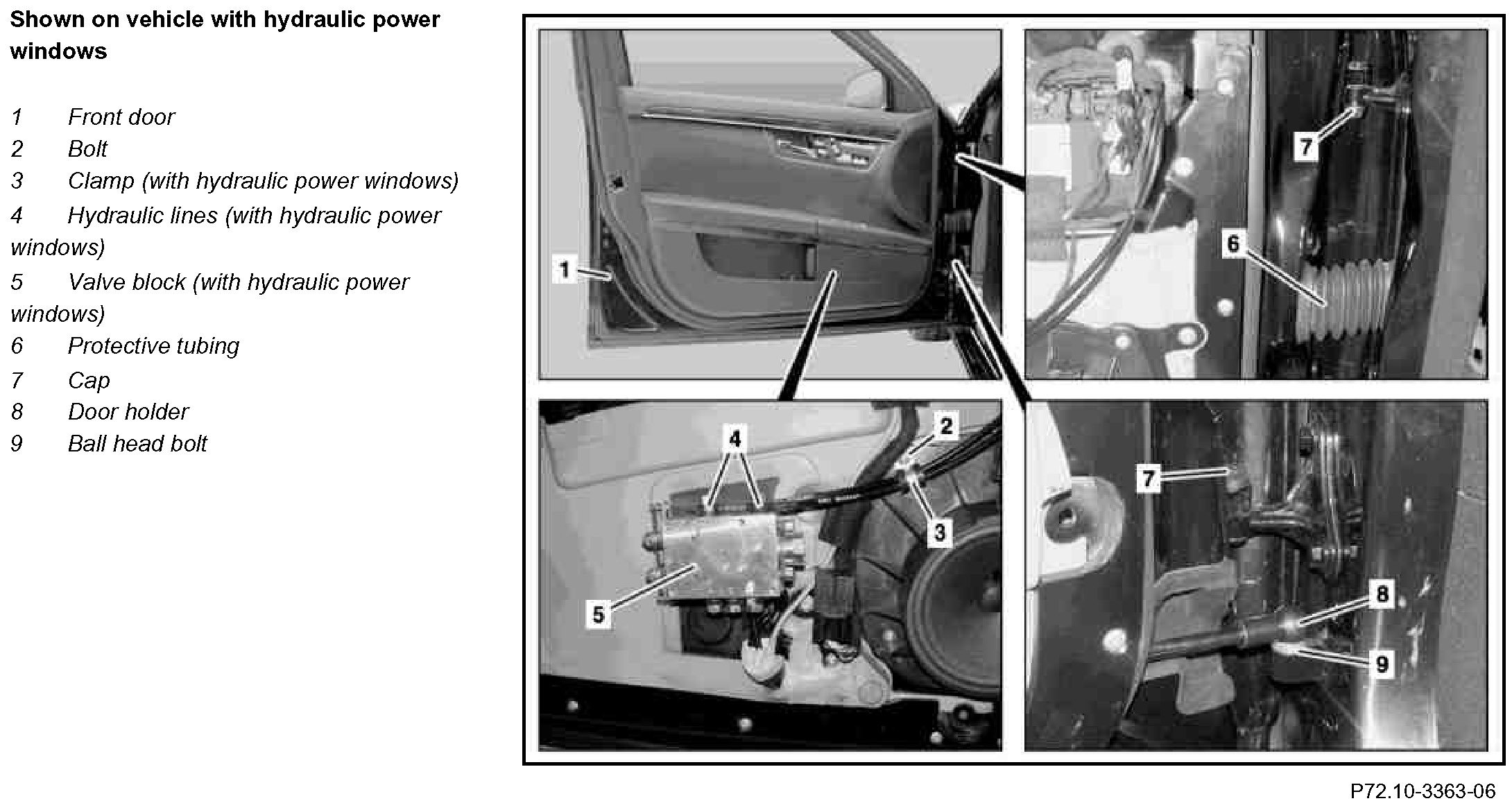

Component Identification:




Steps 1.1 - 12:




Steps 13 - 14.1:

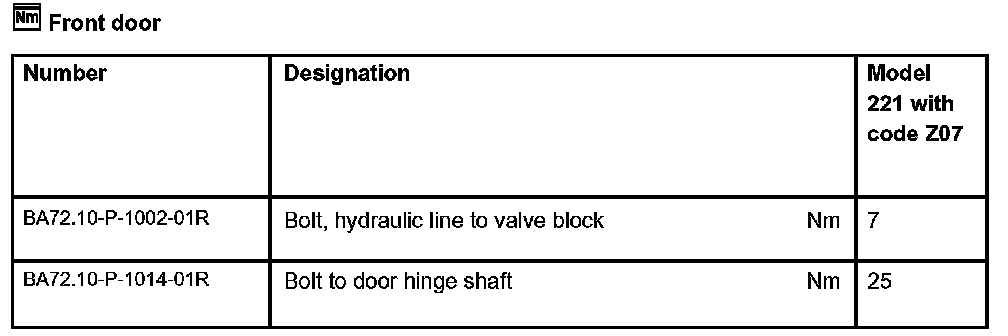

Front door:

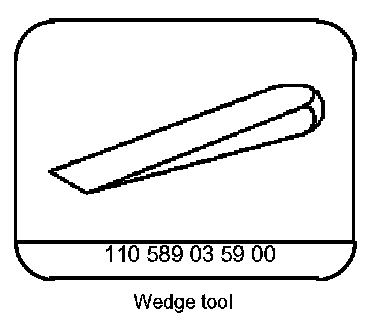

Special Tools:
