AR88.20-P-2200SXS Remove/Install Rear Bumper



AR88.20-P-2200SXS Remove/Install Rear Bumper
- with CODE (Z07) Top protection

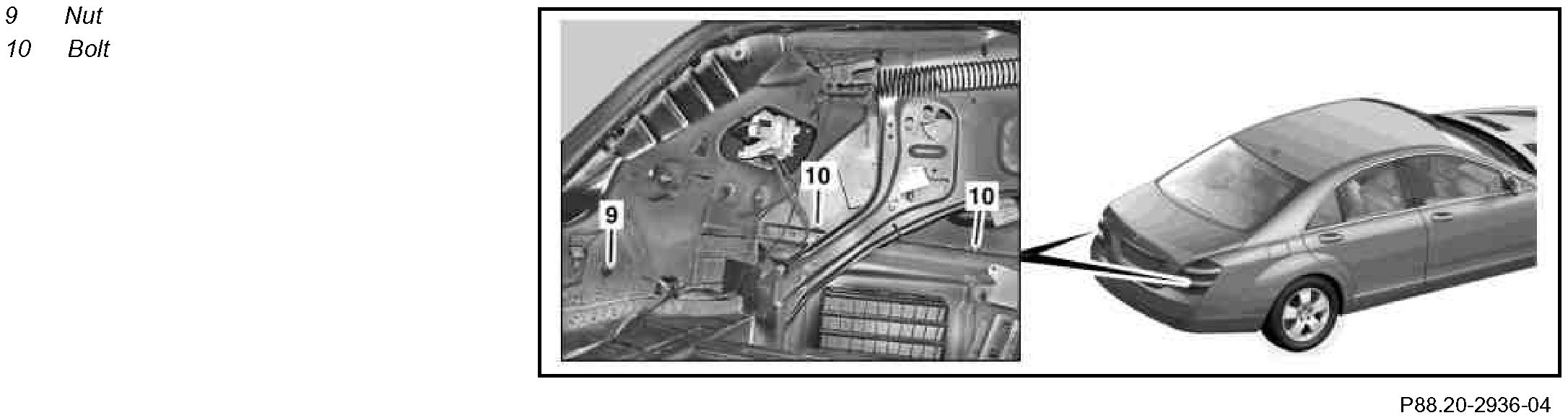

Component Identification:

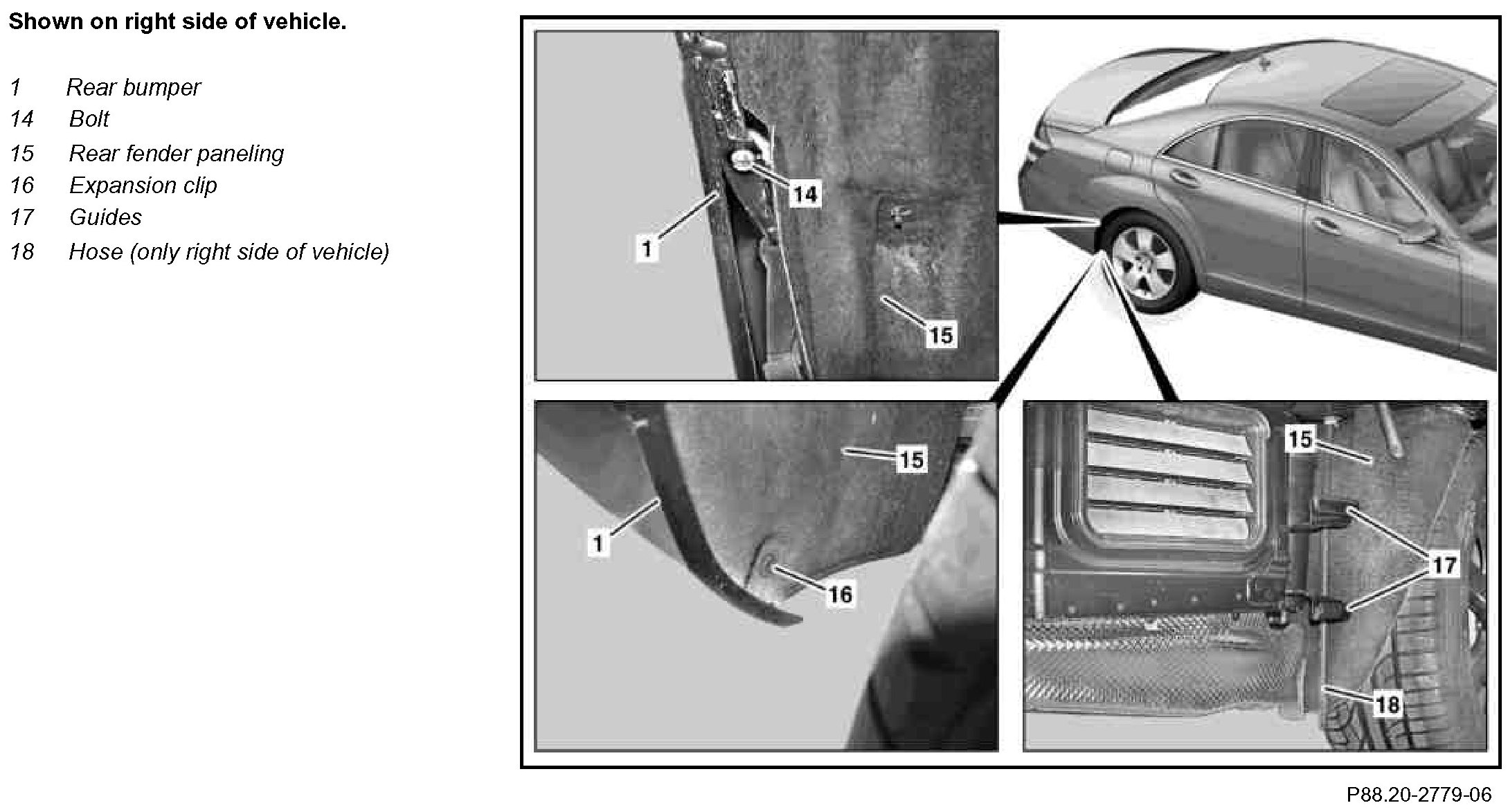

Component Identification:




Component Identification:




Component Identification:

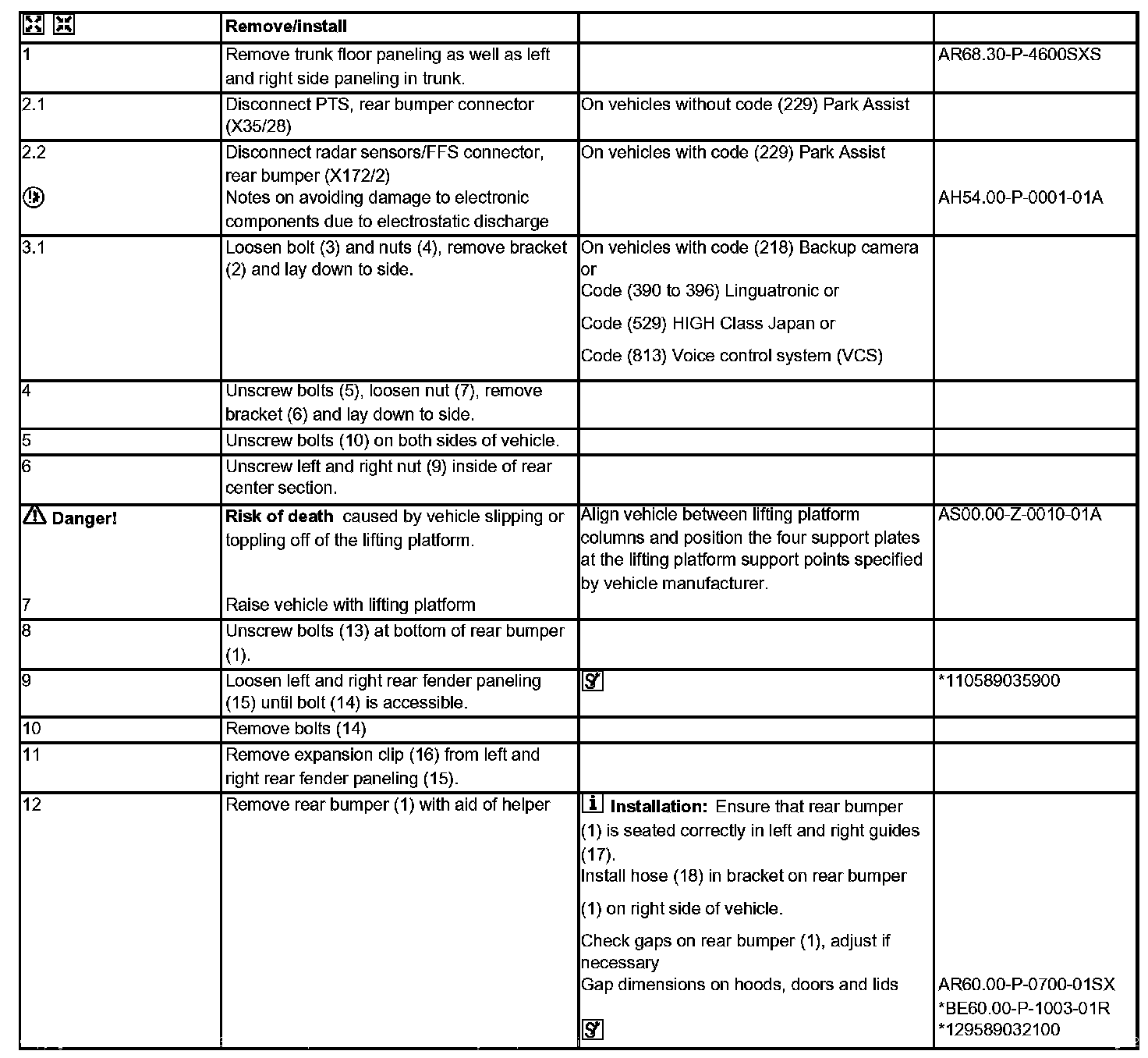

Steps 1 - 12:

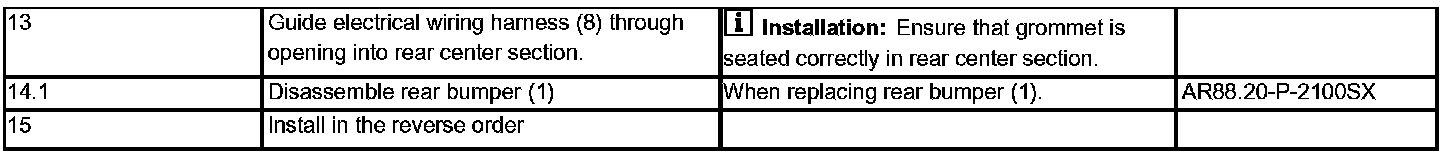

Steps 13 - 15:

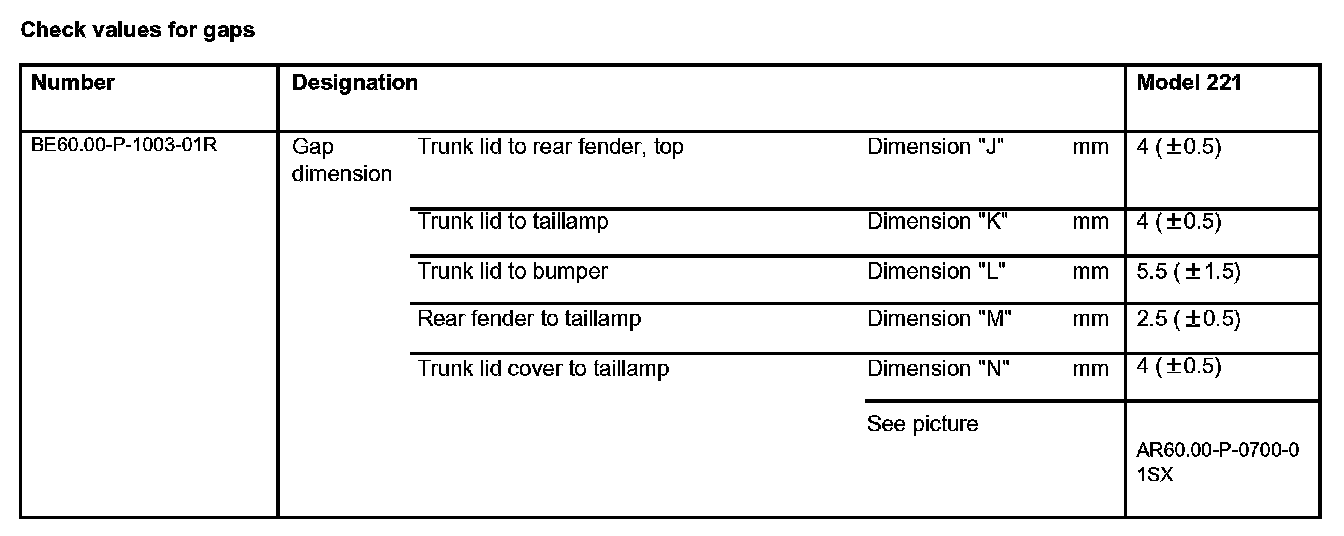

Check Values For Gaps:

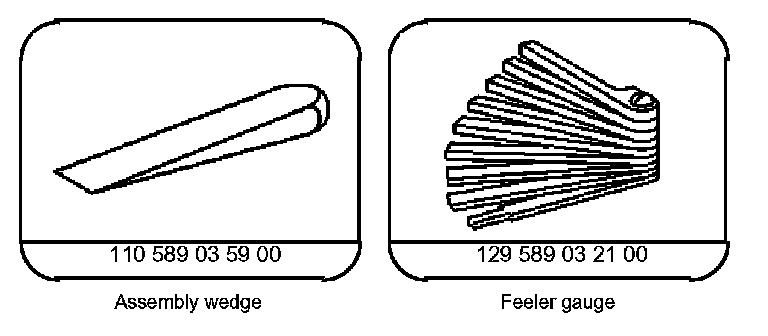

Special Tools:
