AR88.20-P-2200SX Remove/Install Rear Bumper



AR88.20-P-2200SX Remove/Install Rear Bumper

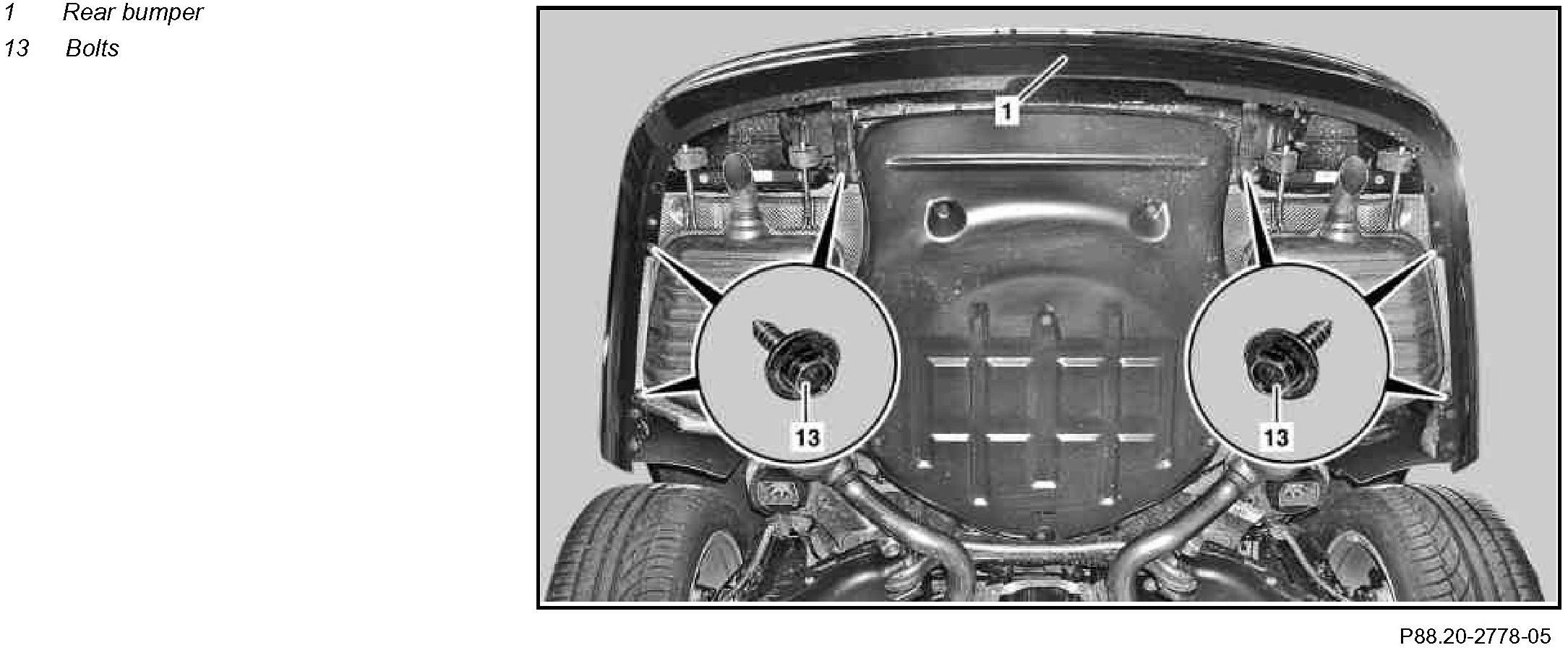

Component Identification:

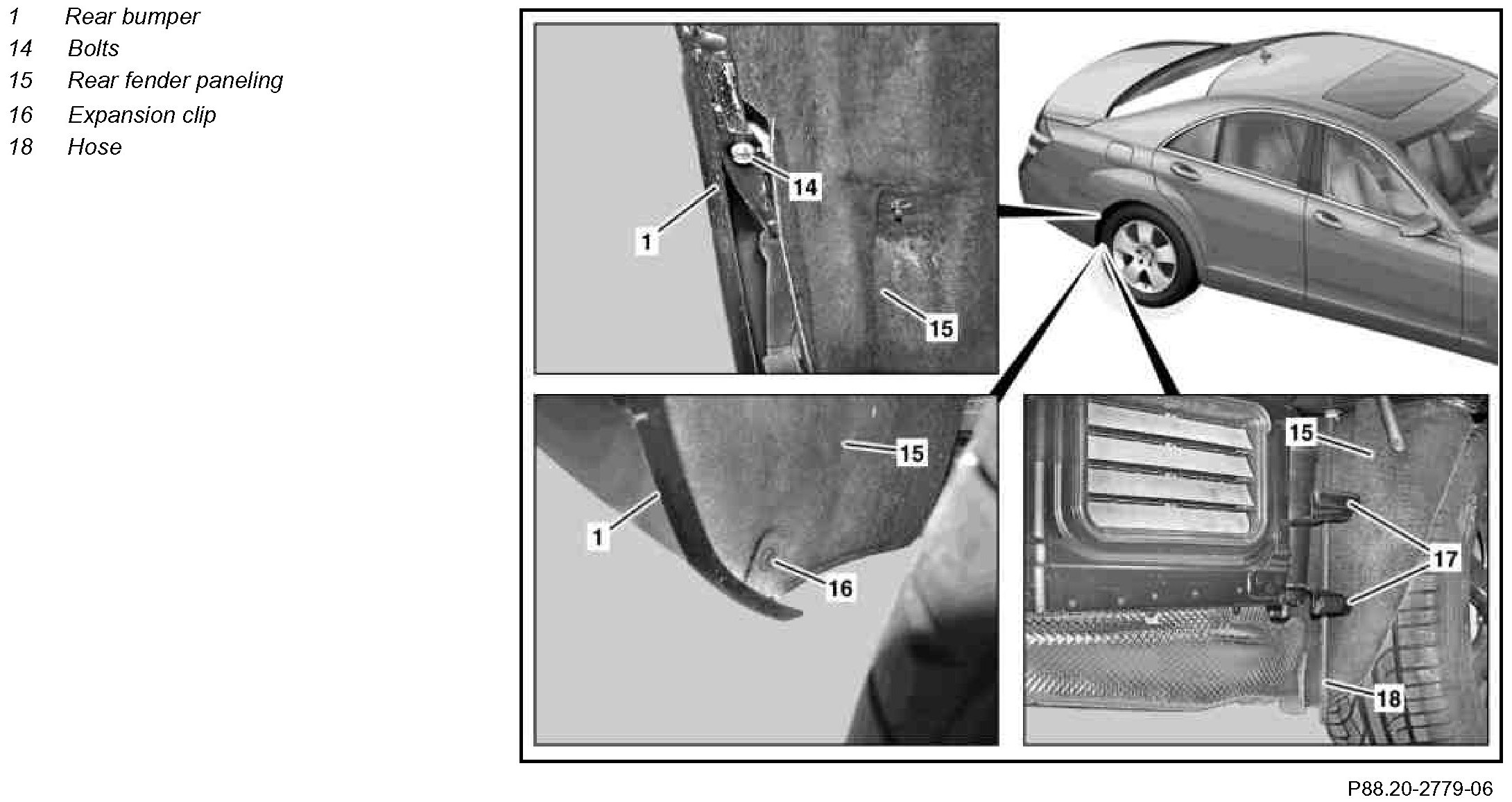

Component Identification:

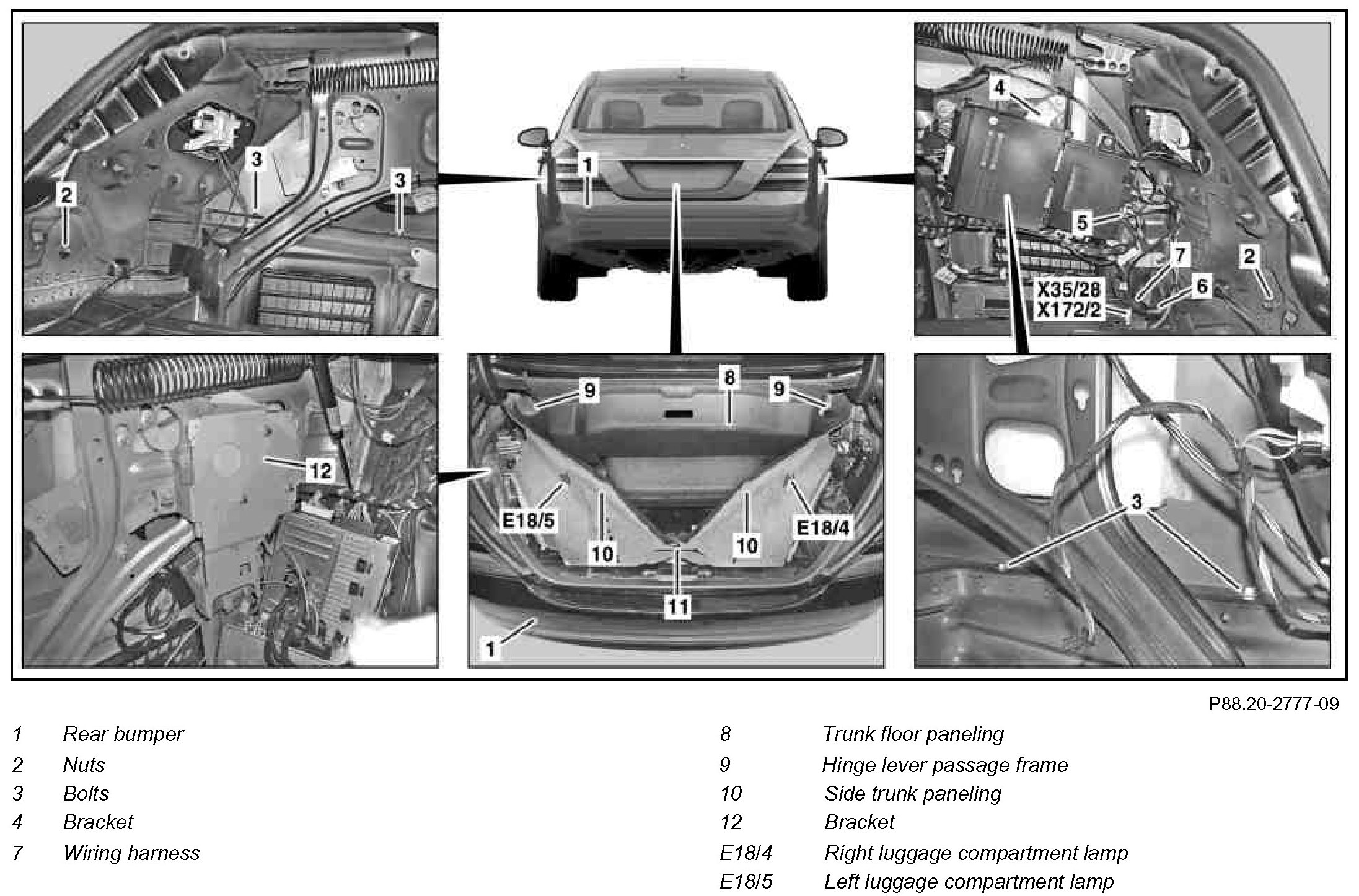

Component Identification:

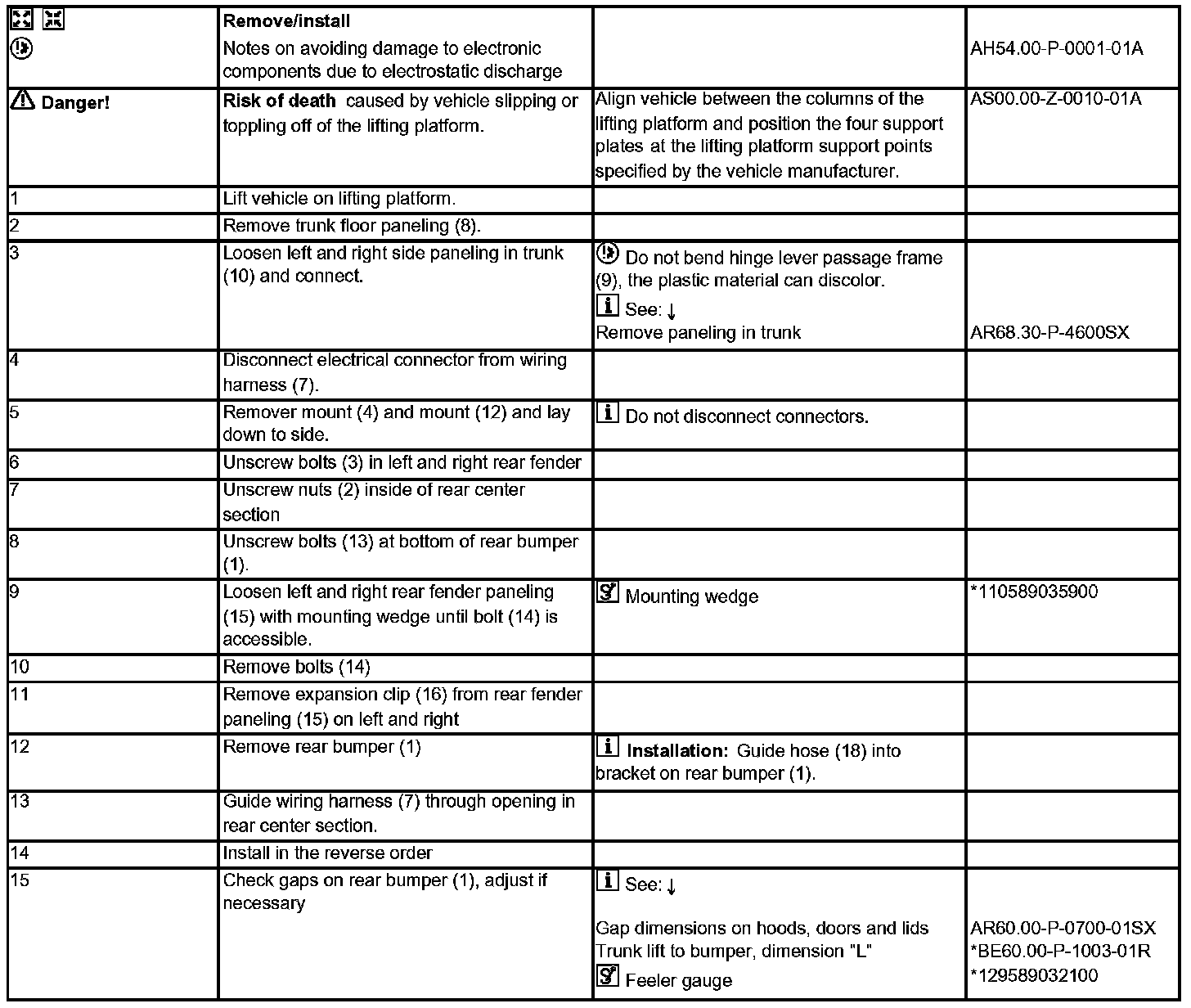

Steps 1 - 15:




Check Values For Gaps:

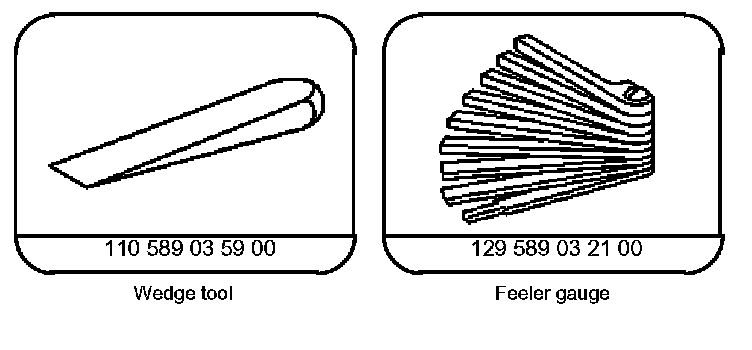

Special Tools:
