Overhaul



AR88.20-P-2100SX Disassemble/Assemble Rear Bumper

Component Identification:

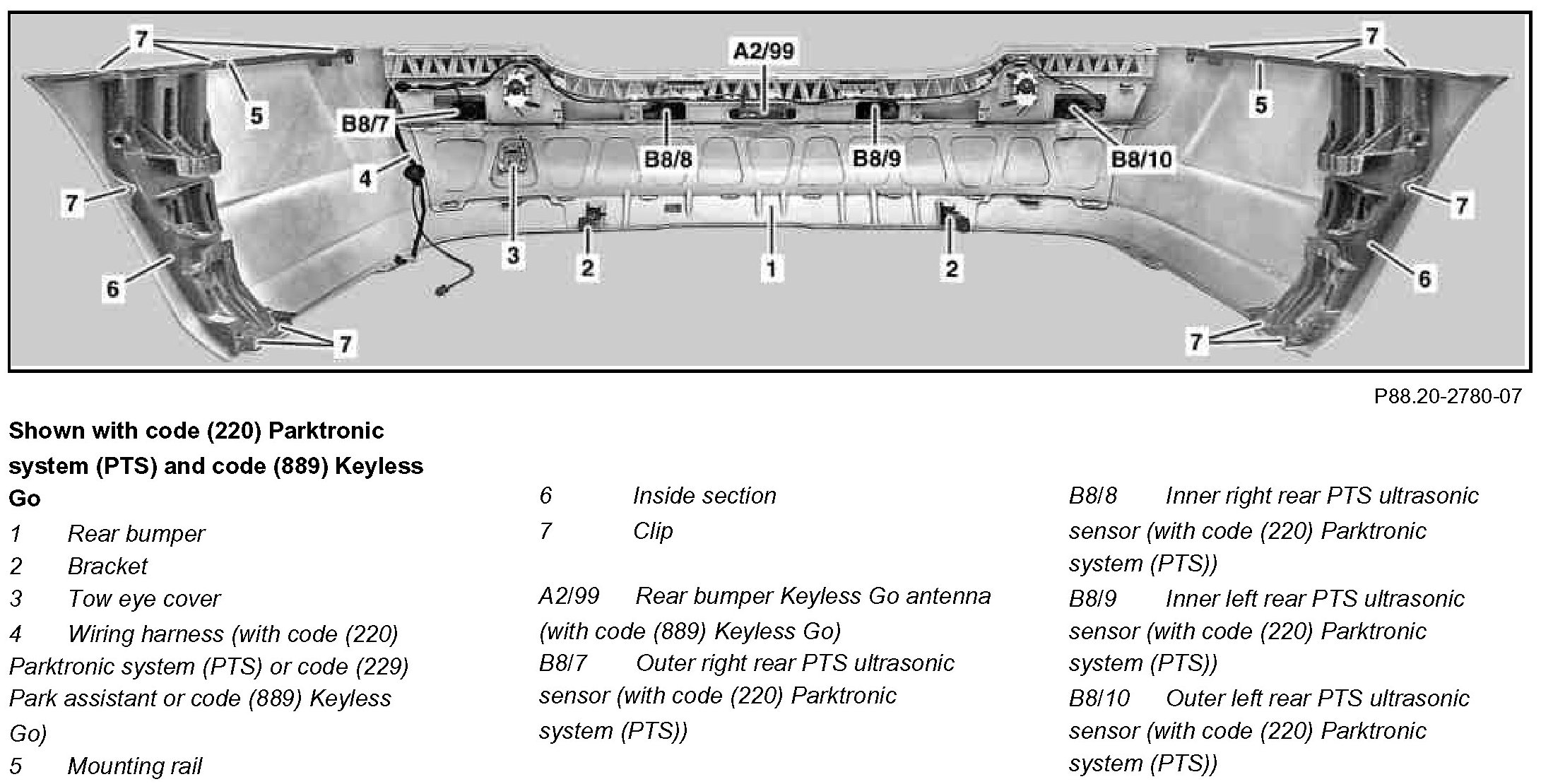

Component Identification:

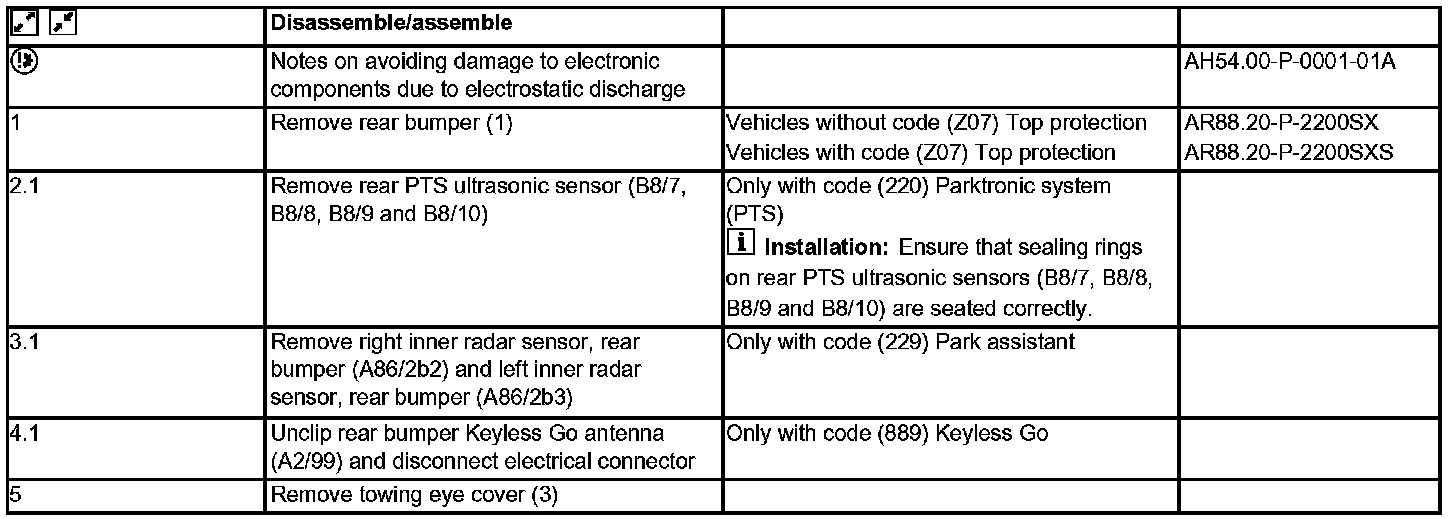

Steps 1 - 5:

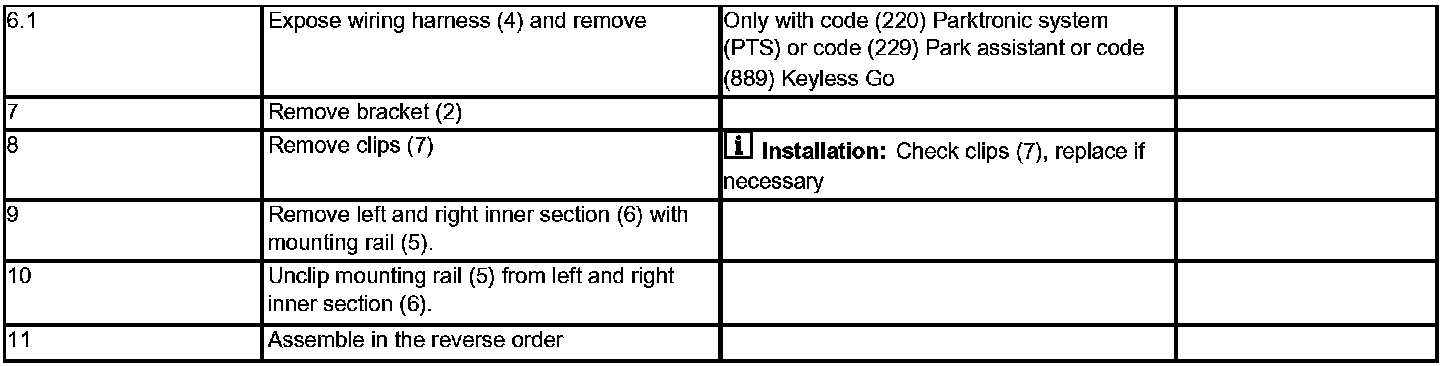

Steps 6 - 11:
