Removal and Replacement

AR88.20-P-2000SX Remove/install Front Bumper

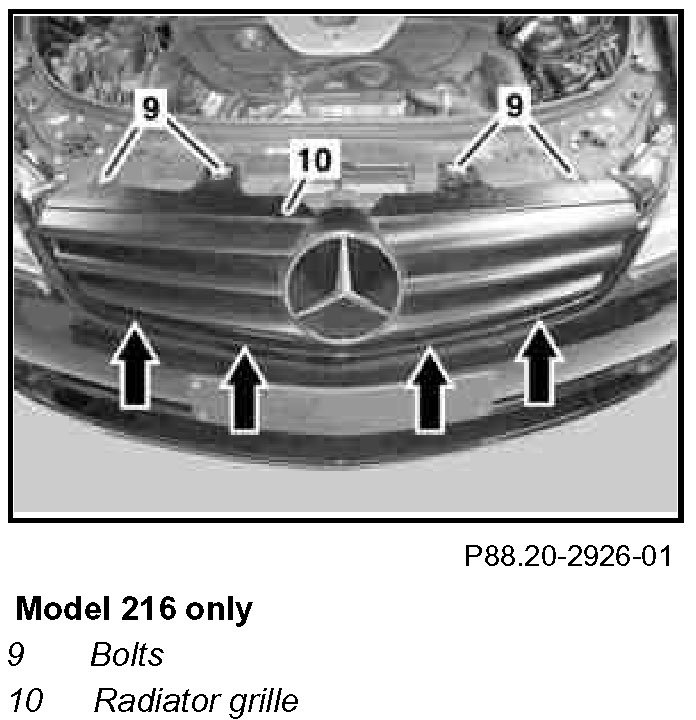

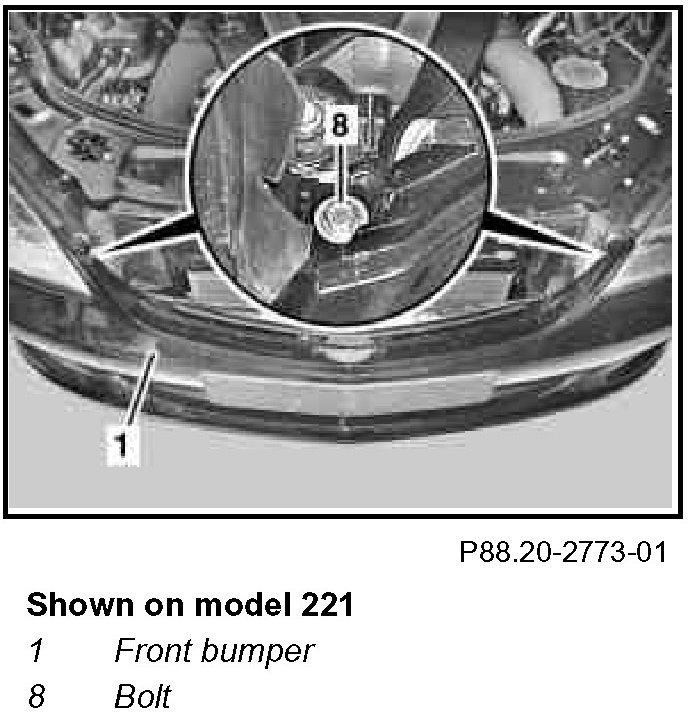

Component Identification:

Component Identification:

Component Identification:

Component Identification:

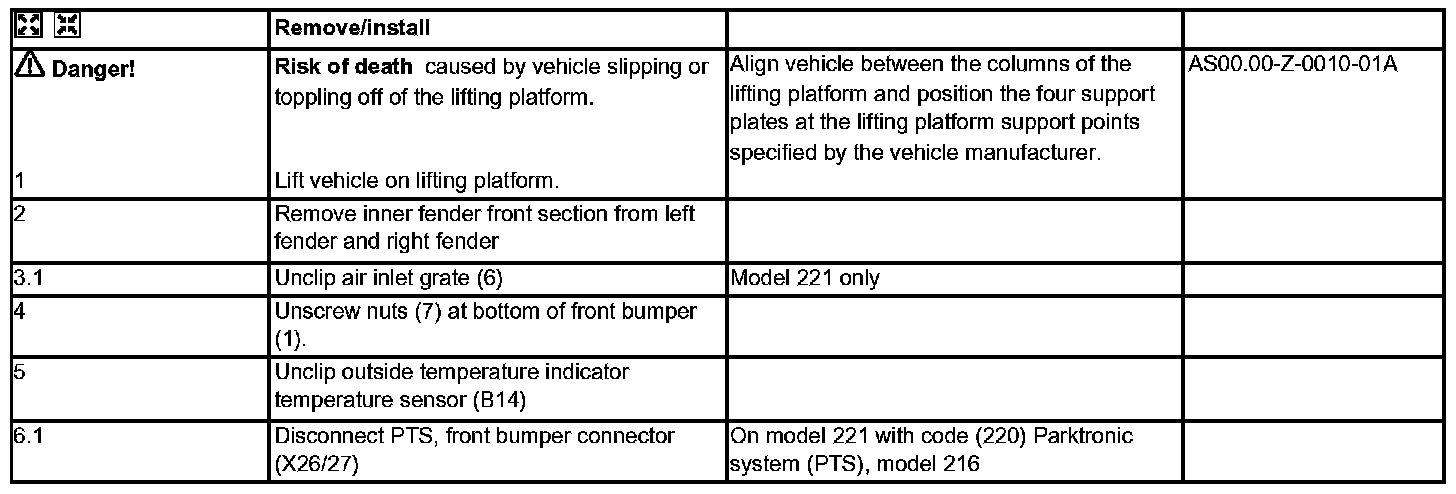

Steps 1-6.1:

Steps 6.2-15:

Check Values For Gaps:

Special Tools:
