AR82.20-P-1000SX Remove/Install Overhead Control Panel Control Unit



AR82.20-P-1000SX Remove/Install Overhead Control Panel Control Unit
- except CODE (Z07) Top protection [model 221]


Component Identification:

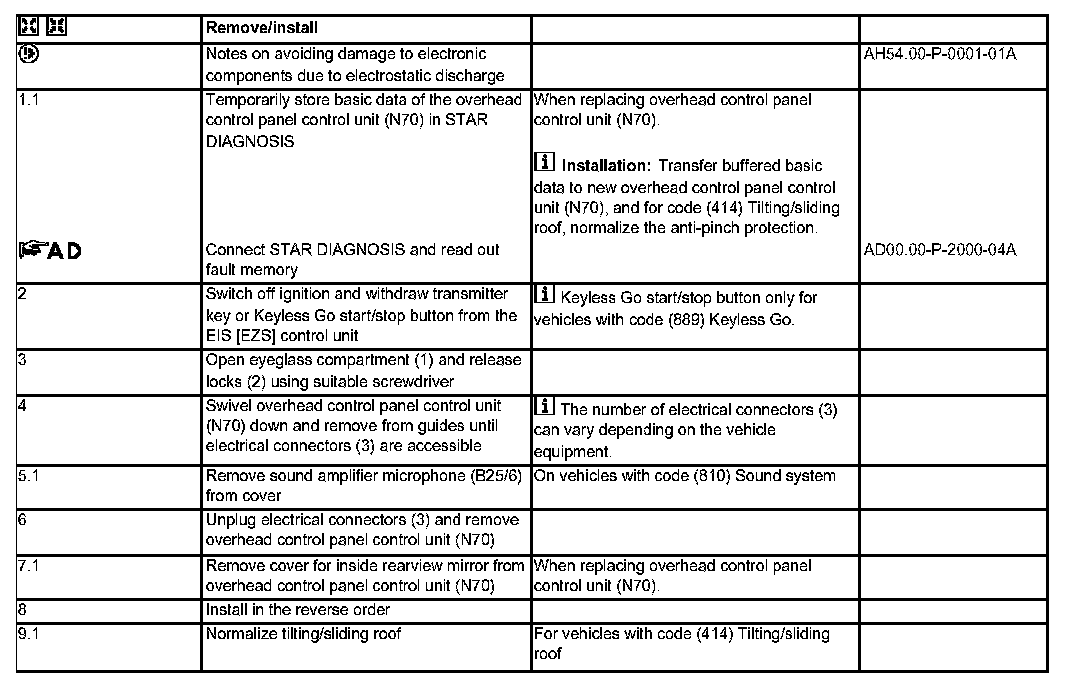

Steps 1.1 - 9.1:
