AR54.21-P-0500SXH Remove/Install Front Central Operating Unit
AR54.21-P-0500SXH Remove/Install Front Central Operating Unit
AR54.21-P-0500SXH Remove/install Front Central Operating Unit

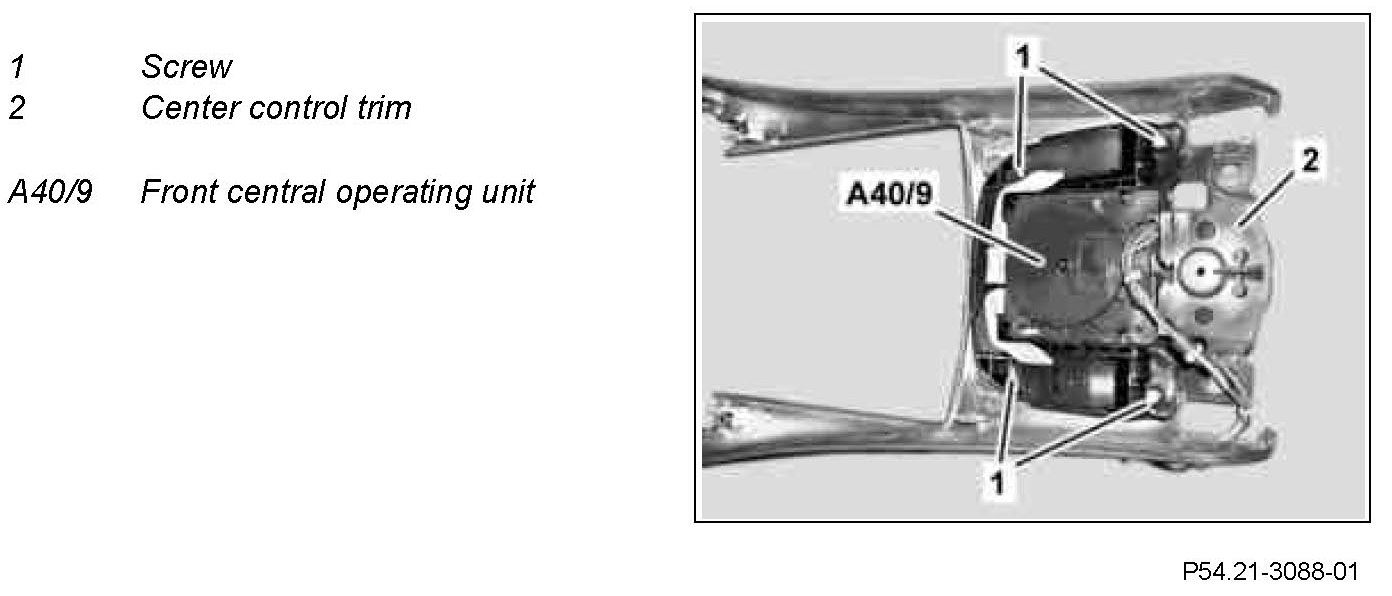

Component Identification:

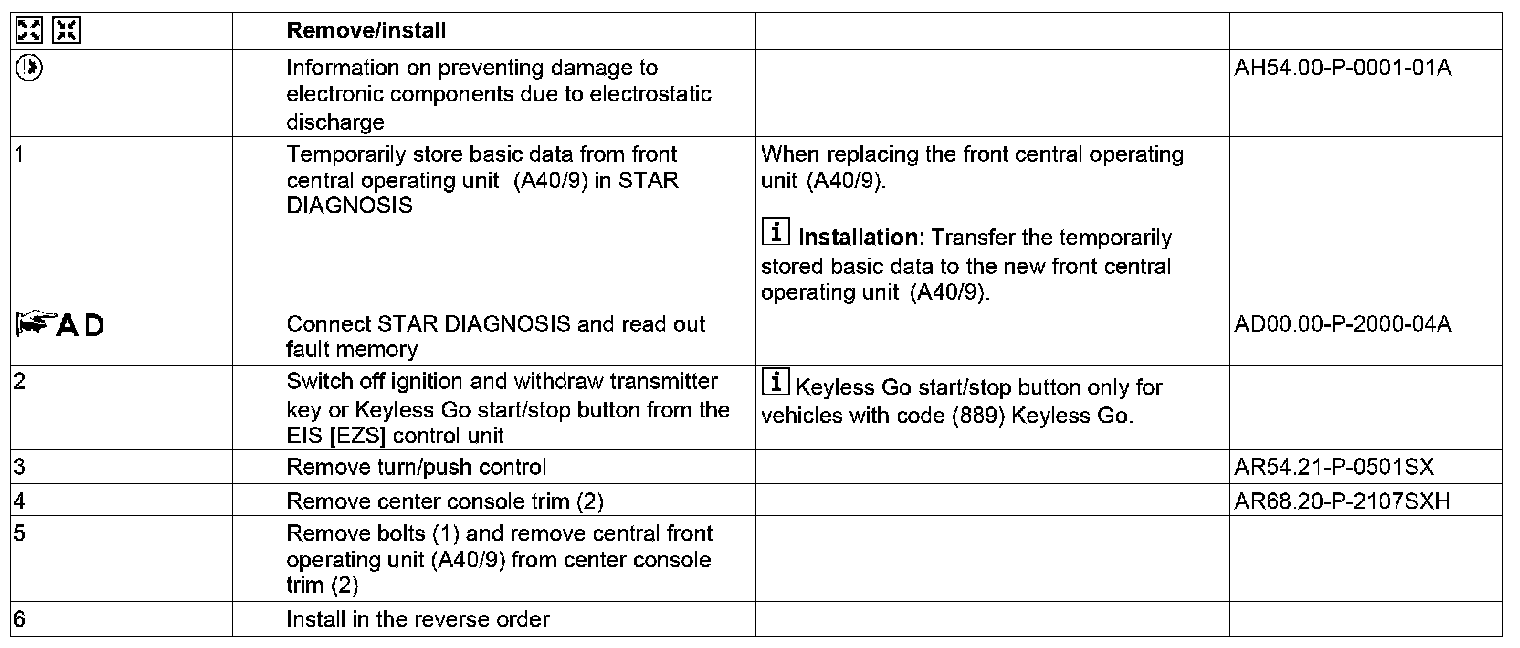

Steps 1-6:
