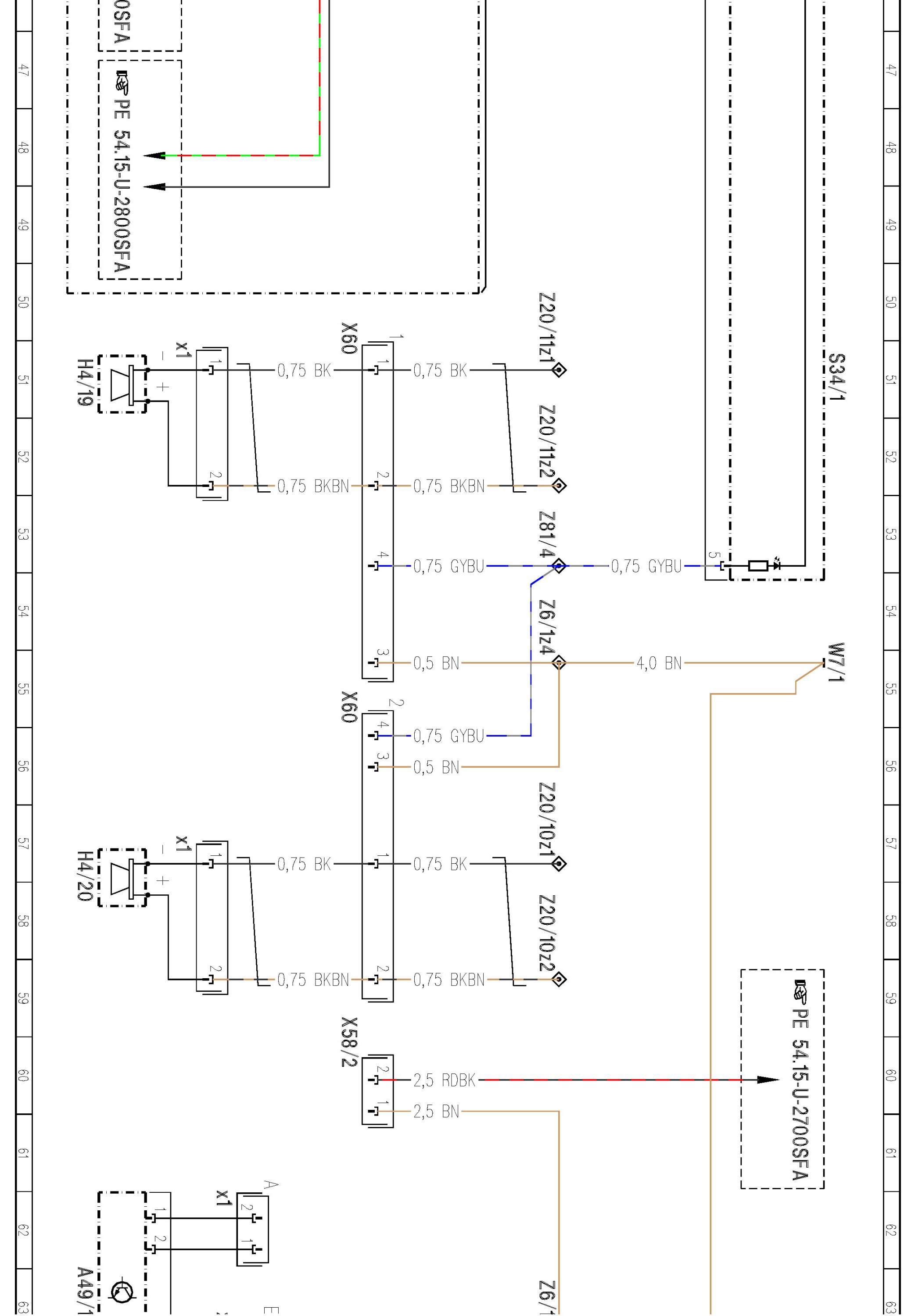

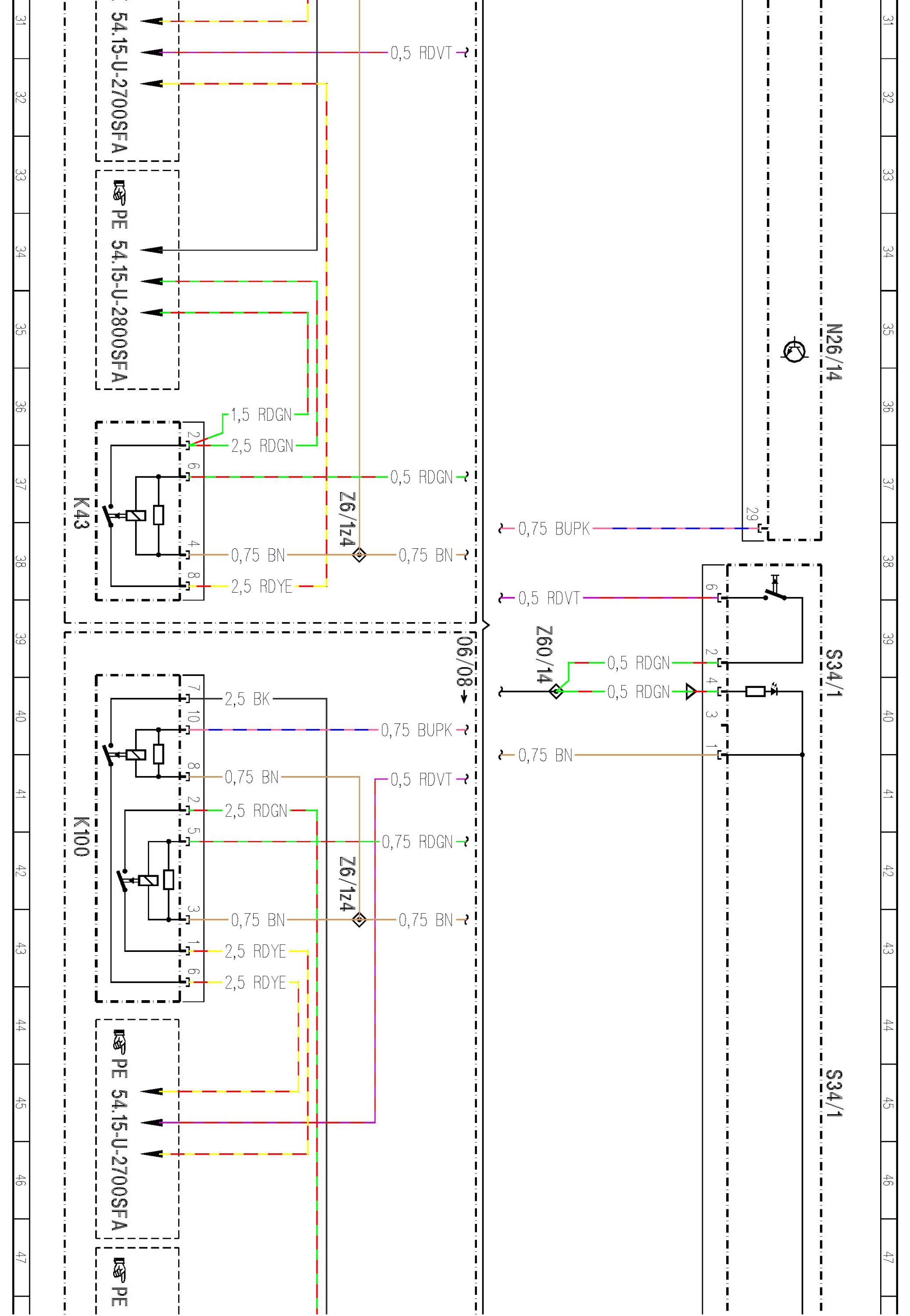

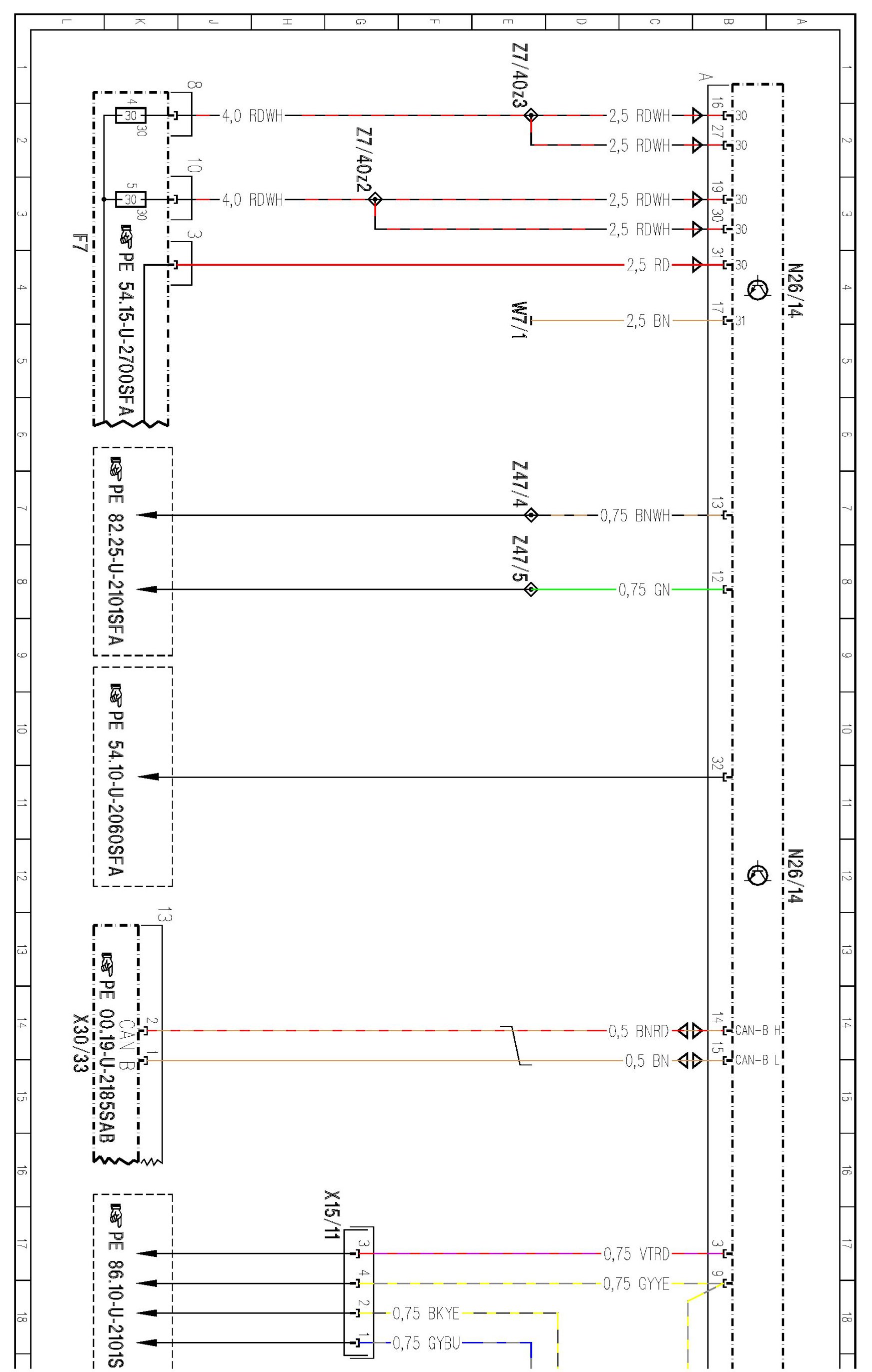

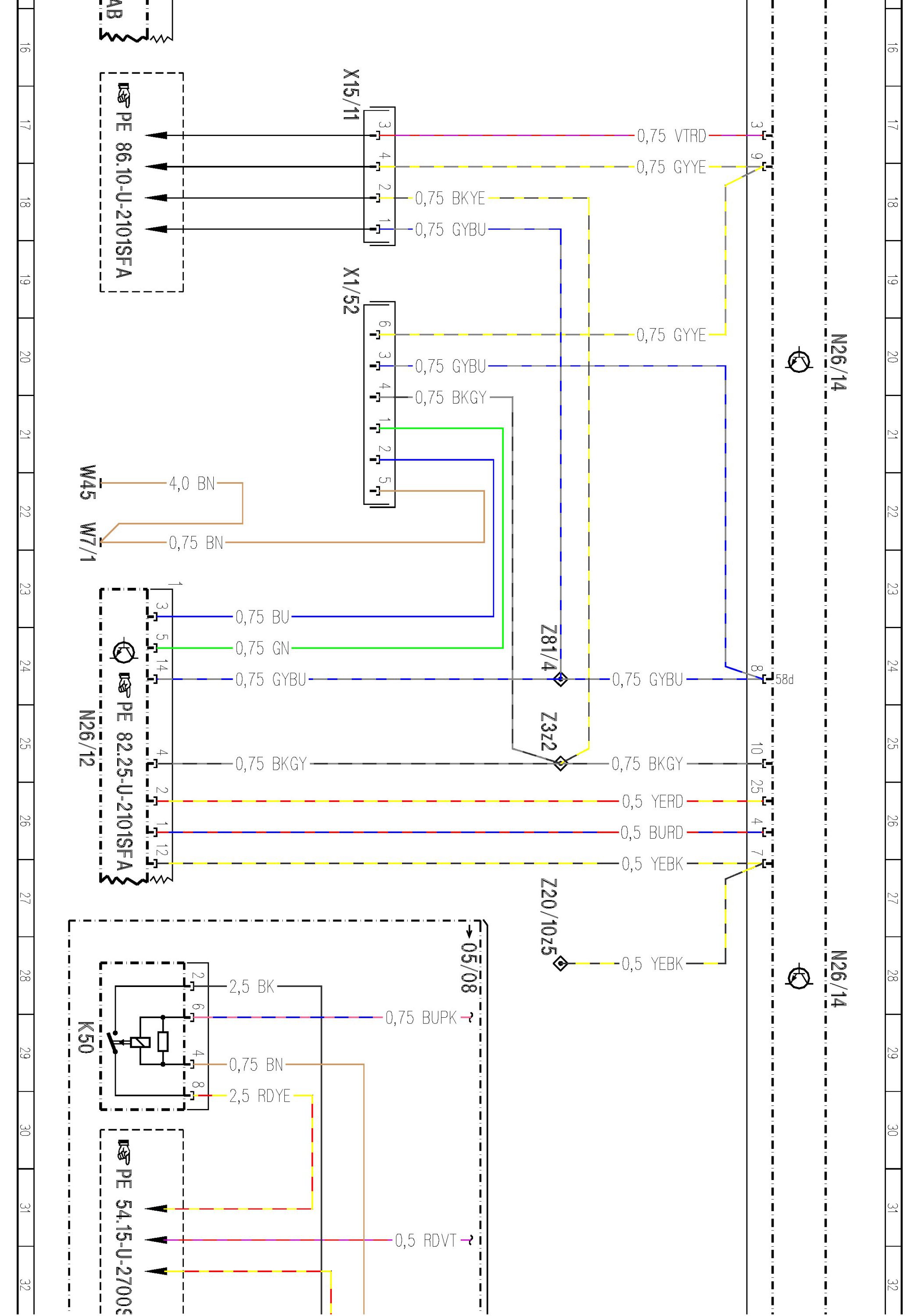

PE54.21-P-2105SAA Wiring Diagram, Special Vehicle Multifunction Control Unit (SVMCU [MSS])

PE54.21-U-2105SFA Special Vehicle Multifunction Control Module (SVMCM)

MODEL 221
- with CODE (Z07) Top protection
- Control unit N26/14



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
