AP86.10-P-8654-02SX Check Filling Pressure

AP86.10-P-8654-02SX Check Filling Pressure
- with CODE (Z07) Top protection and emergency fresh air system

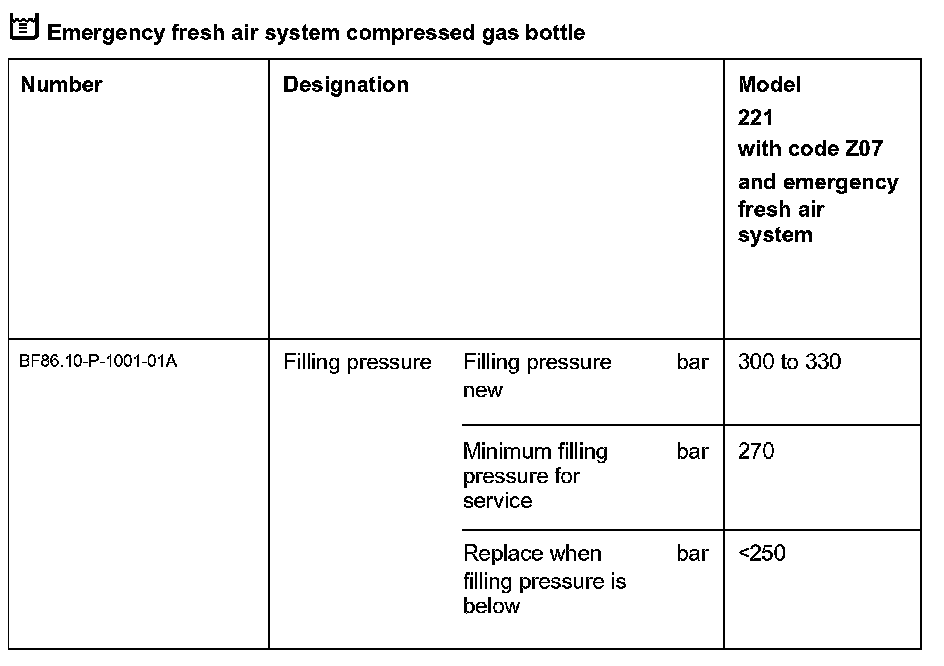

Emergency Fresh Air System Compressed Gas Bottle:

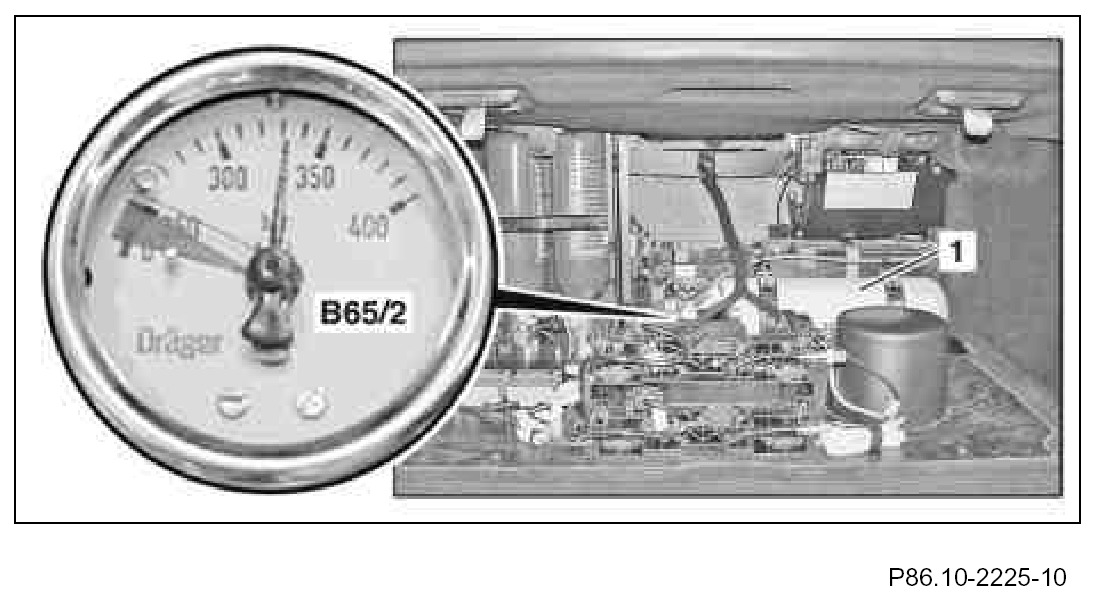

1. Read off filling pressure of pressure gas cylinder (1) on pressure gauge of the pressure sensor for the oxygen cylinders (B65/2) and note filling pressure on the form "SERVICE OVERVIEW for ASSYST PLUS".
