Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Service and Repair >> Removal and Replacement >> AR86.10-P-0152SXS Remove/Install Emergency Fresh Air System Manual Actuation Switch

AR86.10-P-0152SXS Remove/Install Emergency Fresh Air System Manual Actuation Switch



AR86.10-P-0152SXS Remove/Install Emergency Fresh Air System Manual Actuation Switch
- with CODE (Z07) Top protection
- with emergency fresh air system

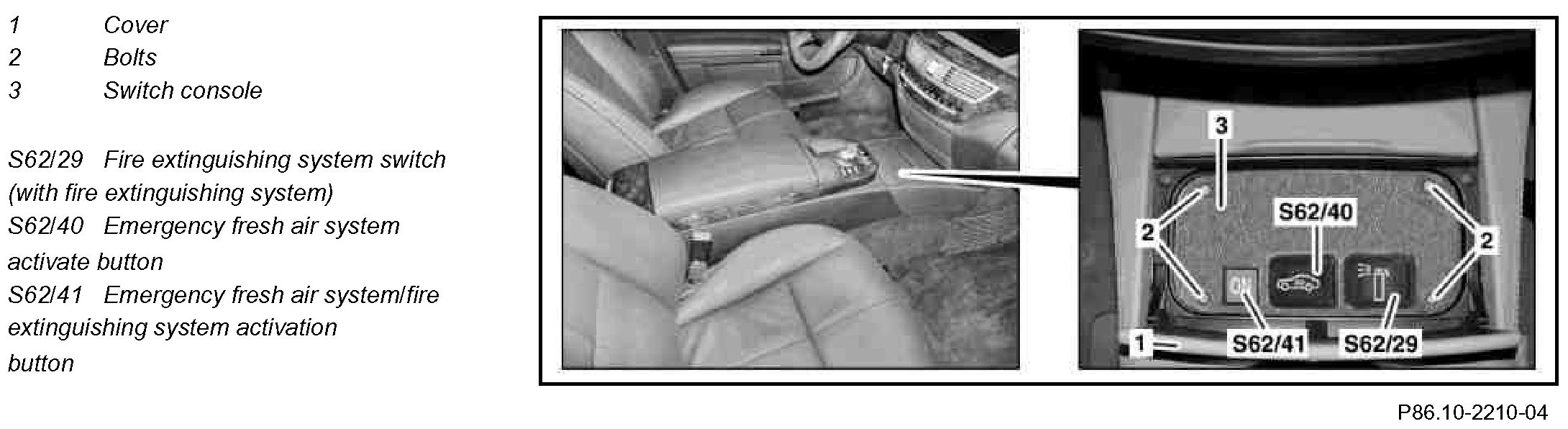

Component Identification:

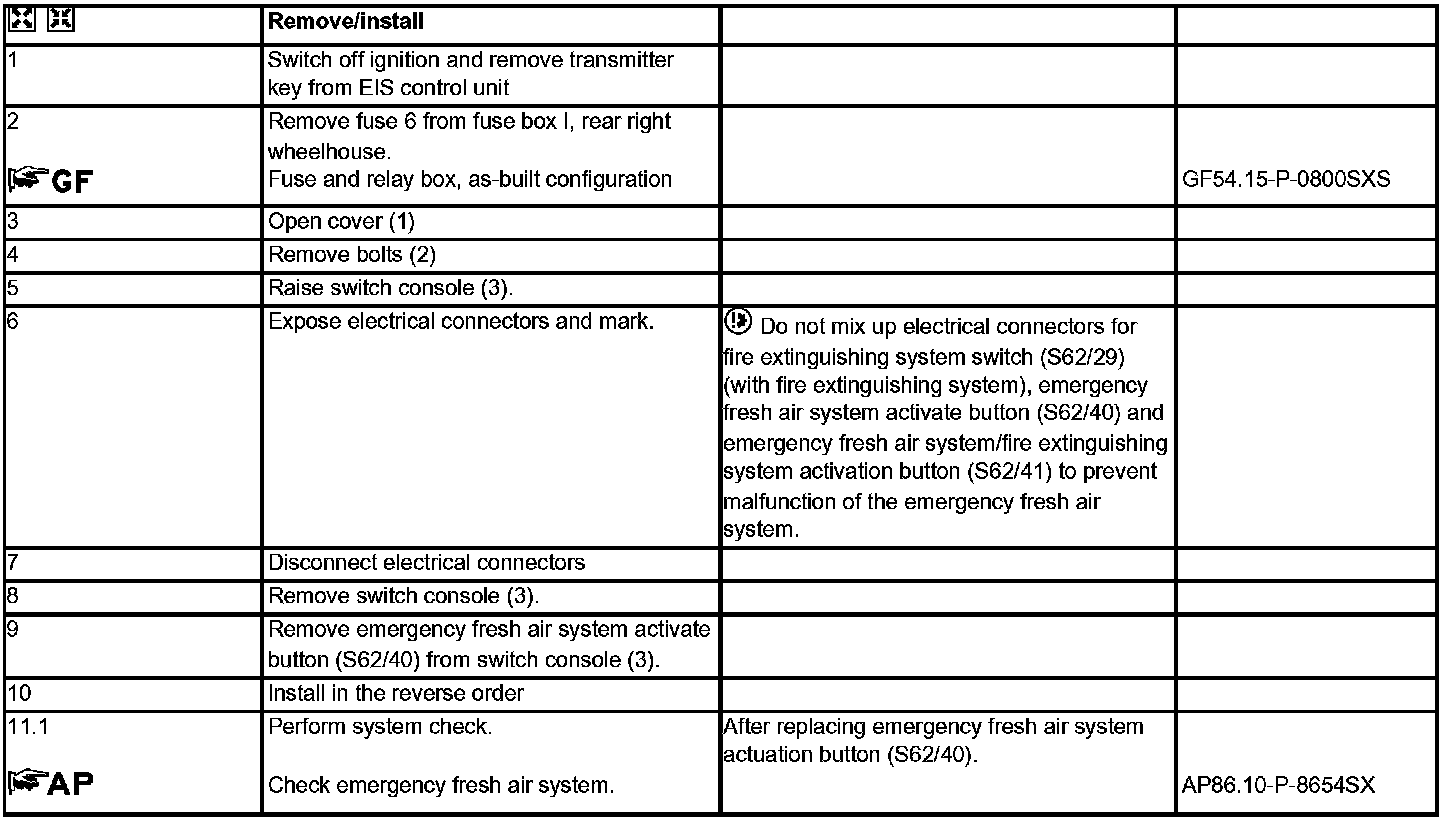

Steps 1 - 11.1:
