AR86.10-P-0150SXS Remove/Install Emergency Fresh Air System Control Unit



AR86.10-P-0150SXS Remove/Install Emergency Fresh Air System Control Unit
- with CODE (Z07) Top protection
- with emergency fresh air system

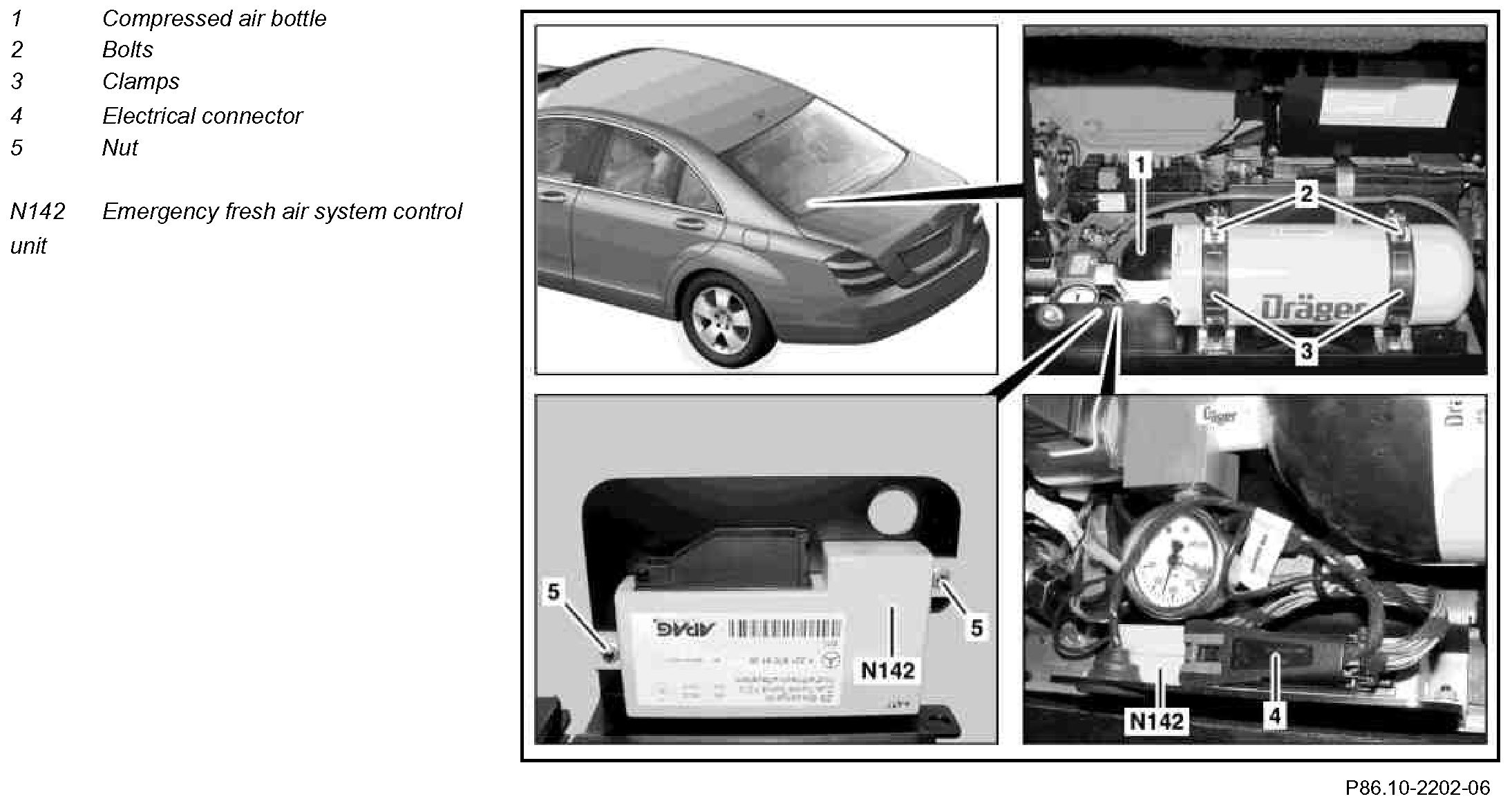

Component Identification:

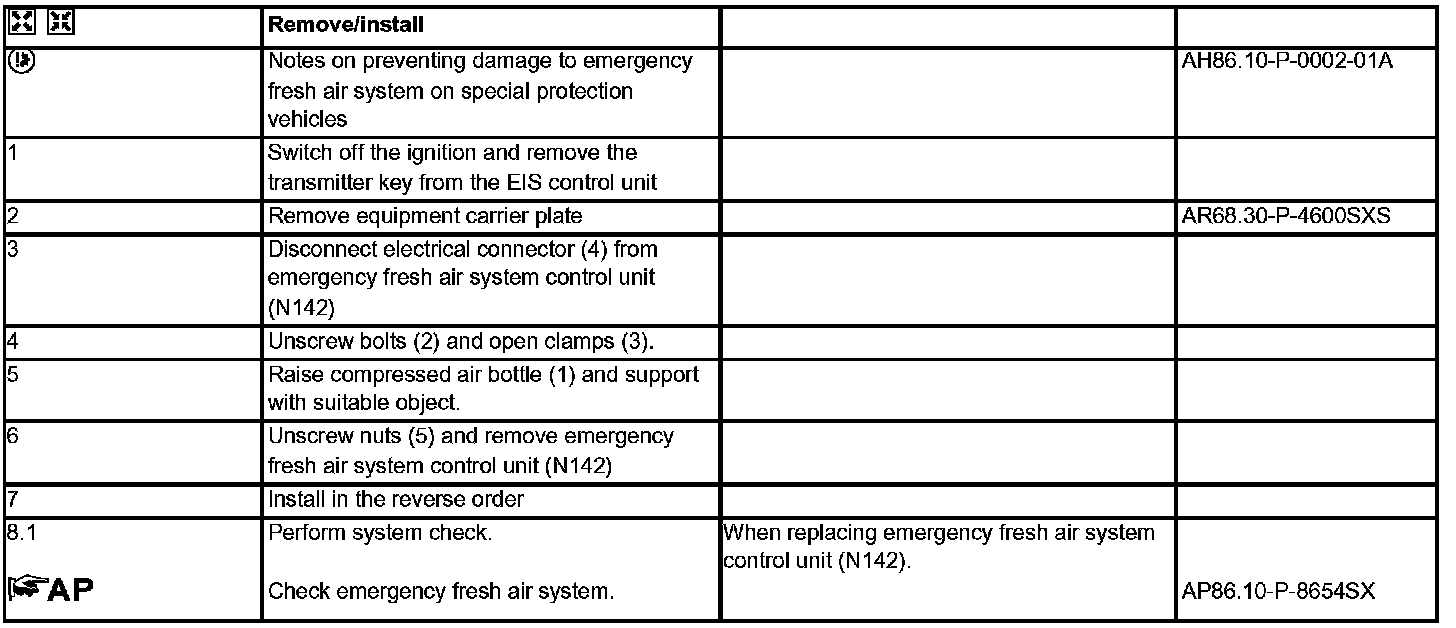

Steps 1 - 8.1:
