AR82.62-P-7874SX Remove/Install Loudspeakers In Rear Doors

AR82.62-P-7874SX Remove/Install Loudspeakers In Rear Doors
- except CODE (Z07) Top protection

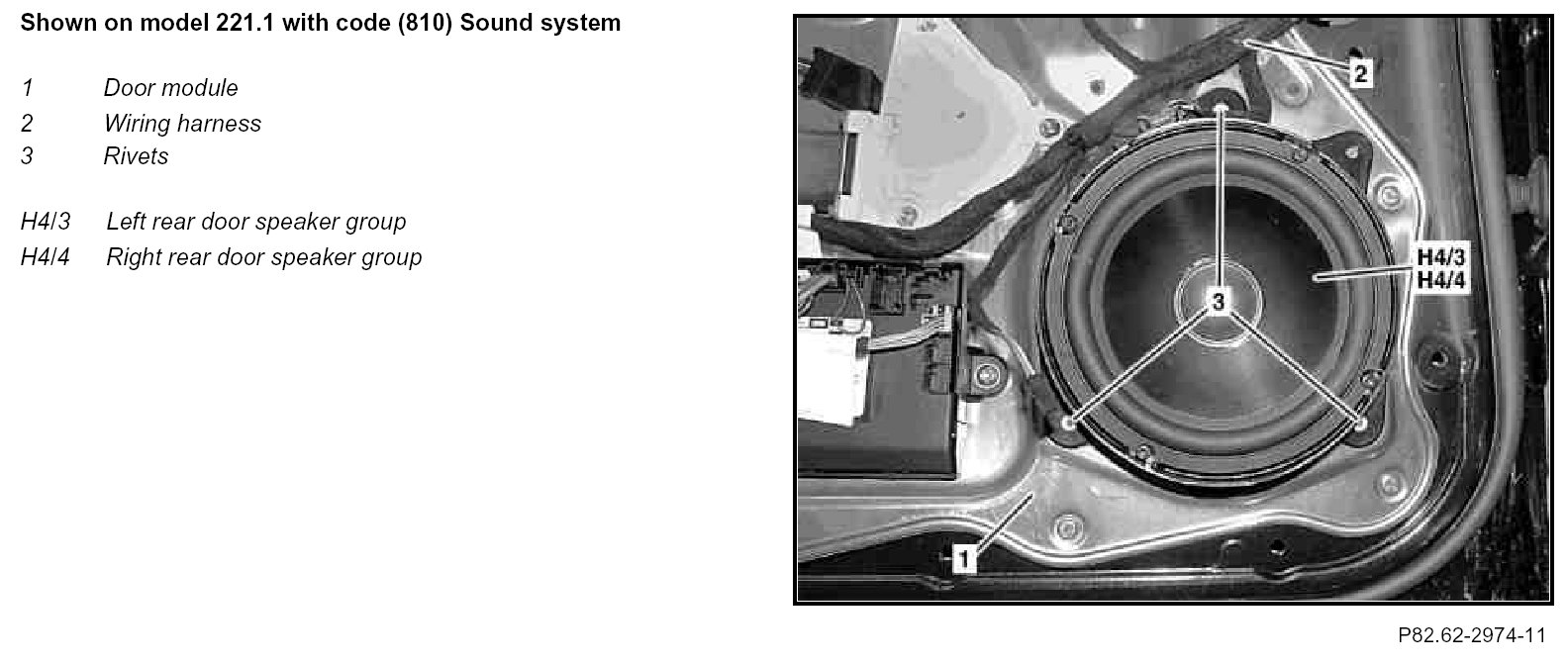

Component Identification:

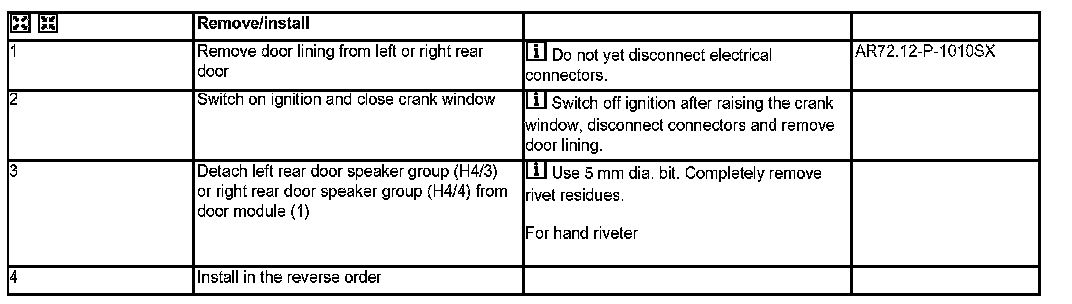

Steps 1 - 4:
