AR82.62-P-7845SX Remove/Install Loudspeakers In Front Doors



AR82.62-P-7845SX Remove/Install Loudspeakers In Front Doors
- except CODE (Z07) Top protection

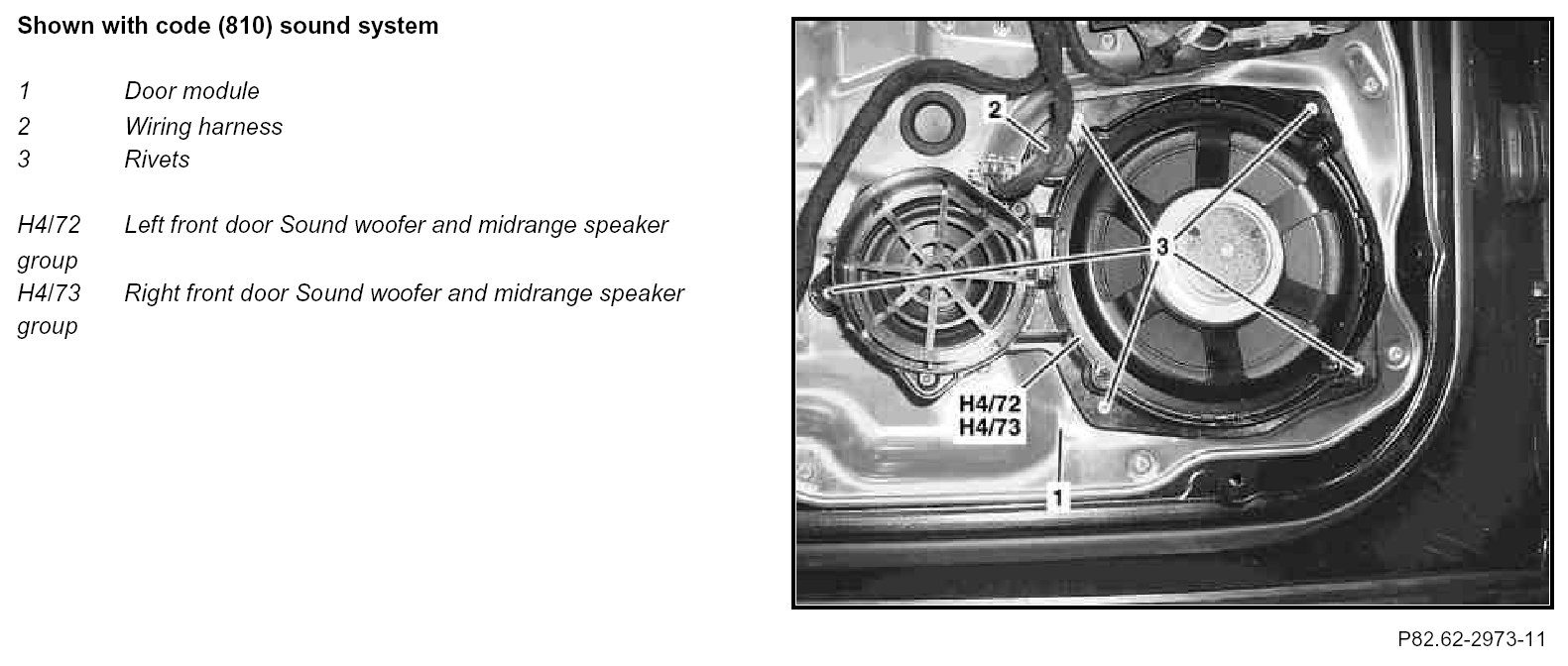

Component Identification:

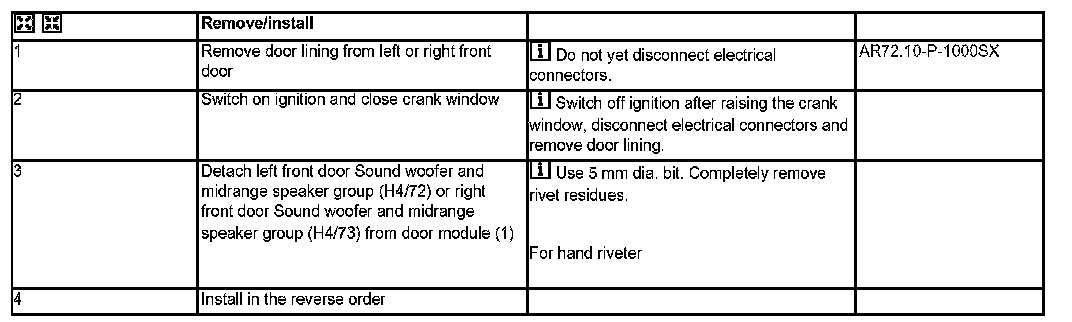

Steps 1 - 4:
