AR82.62-P-7839SXS Remove/Install Bass Module Speaker



AR82.62-P-7839SXS Remove/Install Bass Module Speaker
- with CODE (Z07) Top protection

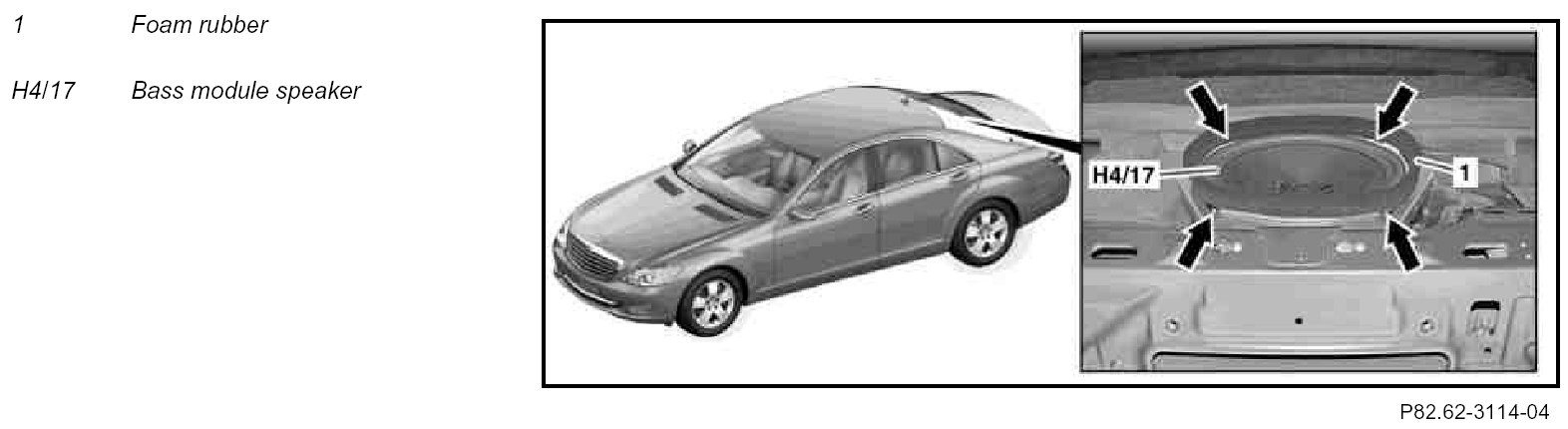

Component Identification:

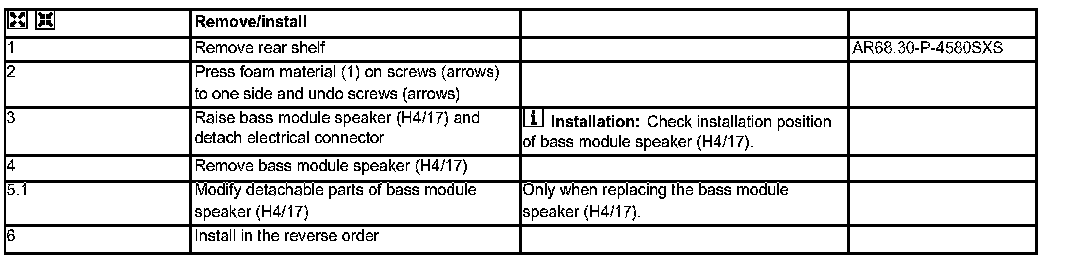

Steps 1 - 6:
