AR82.62-P-7839SX Remove/Install Bass Module Speaker
AR82.62-P-7839SX Remove/Install Bass Module Speaker
AR82.62-P-7839SX Remove/Install Bass Module Speaker

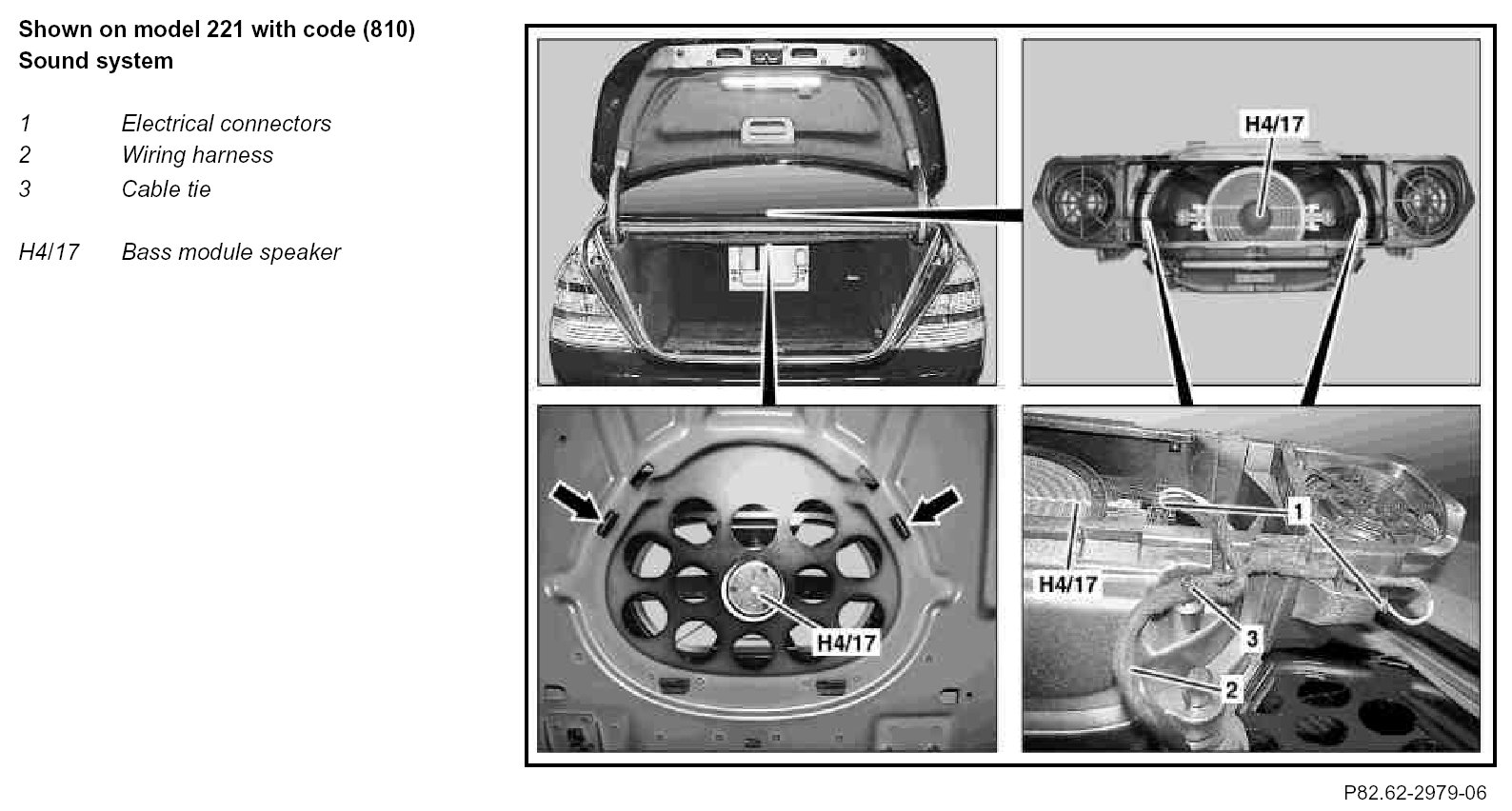

Component Identification:

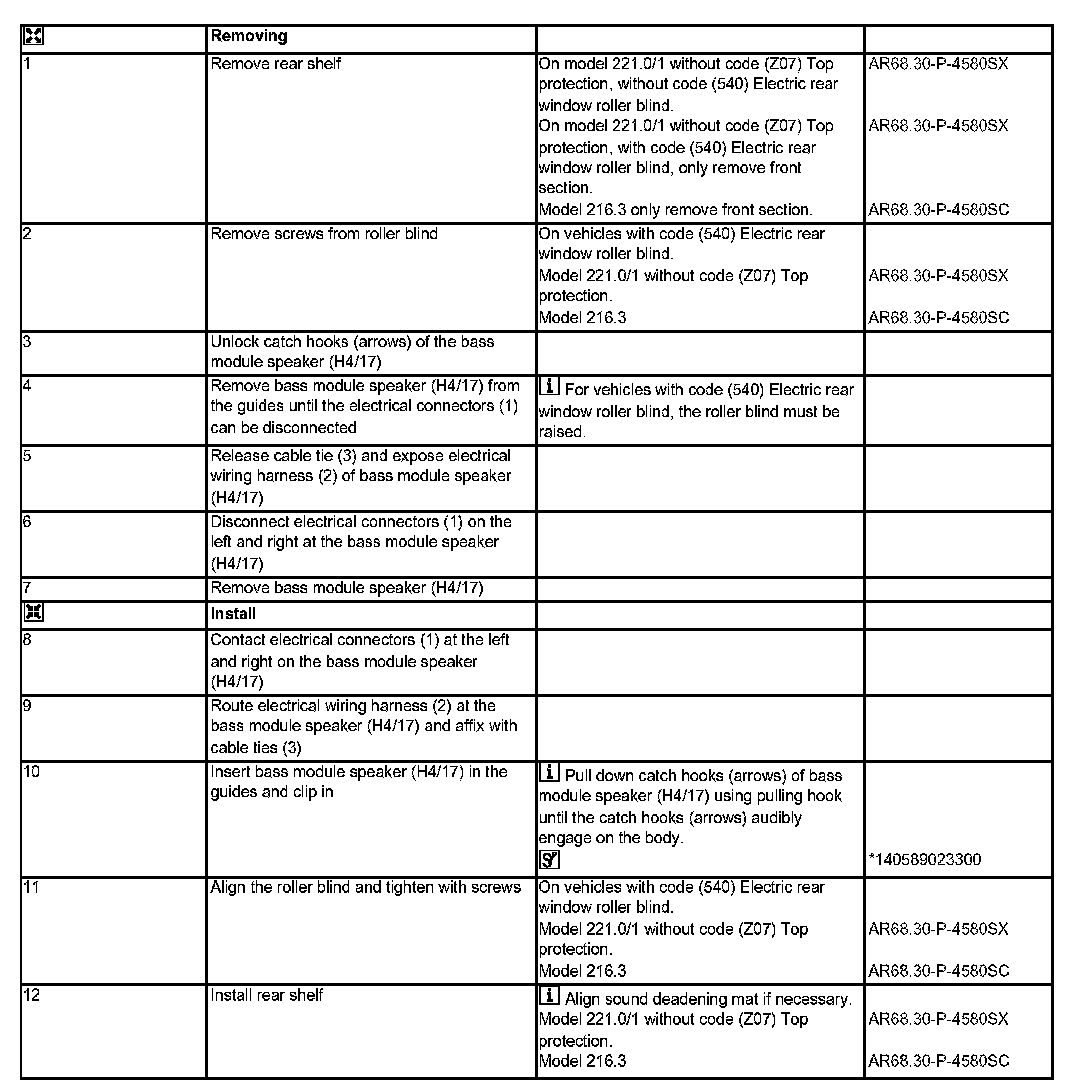

Steps 1 - 12:
Special Tools:
