AN82.62-P-0003-01SX Retrofit Volume Control

AN82.62-P-0003-01SX Retrofit Volume Control
- with CODE (406) Rear multicontour seat

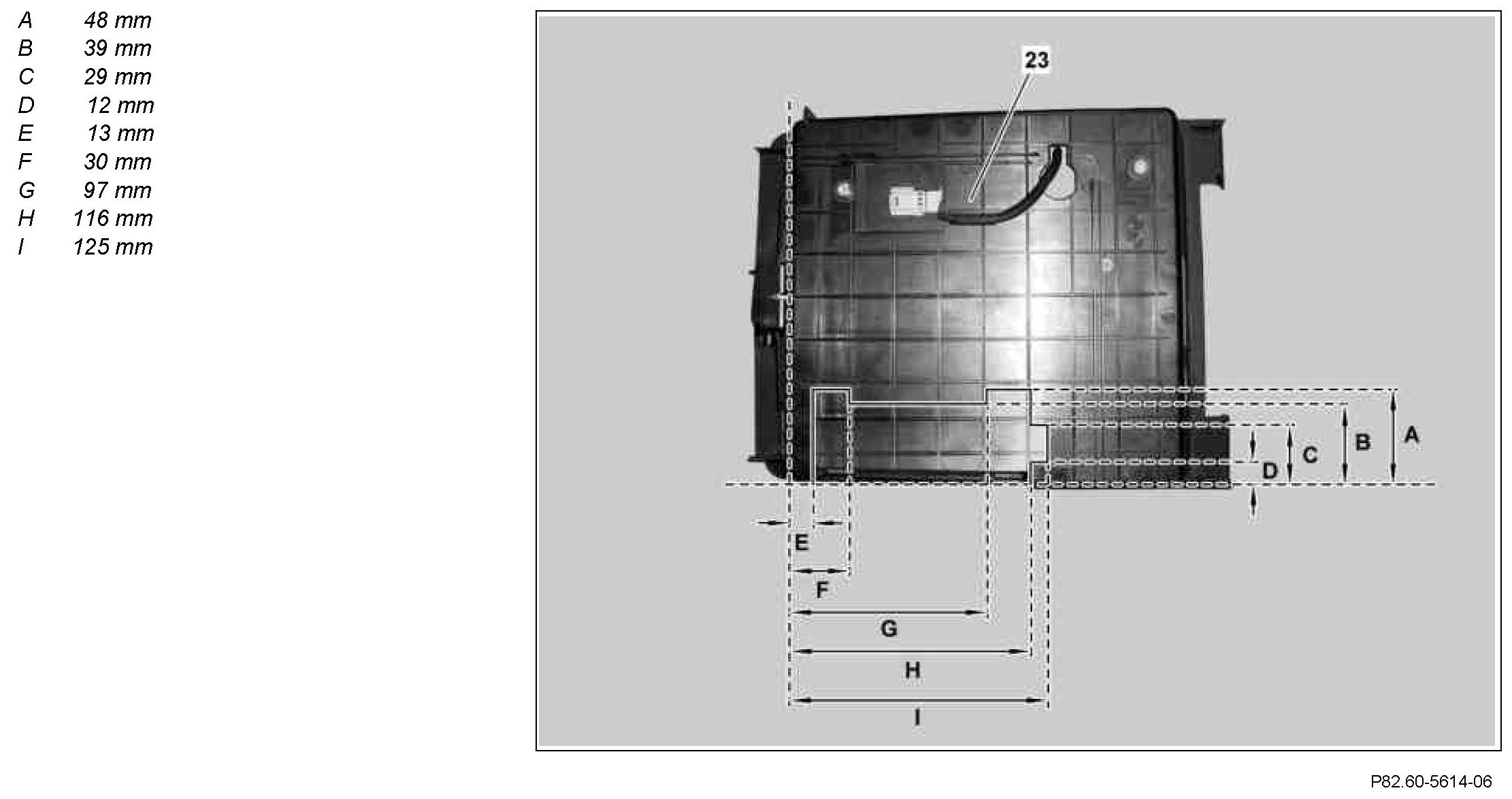

1 Work out dimensioned area at bottom of rear center armrest stowage tray (23) as per picture.

Component Identification:

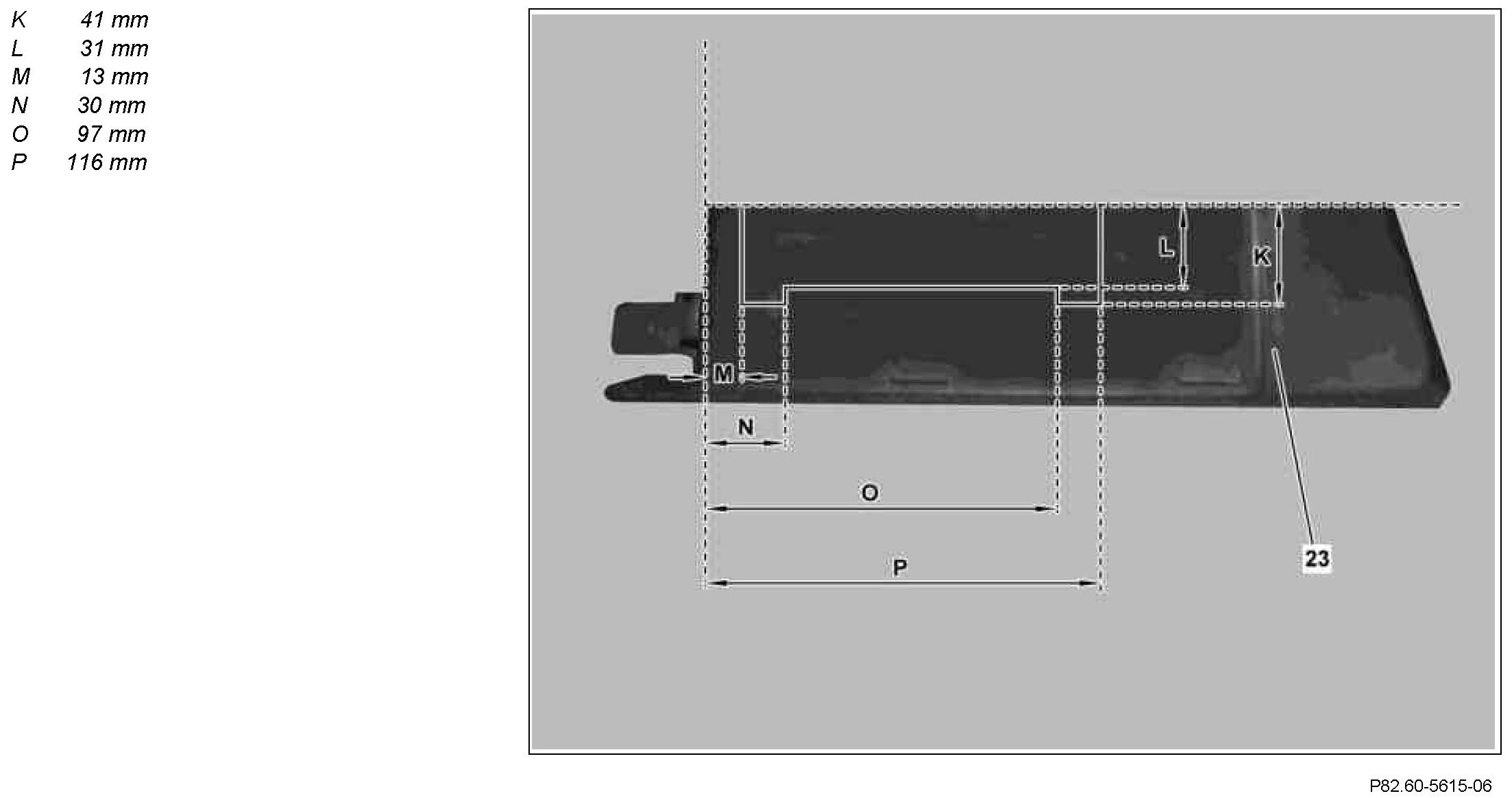

2 Work out dimensioned area at side of rear center armrest stowage tray (23) as per picture.

Component Identification:

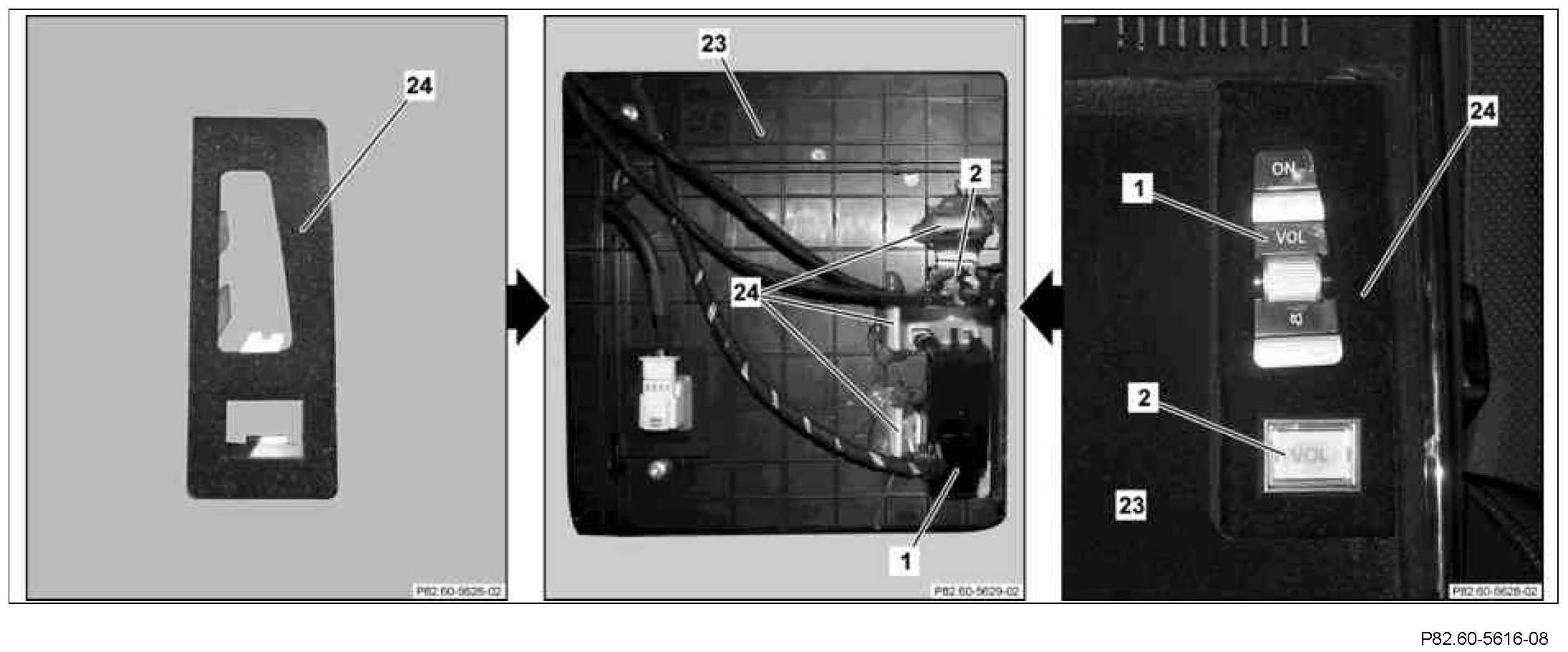

3 Install rear volume control (1) and rear volume control switch (2) into rear volume control mounting console (24).
4 Install rear volume control mounting console (24) into stowage tray (23) as per picture.

Retaining lugs of rear volume control mounting console (24) must latch in stowage tray (23).
