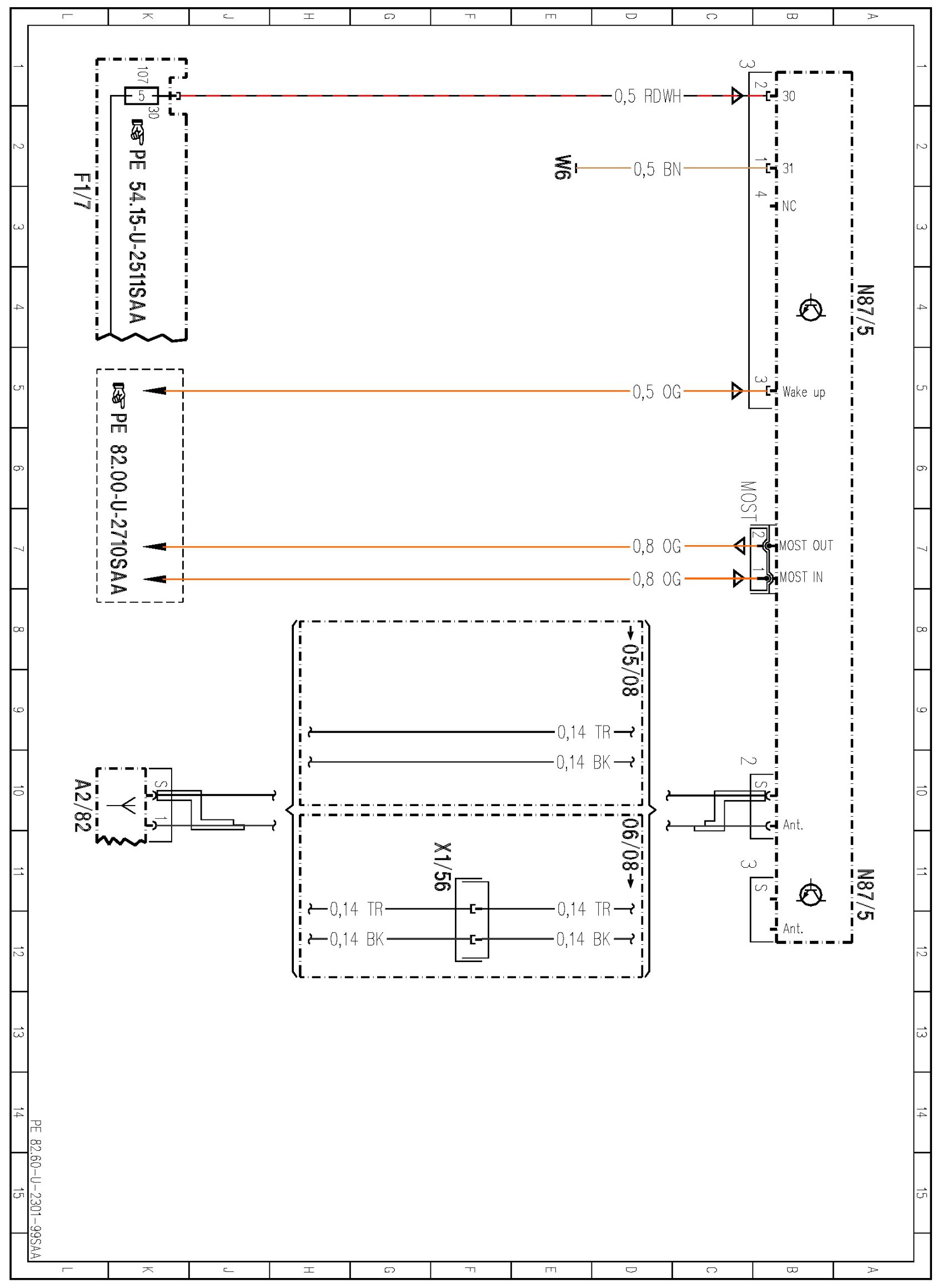

PE82.60-U-2301SAA Satellite Digital Audio Radio System (SDAR) Wiring Diagram



PE82.60-U-2301SAA Satellite Digital Audio Radio System (SDAR) Wiring Diagram

MODEL 221

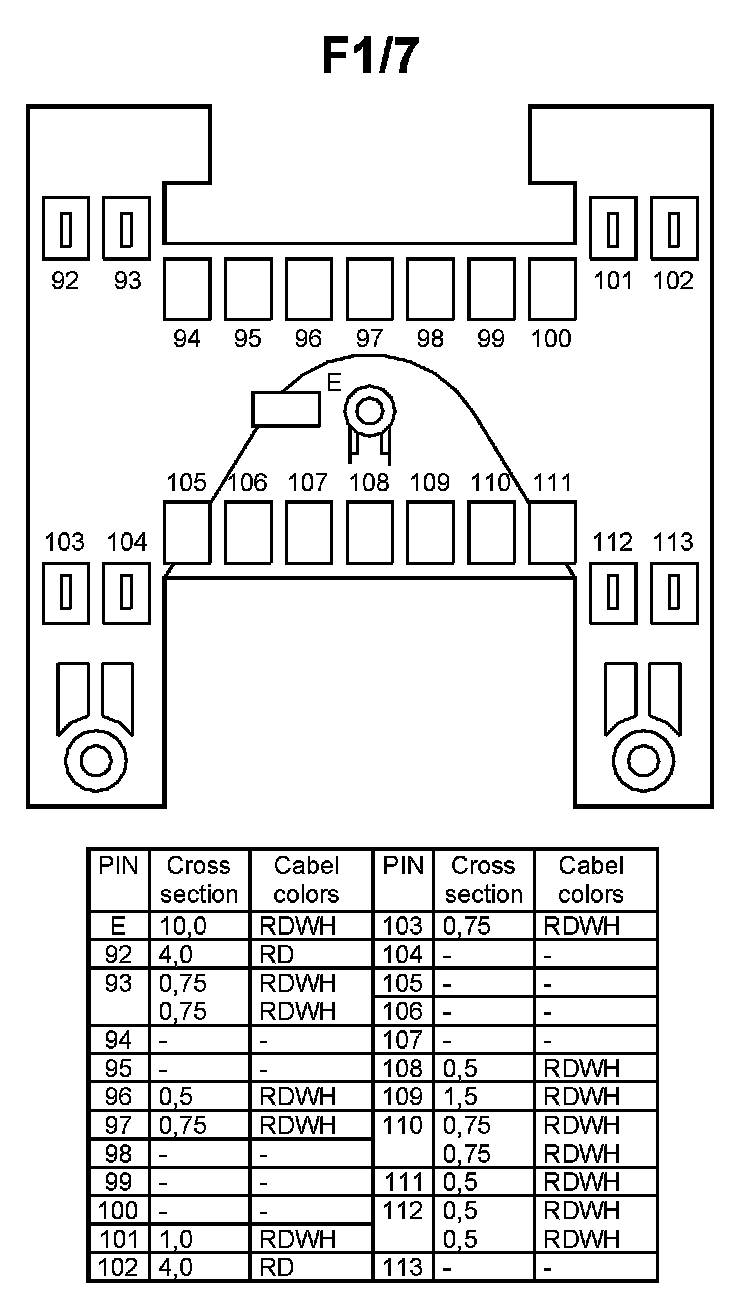

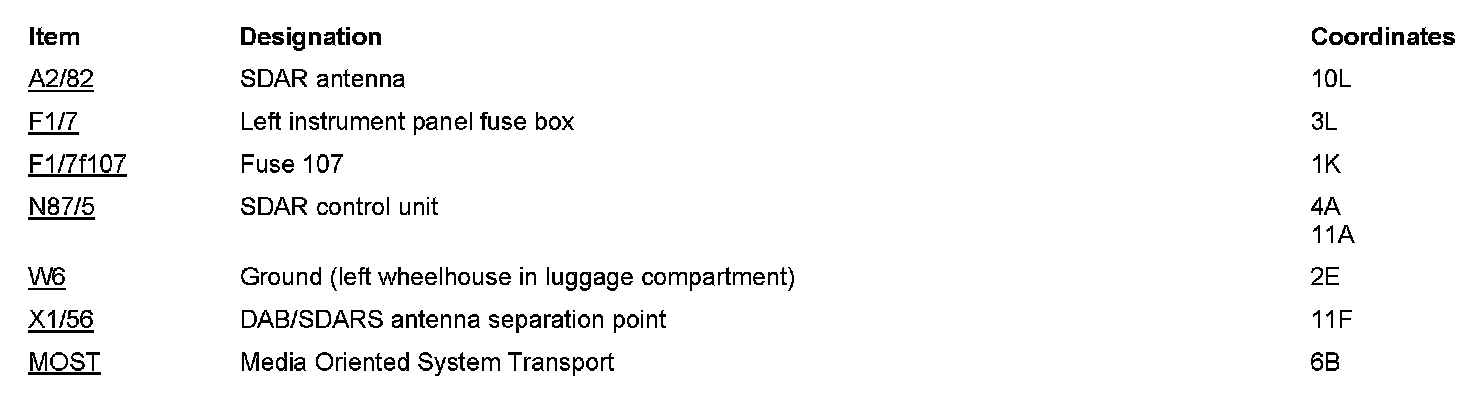

- Control unit N87/5















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
