GF82.60-P-5000LE Media Interface Control Unit, Component Description

GF82.60-P-5000LE Media Interface Control Unit, Component Description
- with CODE (518) Media interface

Component Identification:

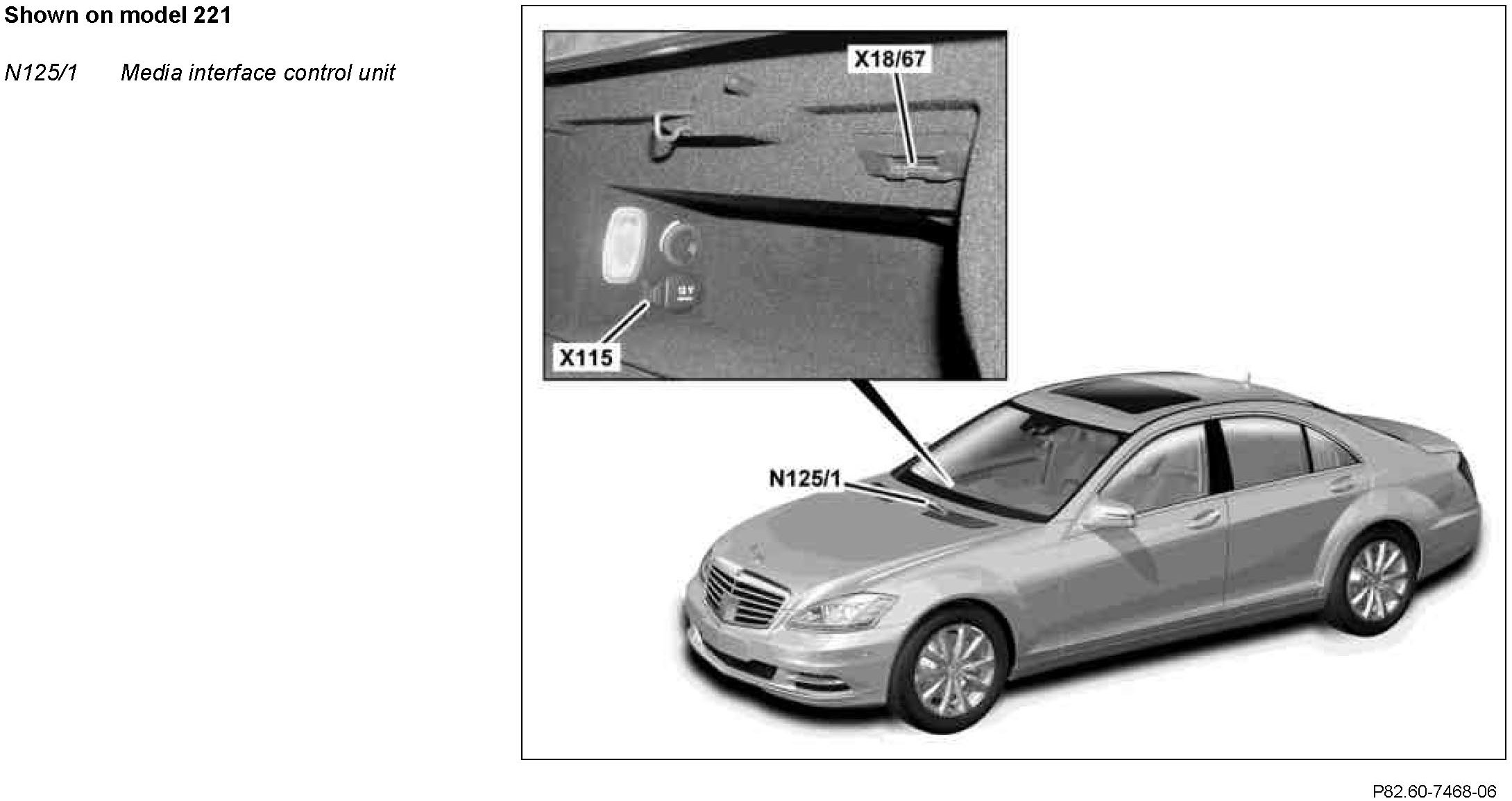

Location
The media interface control unit is located behind the glove box.

Task
The media interface control unit serves as universal unit connecting point to connect portable devices to the audio system. In this context, the media interface control unit has the following tasks:
^ Reading in of signals
^ Transmitting signals

Reading in of signals
Signals are read in via the following connections:
^ Direct lines
^ Media Oriented System Transport (MOST)

Direct lines
The following signals are read in via direct lines:
- Audio signals and data over media interface connector (X18/70)
- Electronic wake-up for MOST

MOST
The following signals are read in via MOST:
- Control and operating signals from COMAND control unit (A40/3)

Transmitting signals
The signals are transmitted via the following connections:
^ Direct line
^ MOST

Direct line
The media interface control unit transmits the control and operating signals via the media interface connector to the connected portable devices.

MOST
The media interface control unit transmits the control and operating signals to the COMAND control unit via MOST.
