AN82.25-P-2000SX Retrofit Electrical Preinstallation For Rental Vehicles
AN82.25-P-2000SX Retrofit Electrical Preinstallation For Rental Vehicles
- except CODE (498) Japan version
- except CODE (494) USA version
- except CODE (550) Trailer hitch
- except CODE (810) Sound system
- except CODE (990) AMG vehicles
- except 4MATIC vehicles

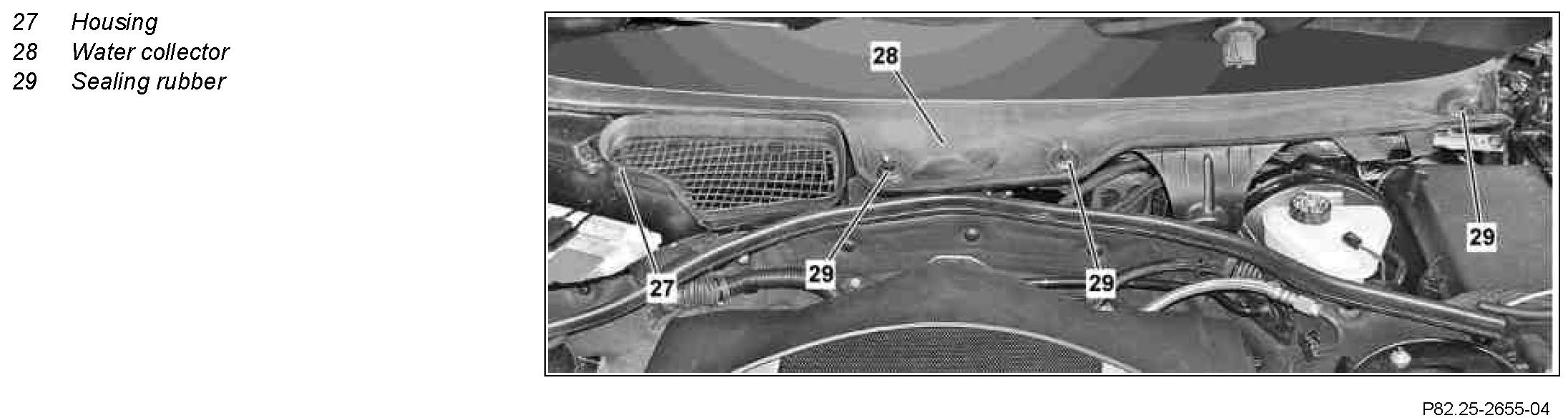

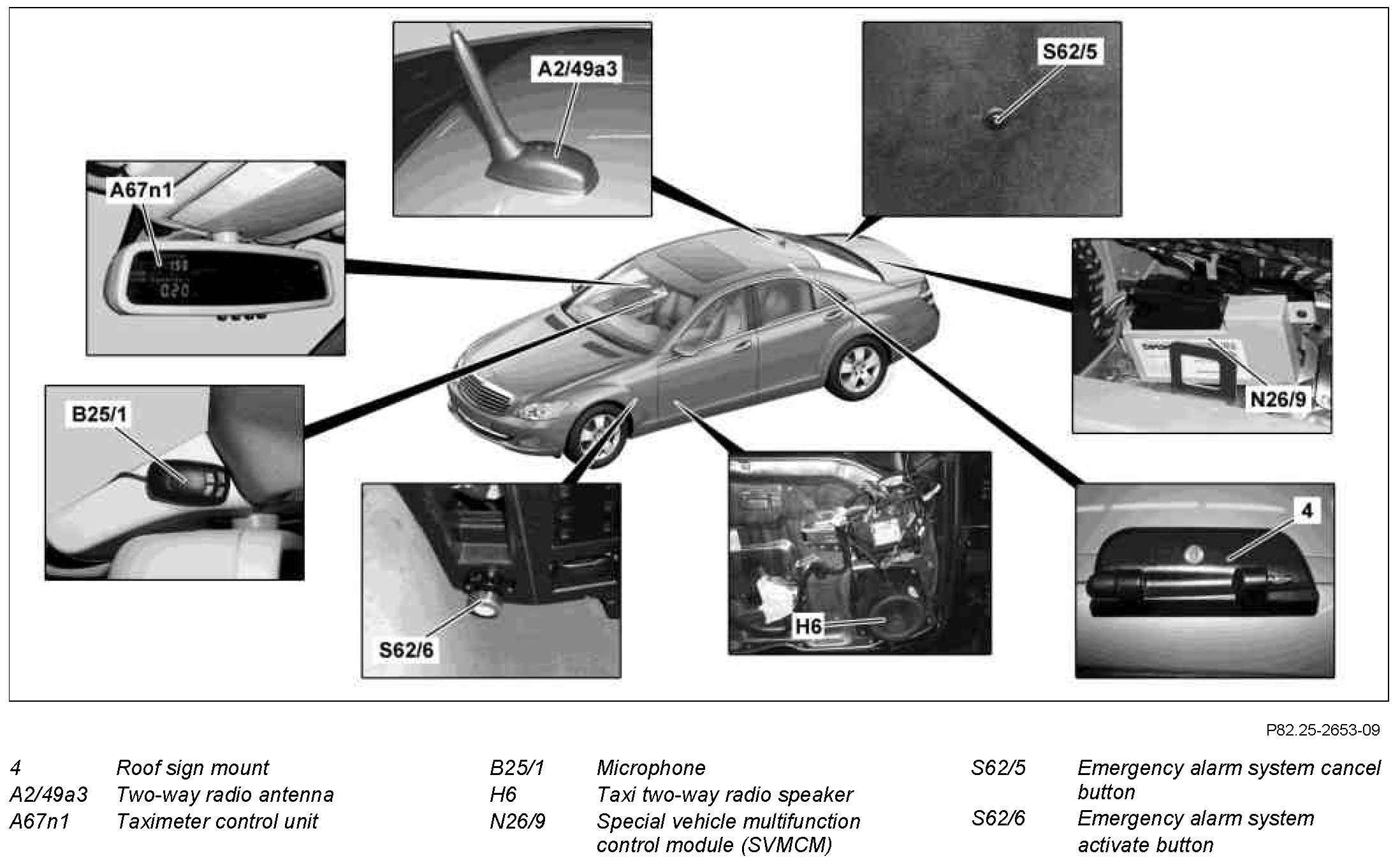

Component Identification:
Component Identification:
Component Identification:
Modification Notes:

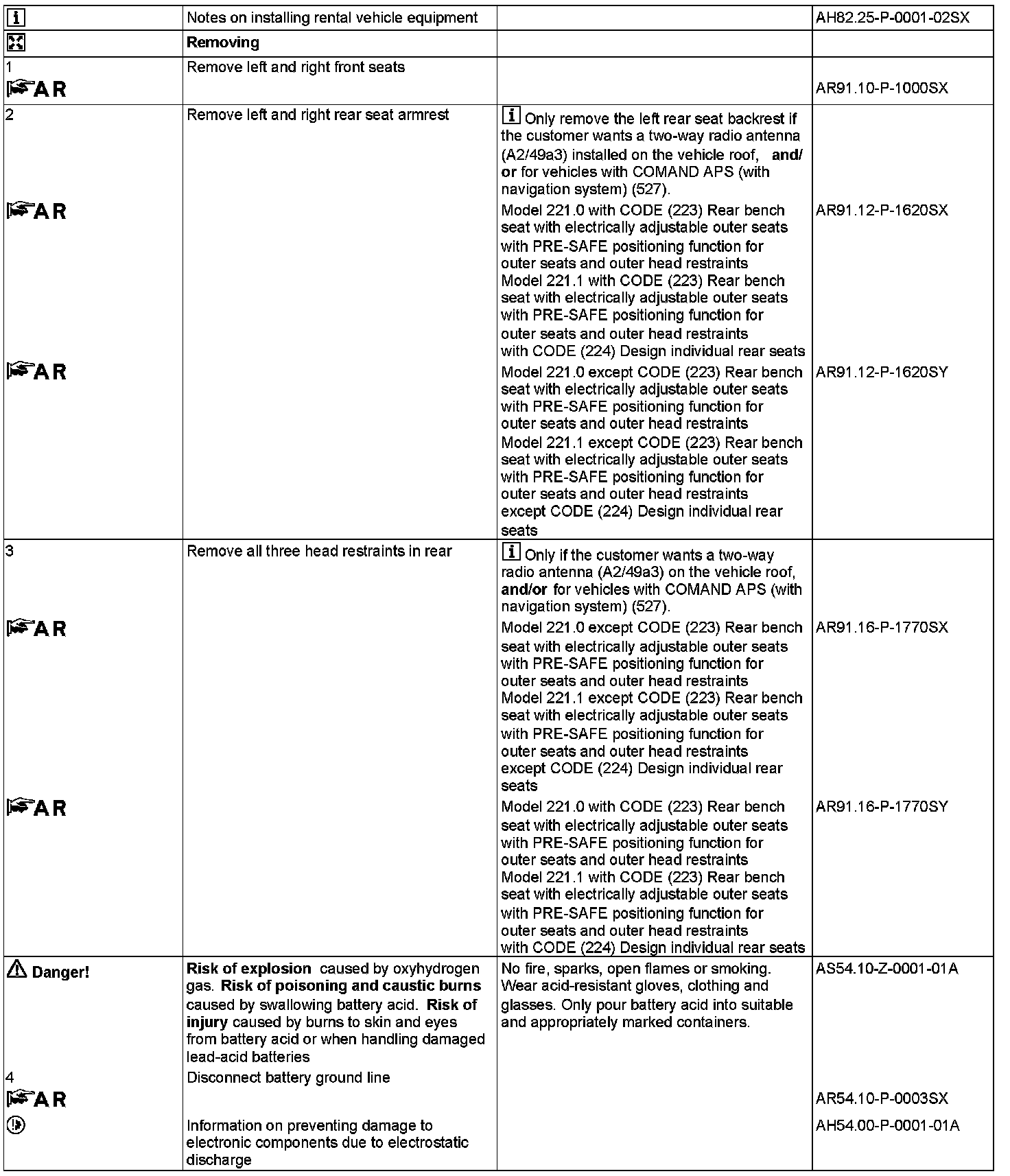

Steps 1 - 4:

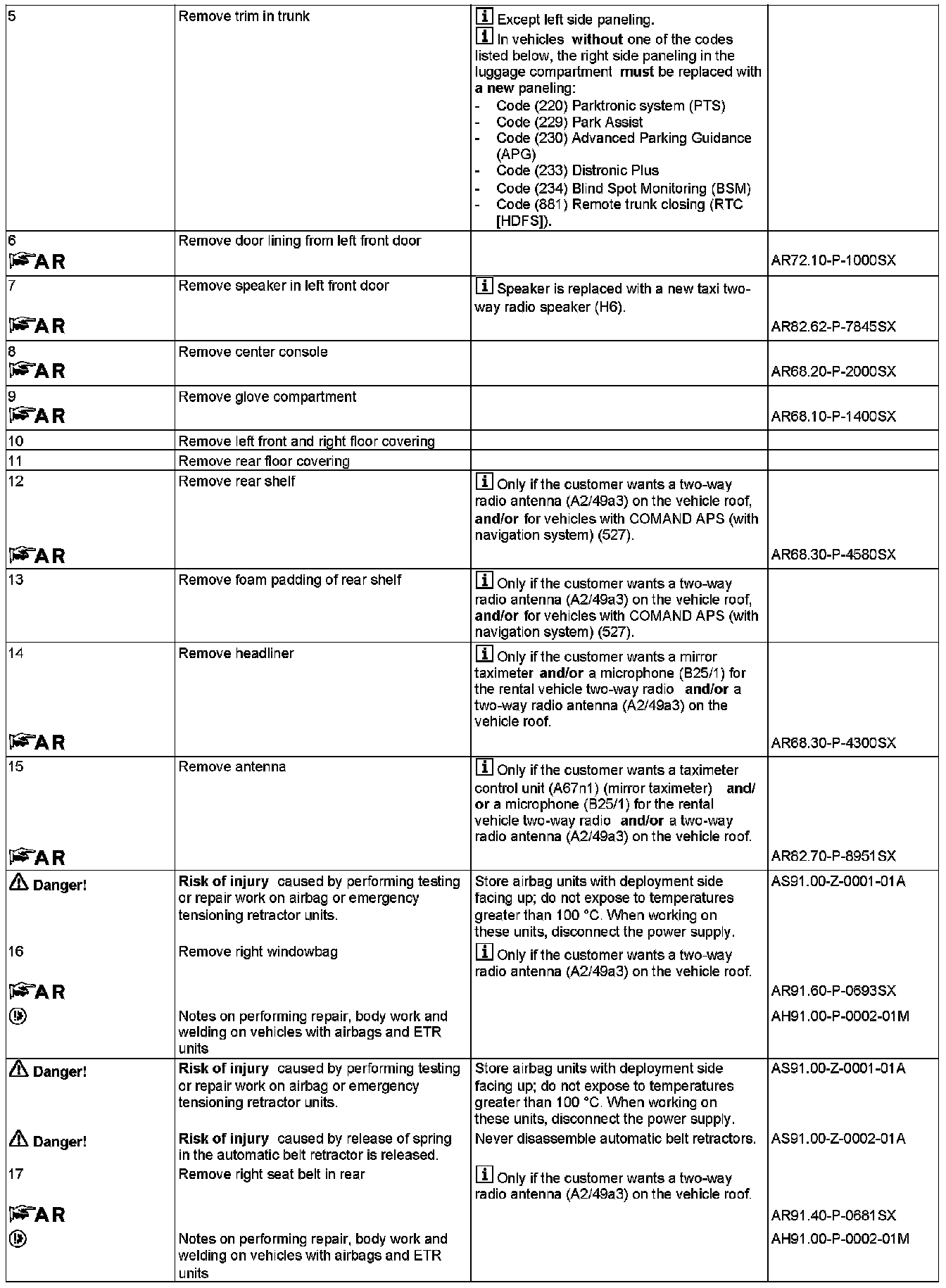

Steps 5 - 17:

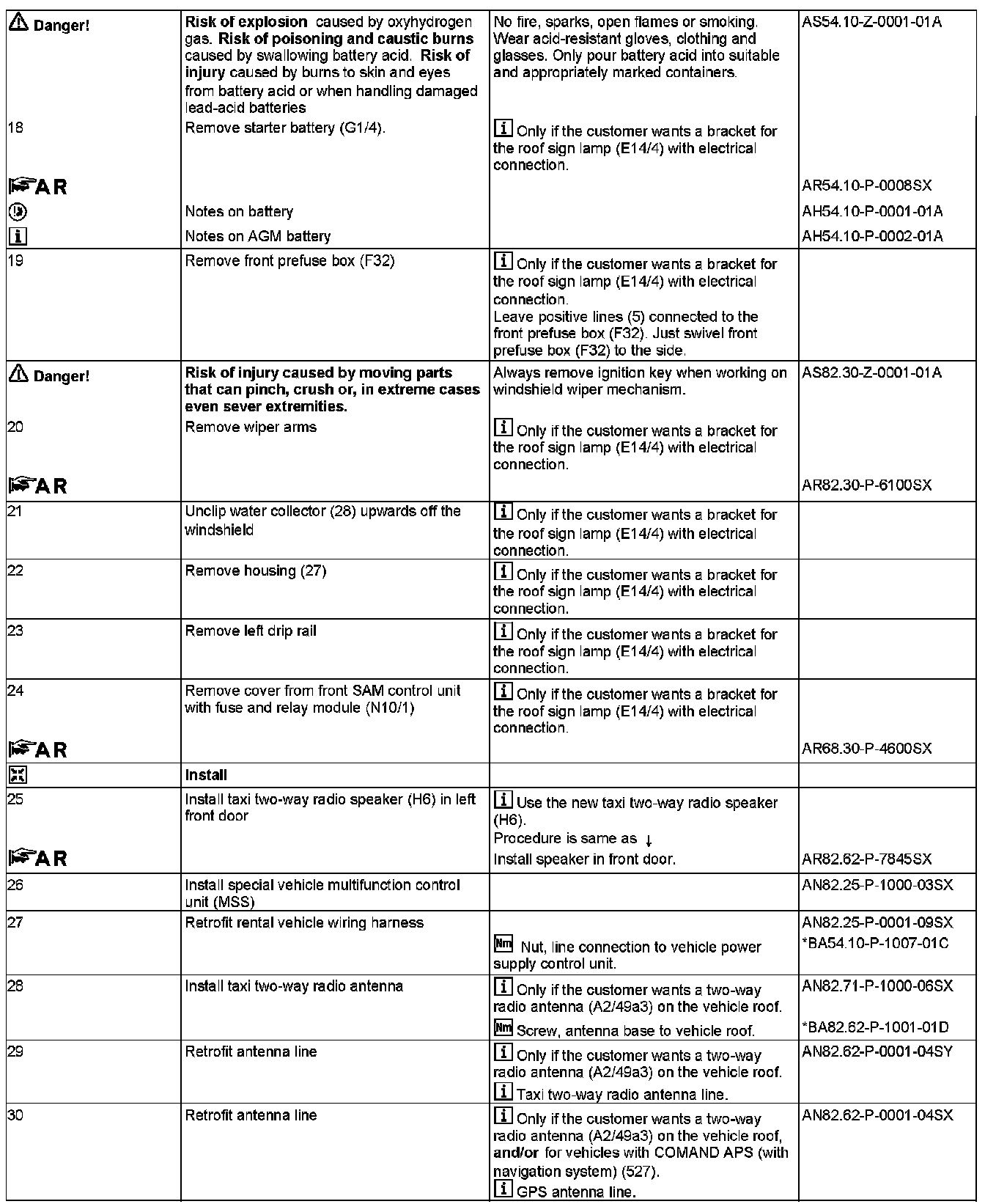

Steps 18 - 30:

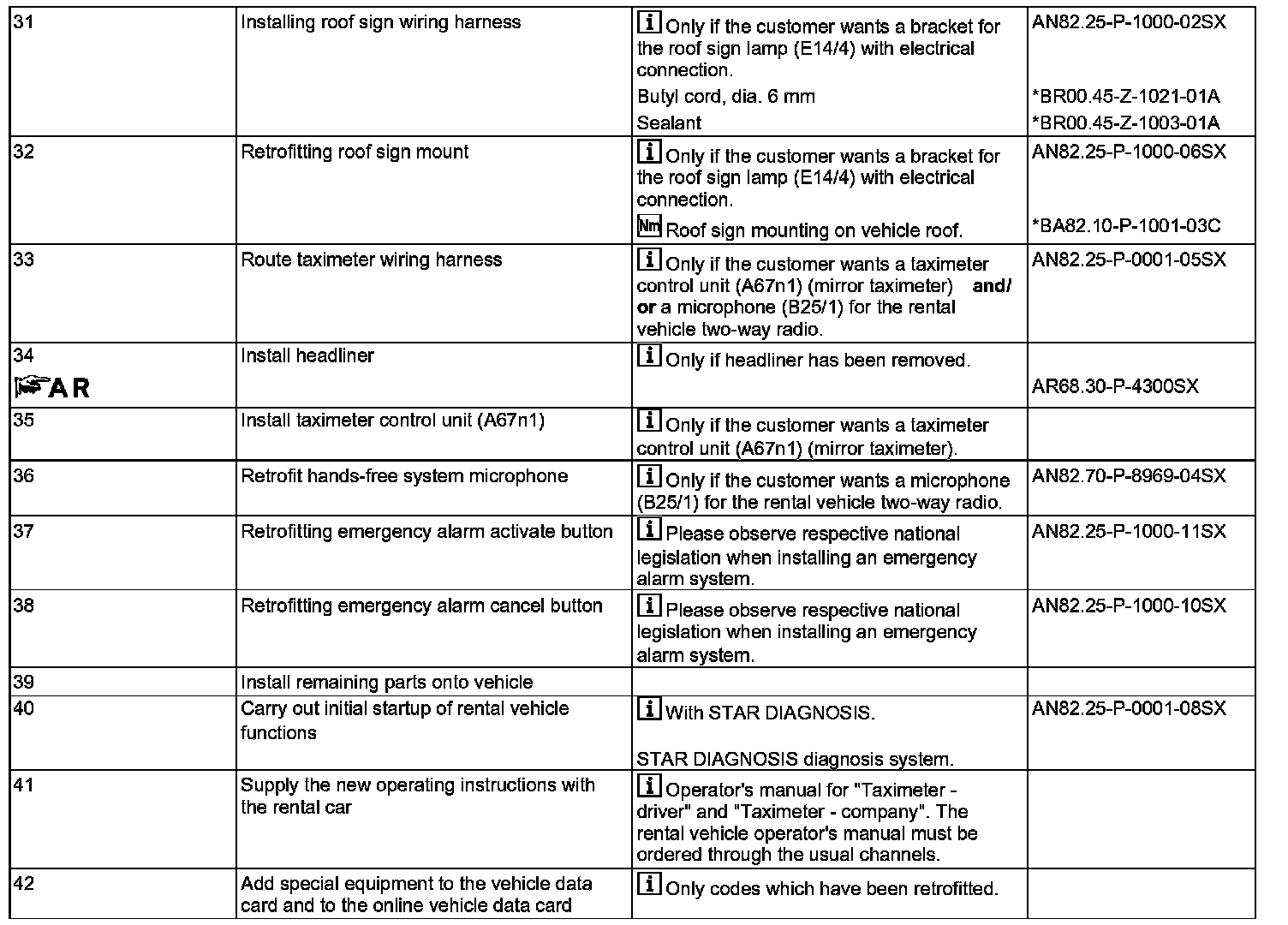

Steps 31 - 42:

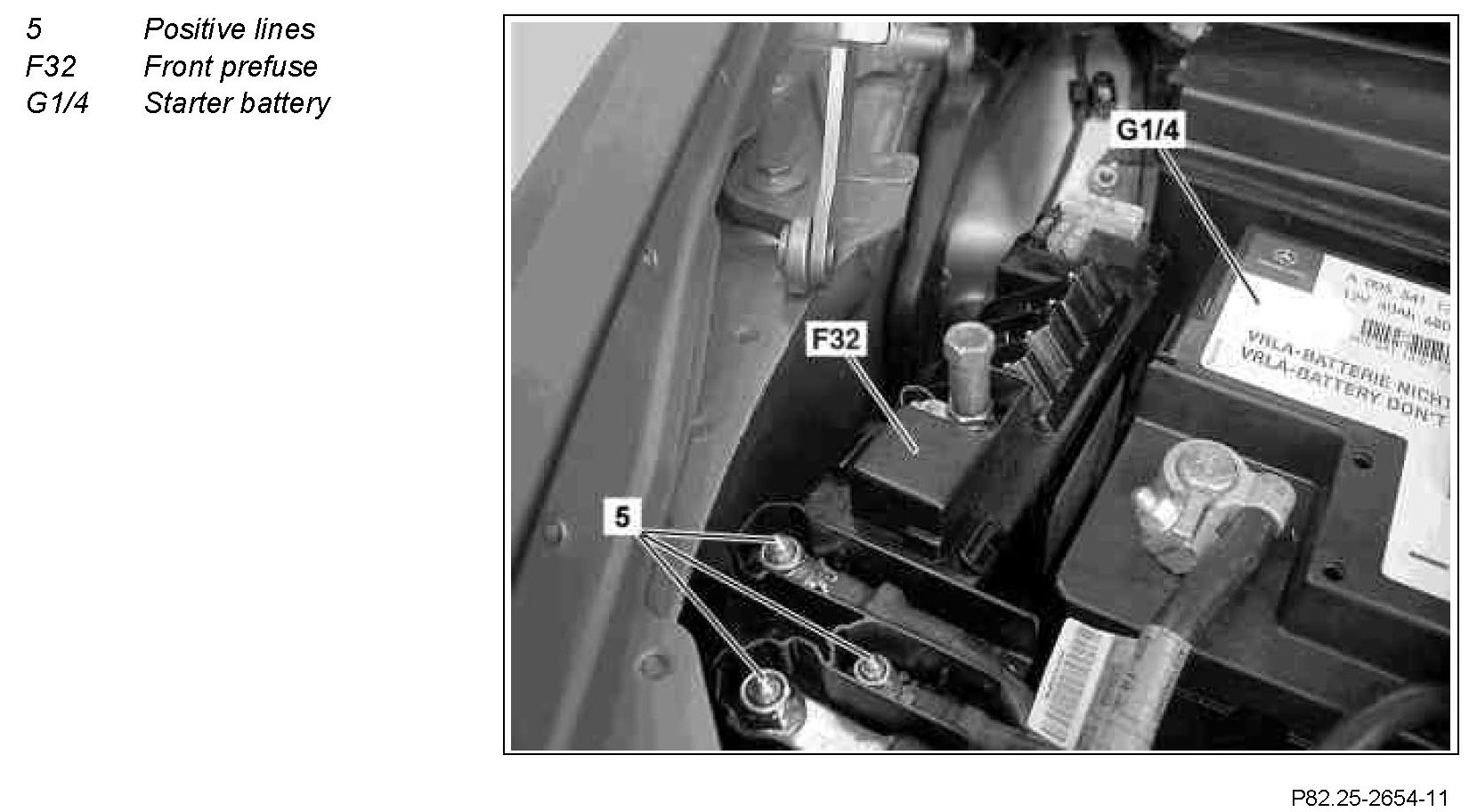

Battery:

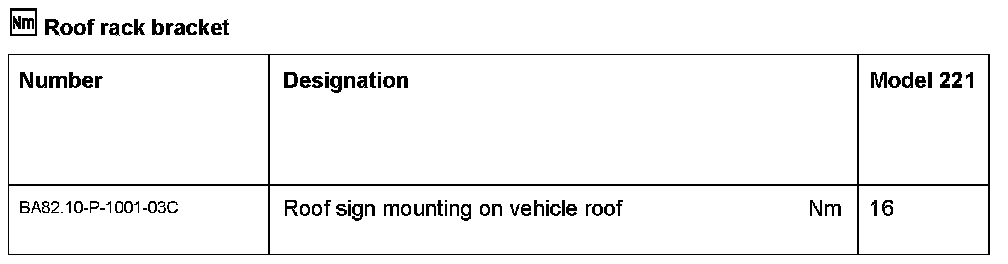

Roof Rack Bracket:

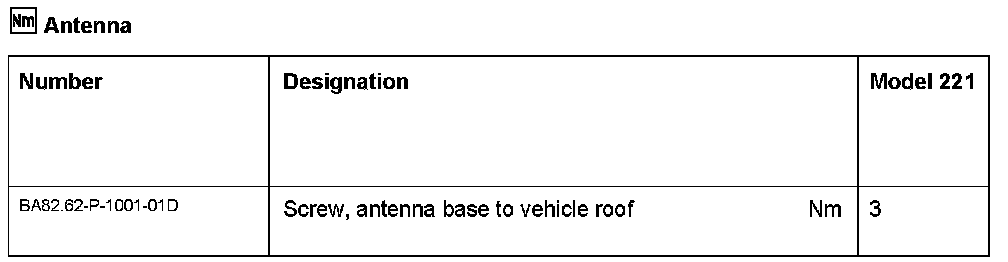

Antenna:

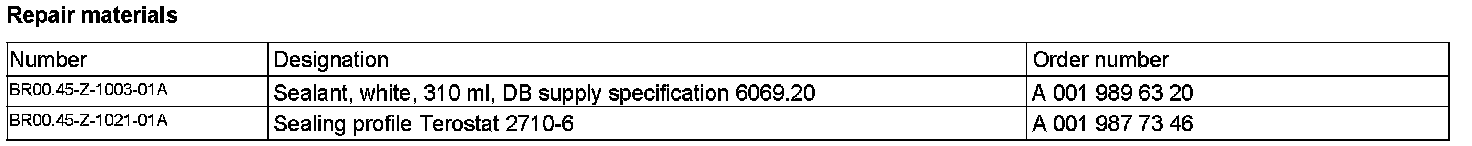

Repair Materials:

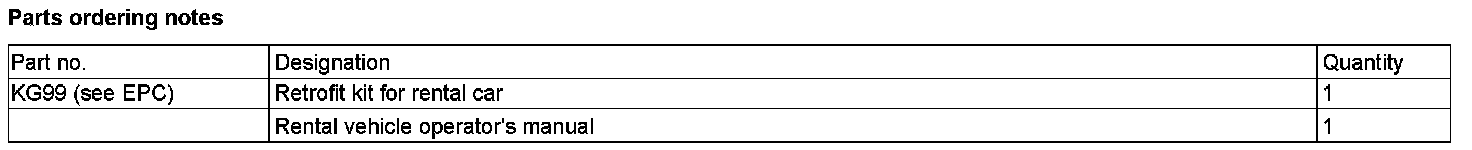

Parts Ordering Notes:
