AN82.25-P-1000-11SX Retrofitting Emergency Alarm Activate Button

AN82.25-P-1000-11SX Retrofitting Emergency Alarm Activate Button
- except CODE (498) Japan version
- except CODE (494) USA version

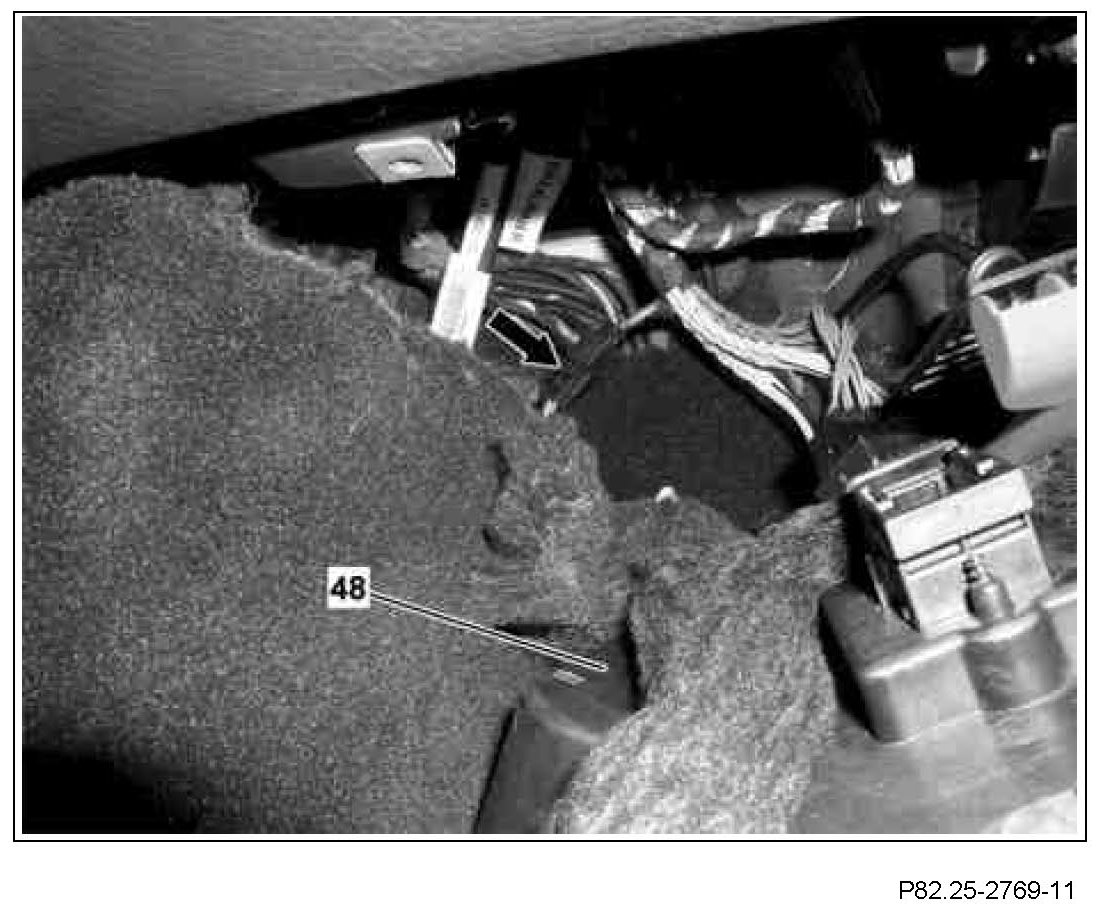

1 Break perforated cutout out of left cover below the instrument panel (48) using a screwdriver.
2 Secure emergency alarm system activate button (S62/6) using two sheet metal screws (48a) from the parts kit.

Installation location: below instrument panel on left
3 Contact black, 2-pin connector of emergency alarm system activate button (S62/6) with the coupling of the activate button branch-off line (see arrow).
4 Install cover below instrument panel (48).
