AN82.25-P-1000-10SX Retrofitting Emergency Alarm Cancel Button

AN82.25-P-1000-10SX Retrofitting Emergency Alarm Cancel Button
- except CODE (498) Japan version
- except CODE (494) USA version

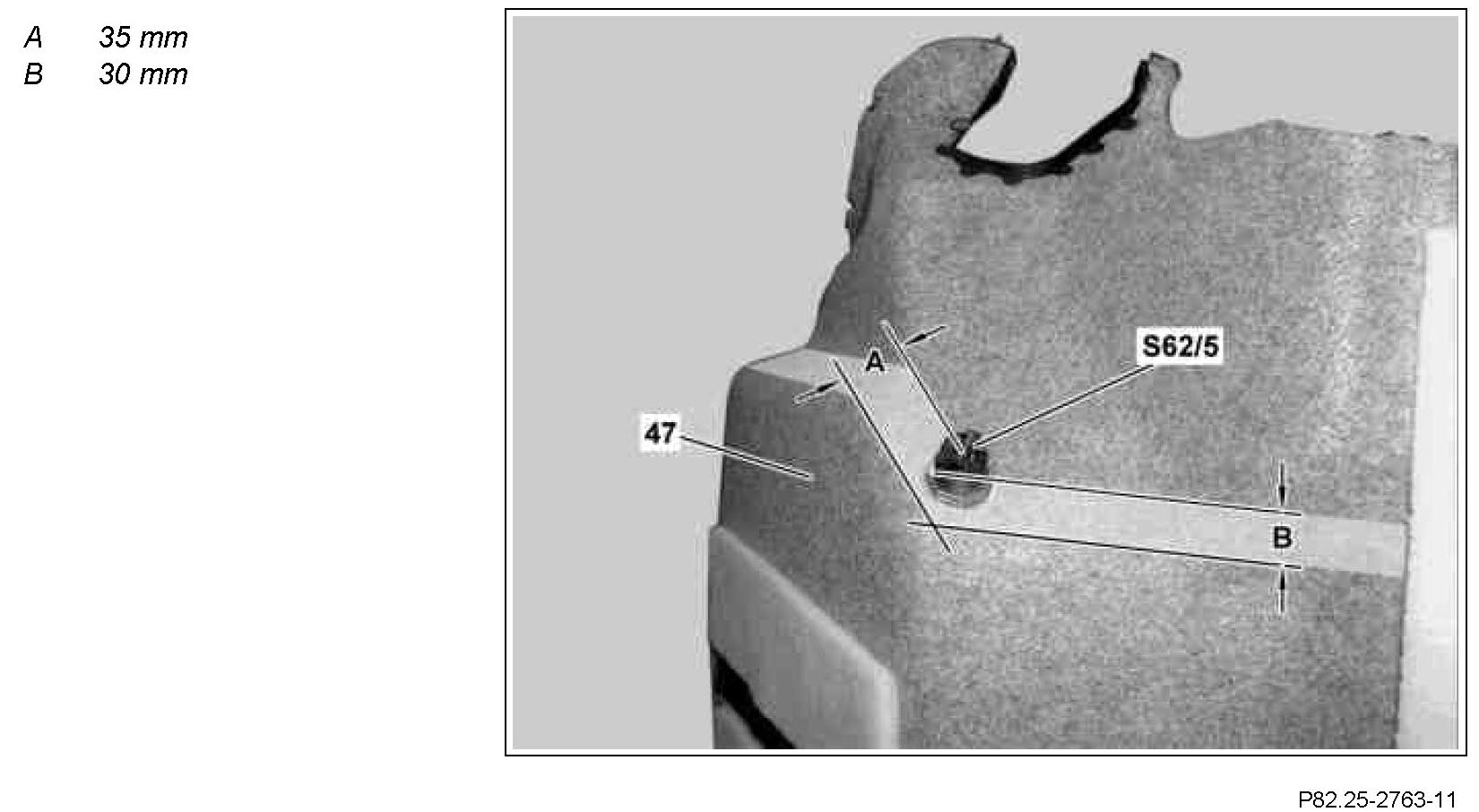

1 Drill a hole with a diameter of 20 mm in the right side paneling of the luggage compartment (47) as per the dimensions.

Component Identification:

2 Secure emergency alarm system cancel button (S62/5) with sheet metal nuts in the right luggage compartment side paneling (47).

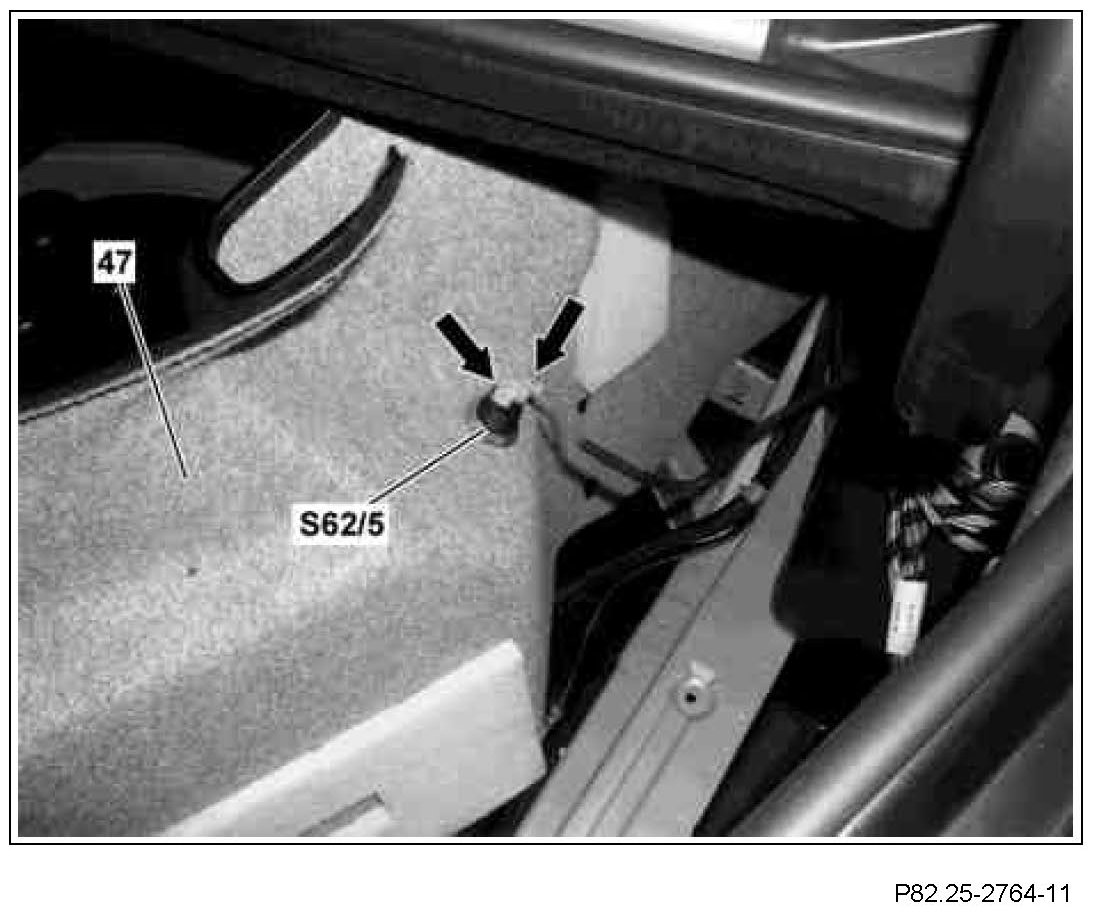

3 Install right luggage compartment side paneling (47) and connect the angled connectors (see arrows) to the emergency alarm system cancel button (S62/5).
