AN82.25-P-1000-06SX Retrofitting Roof Sign Mount

AN82.25-P-1000-06SX Retrofitting Roof Sign Mount
- except CODE (498) Japan version
- except CODE (494) USA version

Roof Rack Bracket:

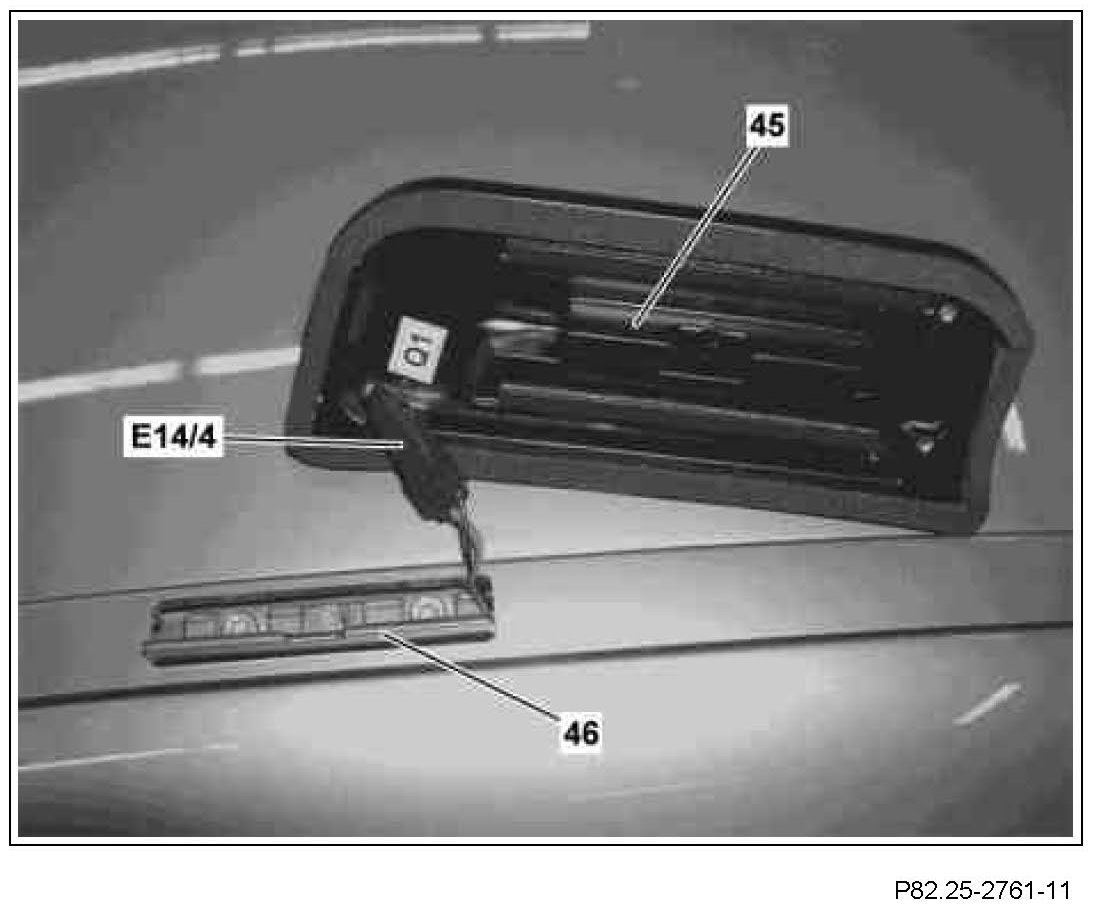

1 Connect black connector of roof sign lamp (E14/4) to coupling of roof sign mounting bracket (45).
2 Fold up cover (46) and move to vertical position.

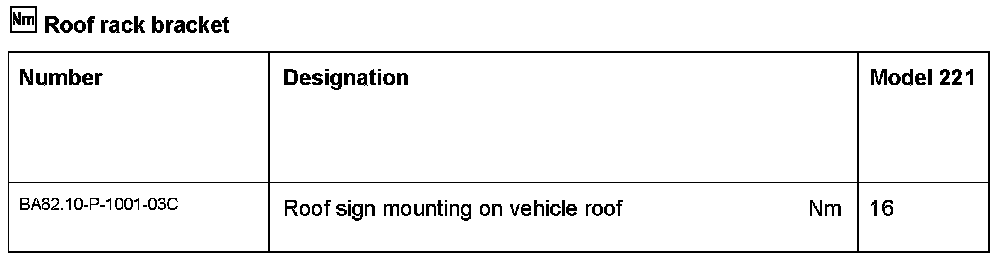

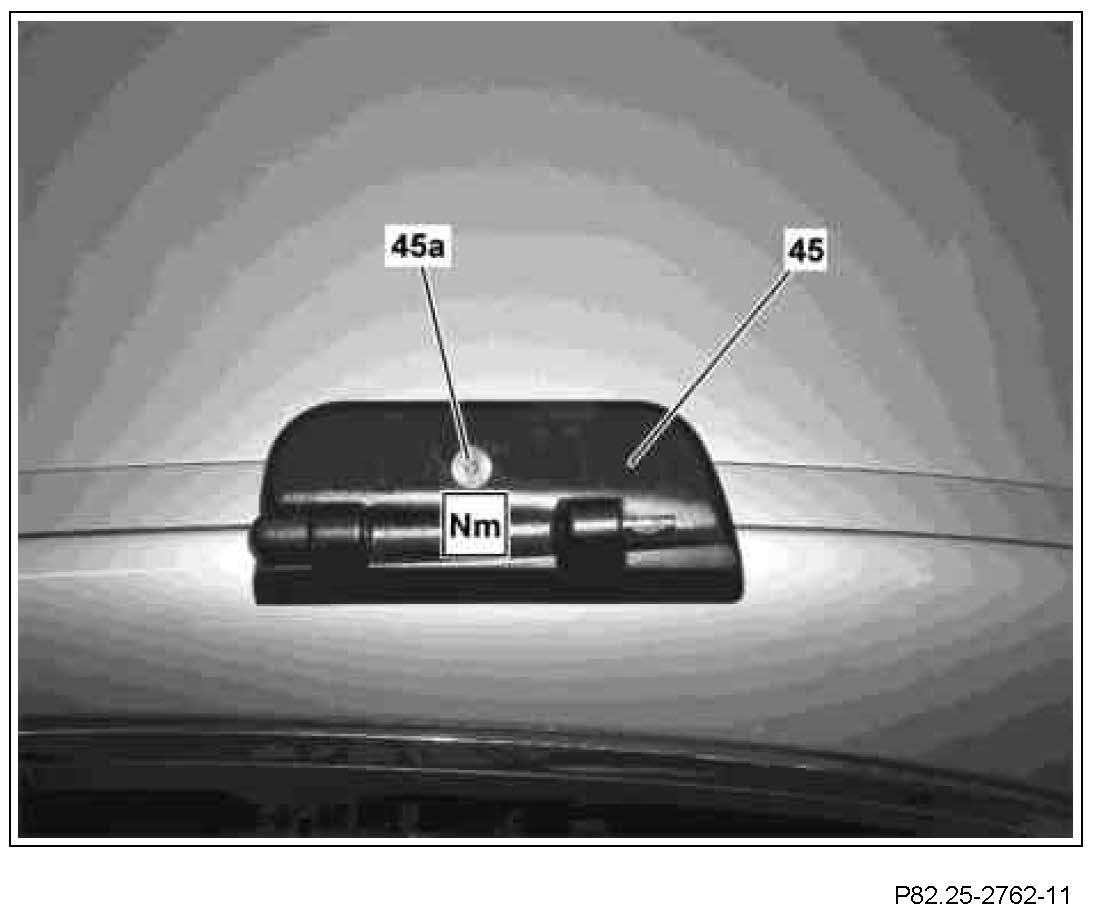

3 Place roof sign mounting bracket (45) onto vehicle roof and fasten with screw (45a) from parts kit with torque .
