AN82.25-P-0001-05SX Route Taximeter Wiring Harness

AN82.25-P-0001-05SX Route Taximeter Wiring Harness
- except CODE (498) Japan version
- except CODE (494) USA version


Installation location: front passenger footwell

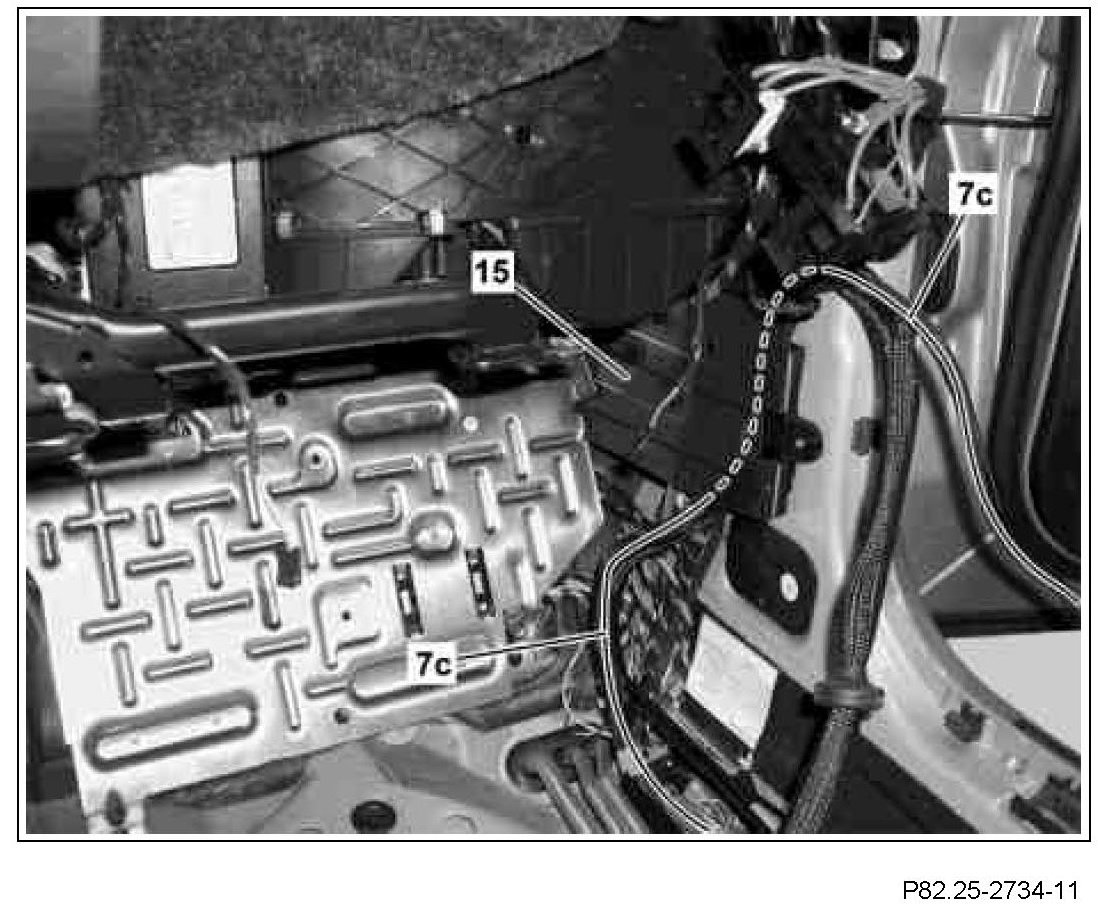

1 Guide branch-off line (7c) for mirror taximeter and taxi microphone through the cable duct (15) as per picture.
2 Close the cable duct (15) again.











Installation location: along the right A-pillar and the top of the windshield to the inside rearview mirror

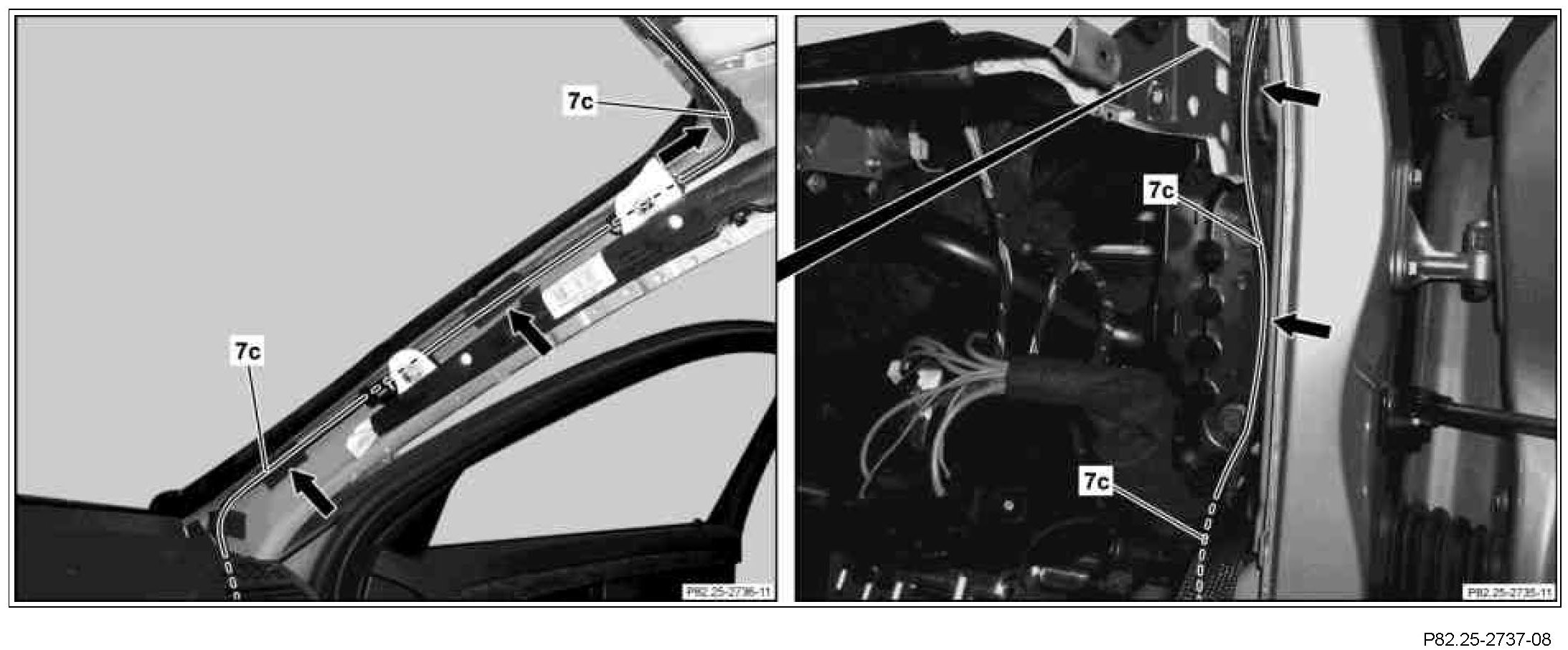

3 Route branch-off line (7c) for the mirror taximeter and taxi microphone along the right A-pillar and fasten in place using felt strips (see arrows).

When routing to the right A-pillar make sure that the routing is placed before the front check strap of the windowbag to the windshield, so that the windowbag function is not impaired.

Installation location: front of vehicle roof

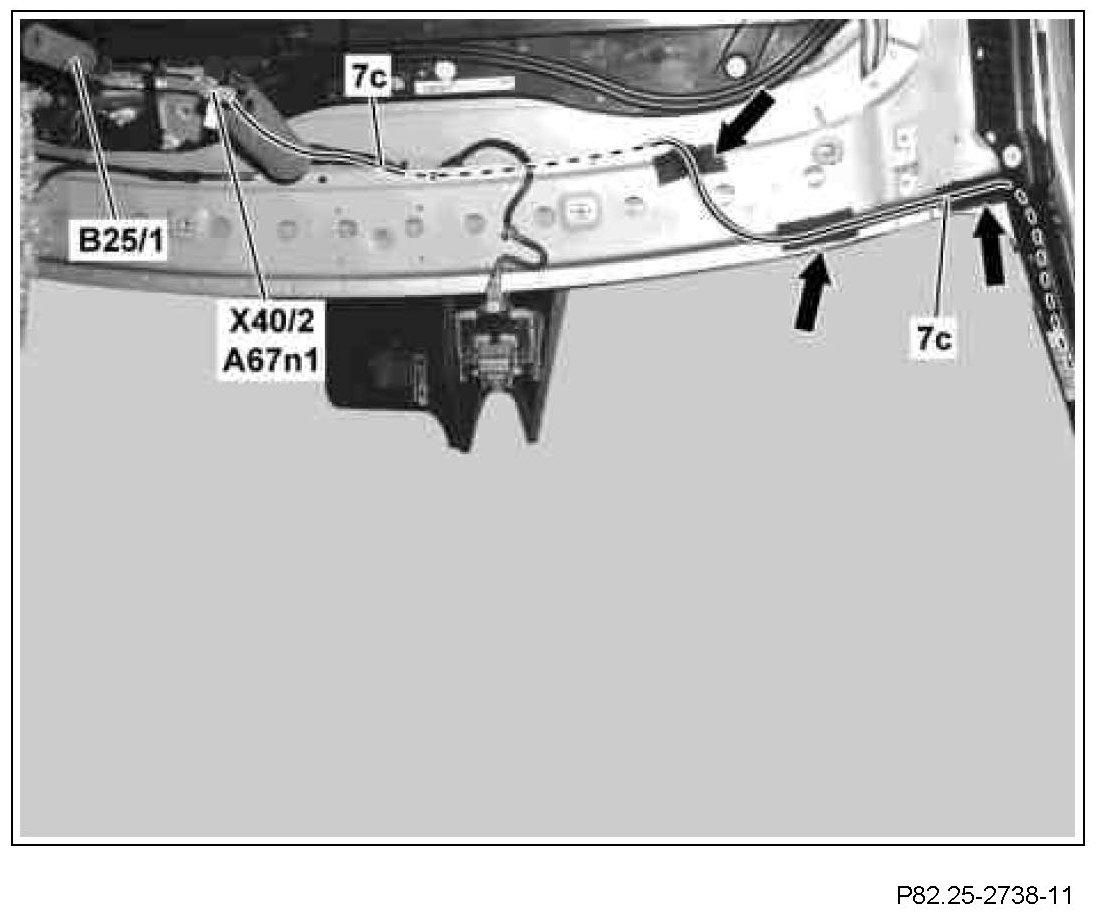

4 Route branch-off line (7c) for the mirror taximeter and taxi microphone as per picture and fasten in place using felt strips (see arrows).

The coupling for the microphone (B25/1), taximeter control unit (A67n1) and international roof sign separation point (X40/2) will be connected to the inside rearview mirror or microphone at a later stage.

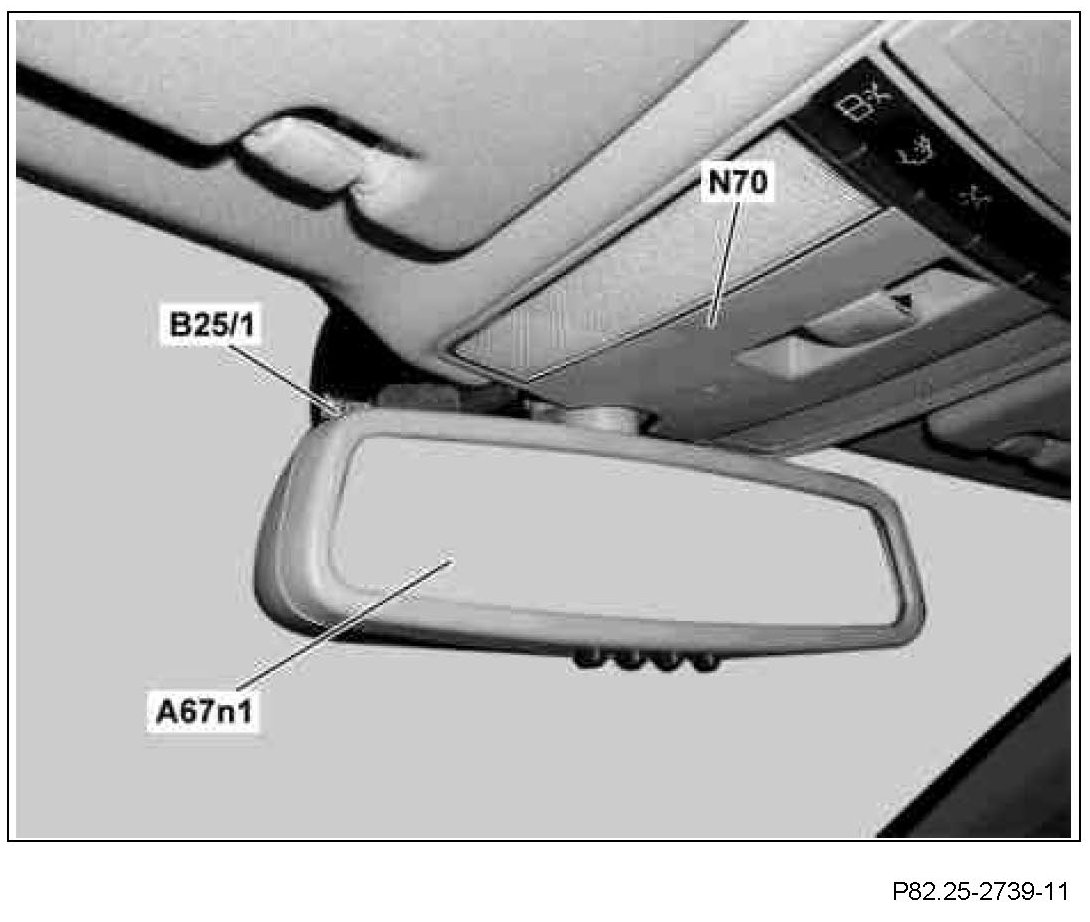

5 Position microphone coupling (B25/1) behind the taximeter control unit (A67n1) as per picture after installation of the overhead control panel control unit (N70).

The microphone coupling (B25/1) is connected to the microphone at a later stage.
