Removal and Replacement

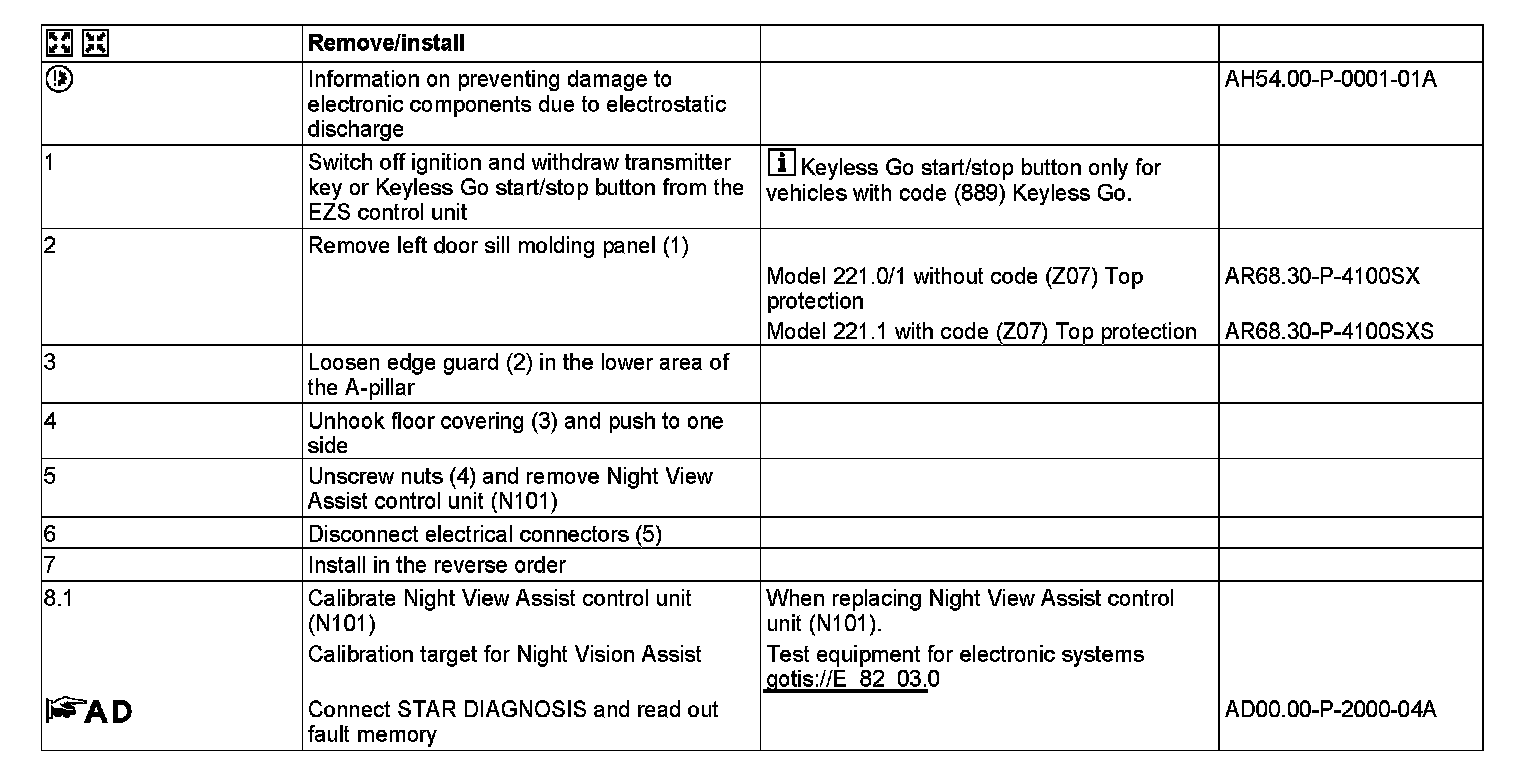

AR54.30-P-3100SX Remove/Install Night View Assist Control Unit
MODEL 216.3, 221.0 /1
- with CODE (610) Night vision assist

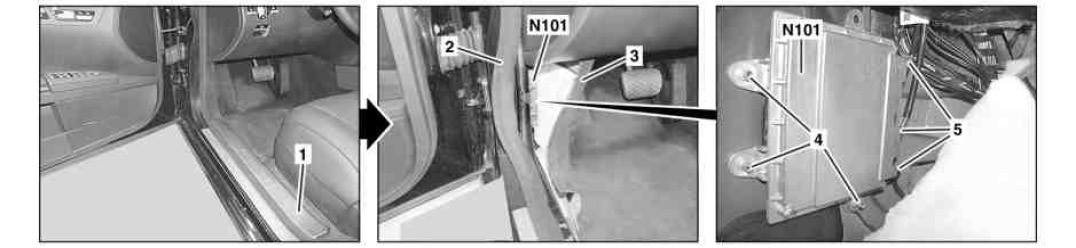

Shown on model 221
1 Door sill molding panel
2 Edge guard
3 Floor Covering
4 Nuts
5 Electrical connectors
N101 Night vision assist control unit
