Electrical Diagrams

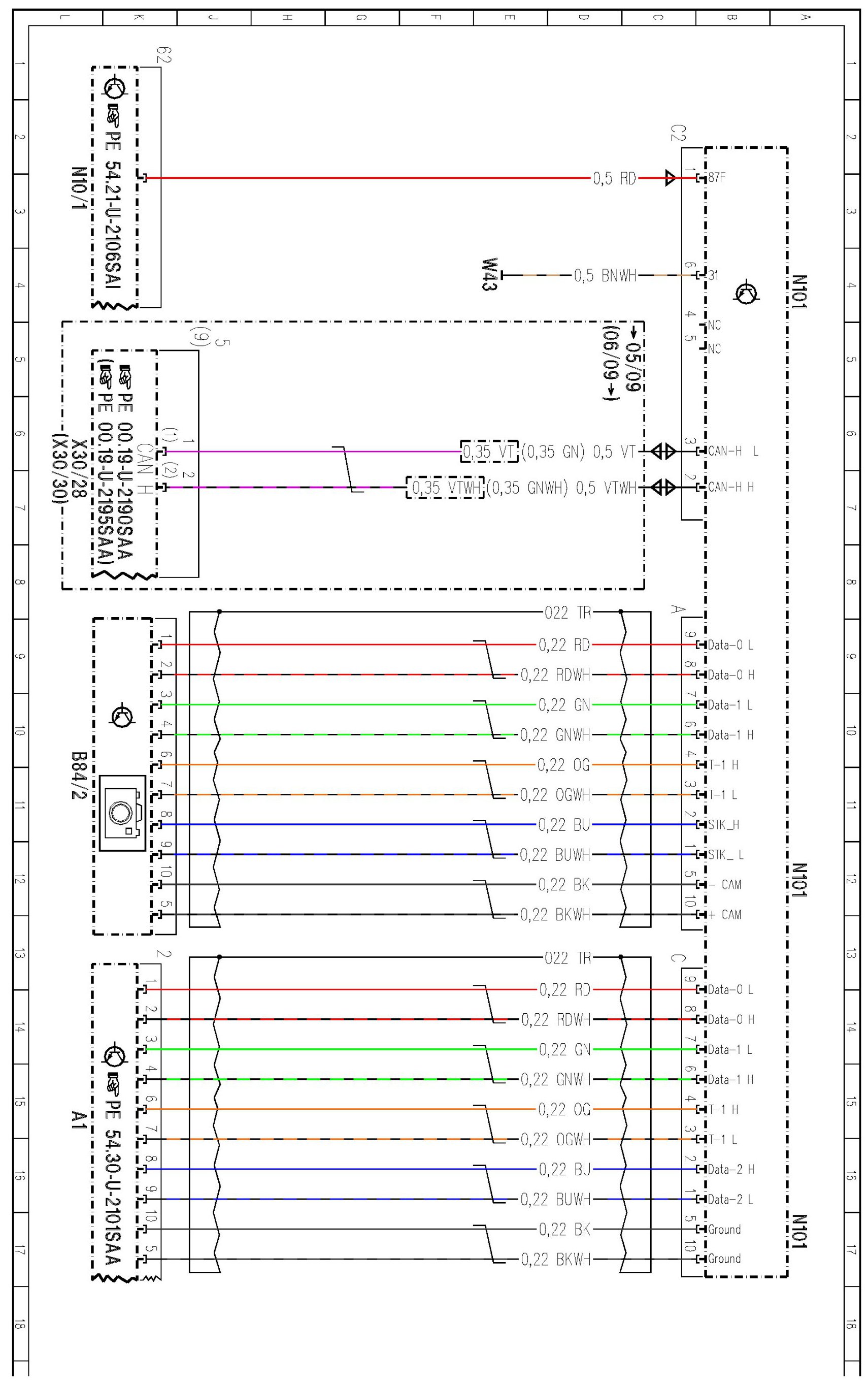

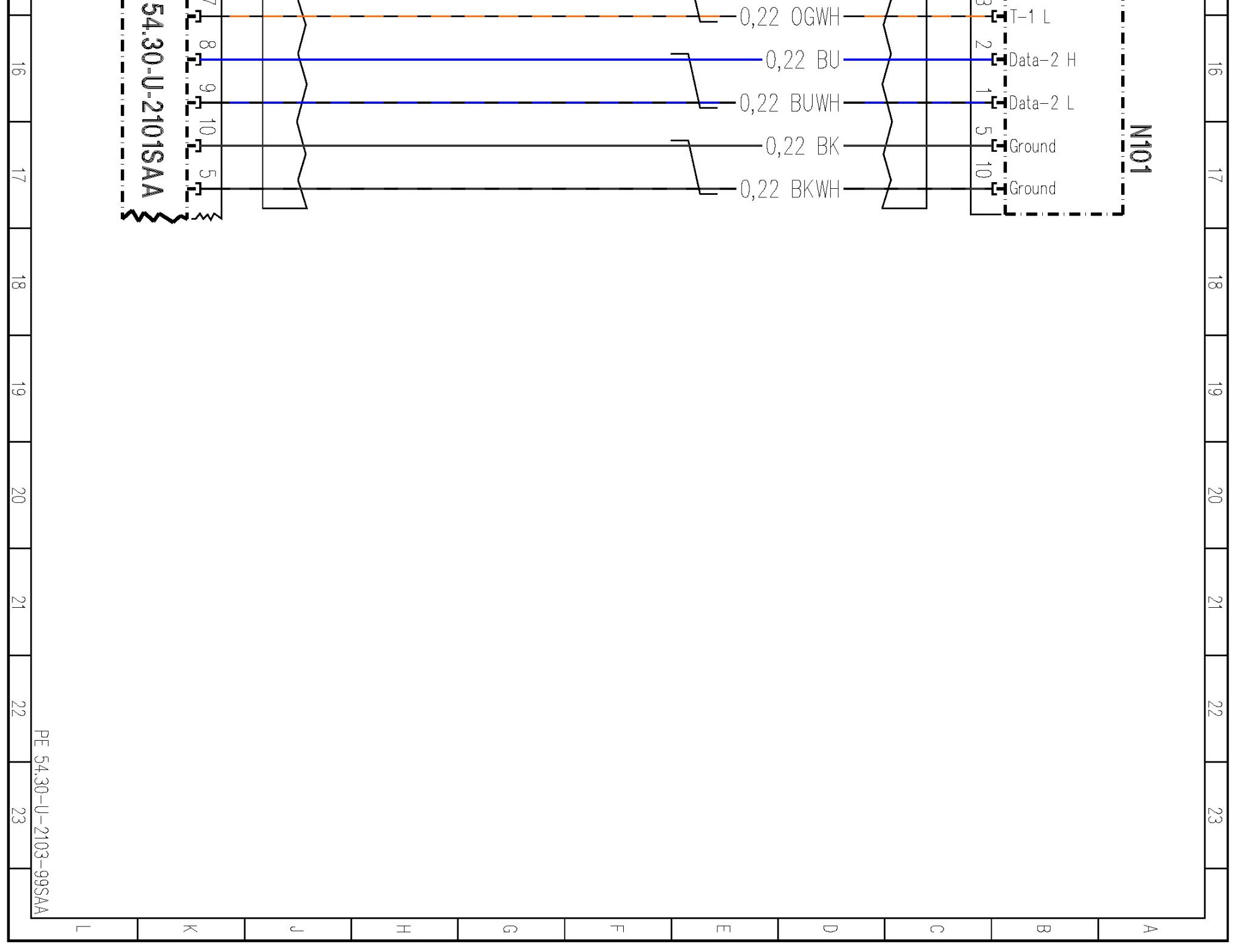

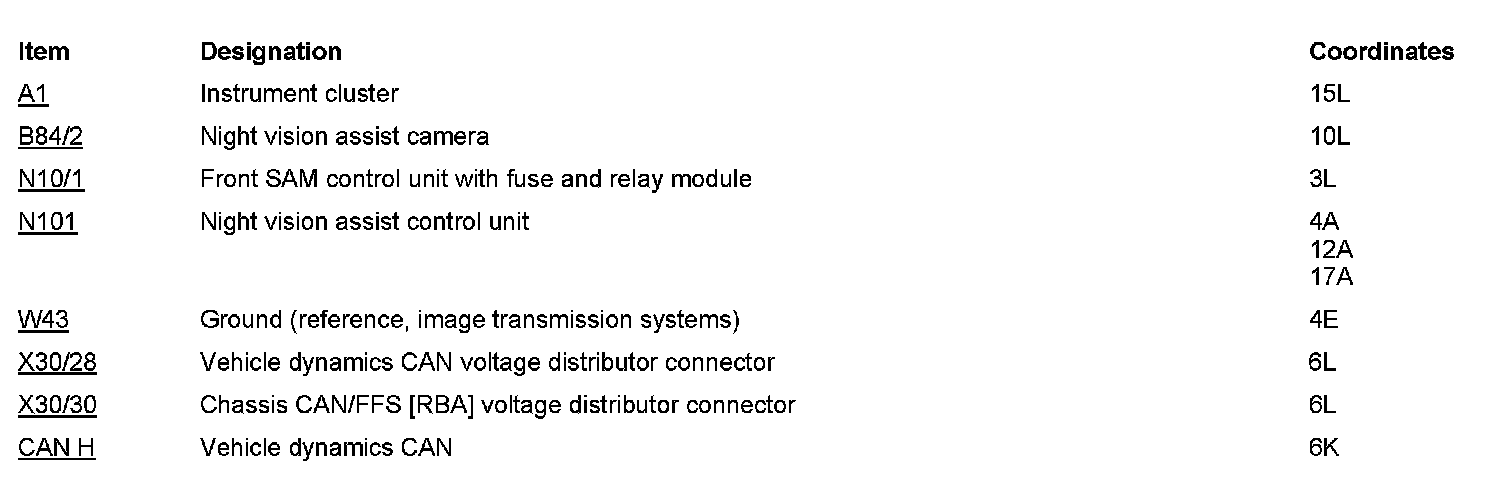

PE54.30-U-2103SAA Night View Assist Control Unit

MODEL 221
- with CODE (610) Night vision assist

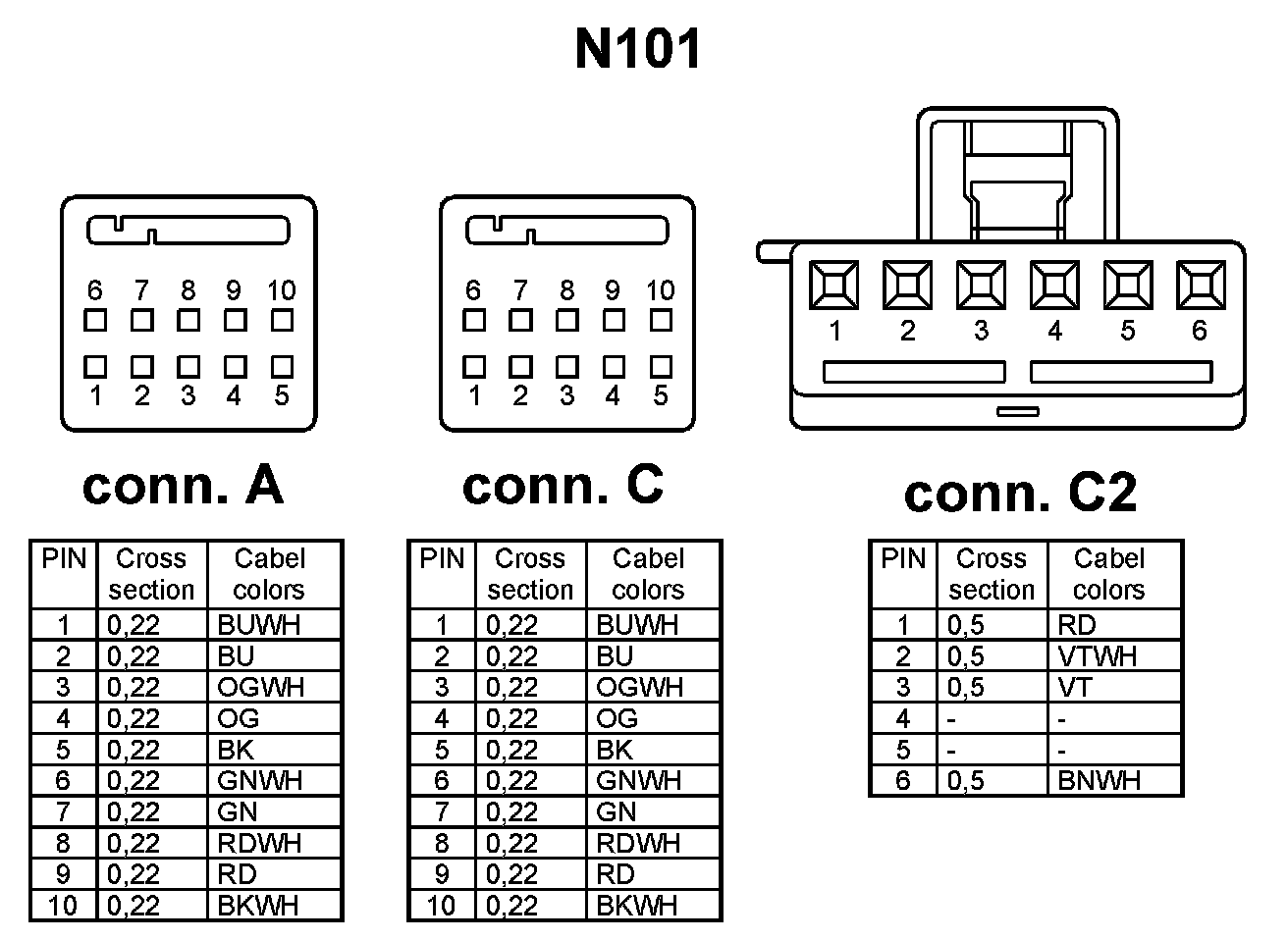

- Control unit N101







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
