AR86.10-P-0105SXS Remove/Install Fire Extinguishing System Manual Activation Switch



AR86.10-P-0105SXS Remove/Install Fire Extinguishing System Manual Activation Switch
- with CODE (Z07) Top protection
- with fire extinguishing system


Component Identification:

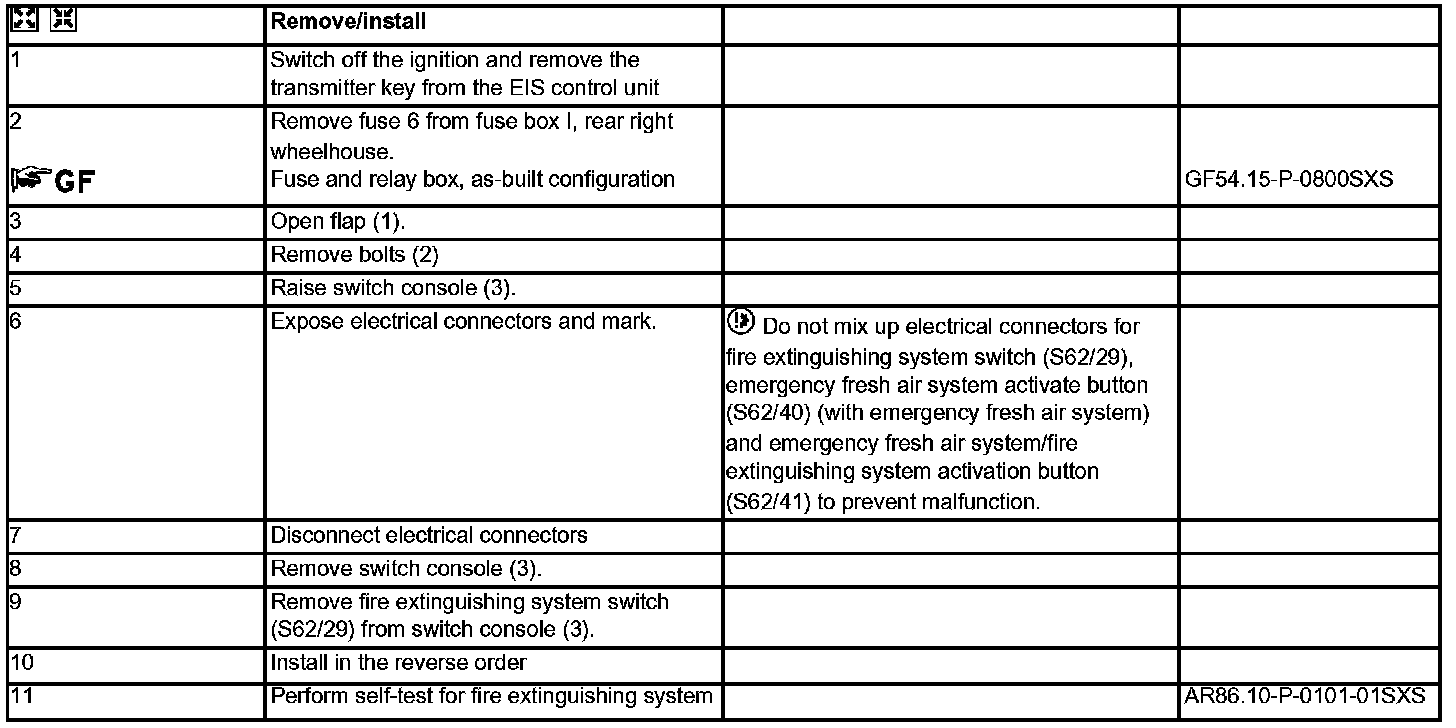

Steps 1 - 11:
