AR86.10-P-0102SXU Remove/Install Fire Extinguishing System Temperature Sensor



AR86.10-P-0102SXU Remove/Install Fire Extinguishing System Temperature Sensor
- Rear extinguishing system temperature sensor
- with CODE (Z07) Top protection


Component Identification:

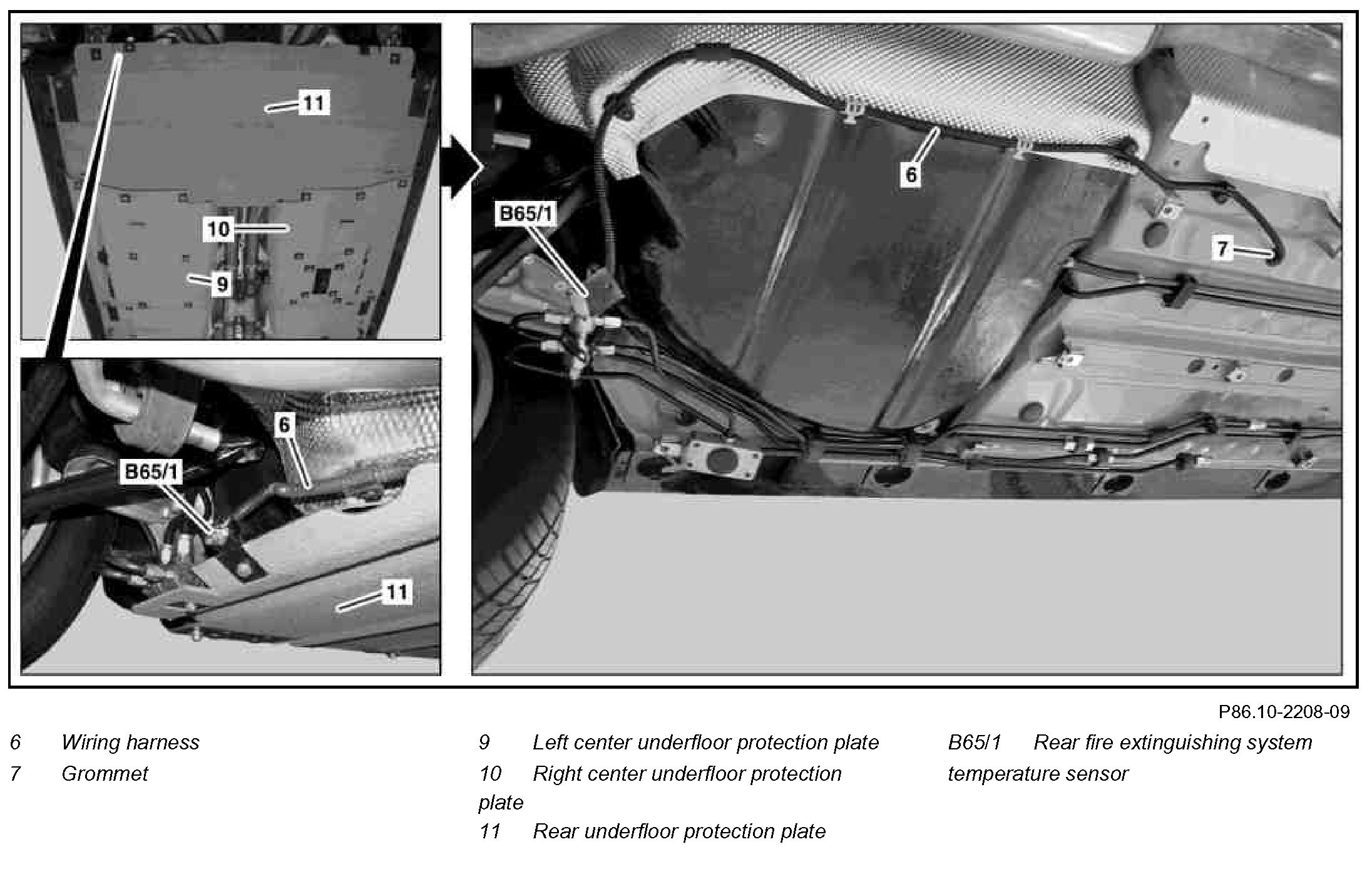

Component Identification:

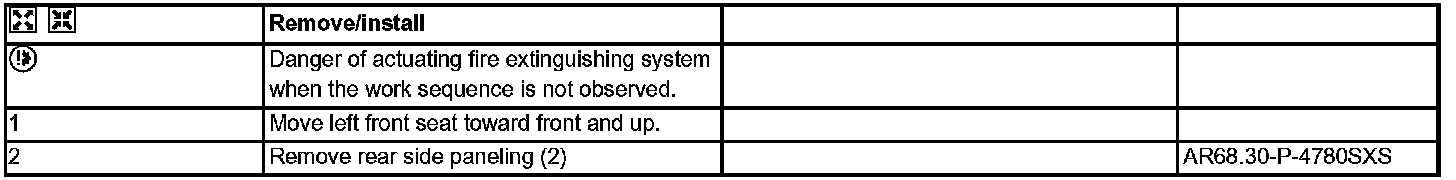

Steps 1 - 2:

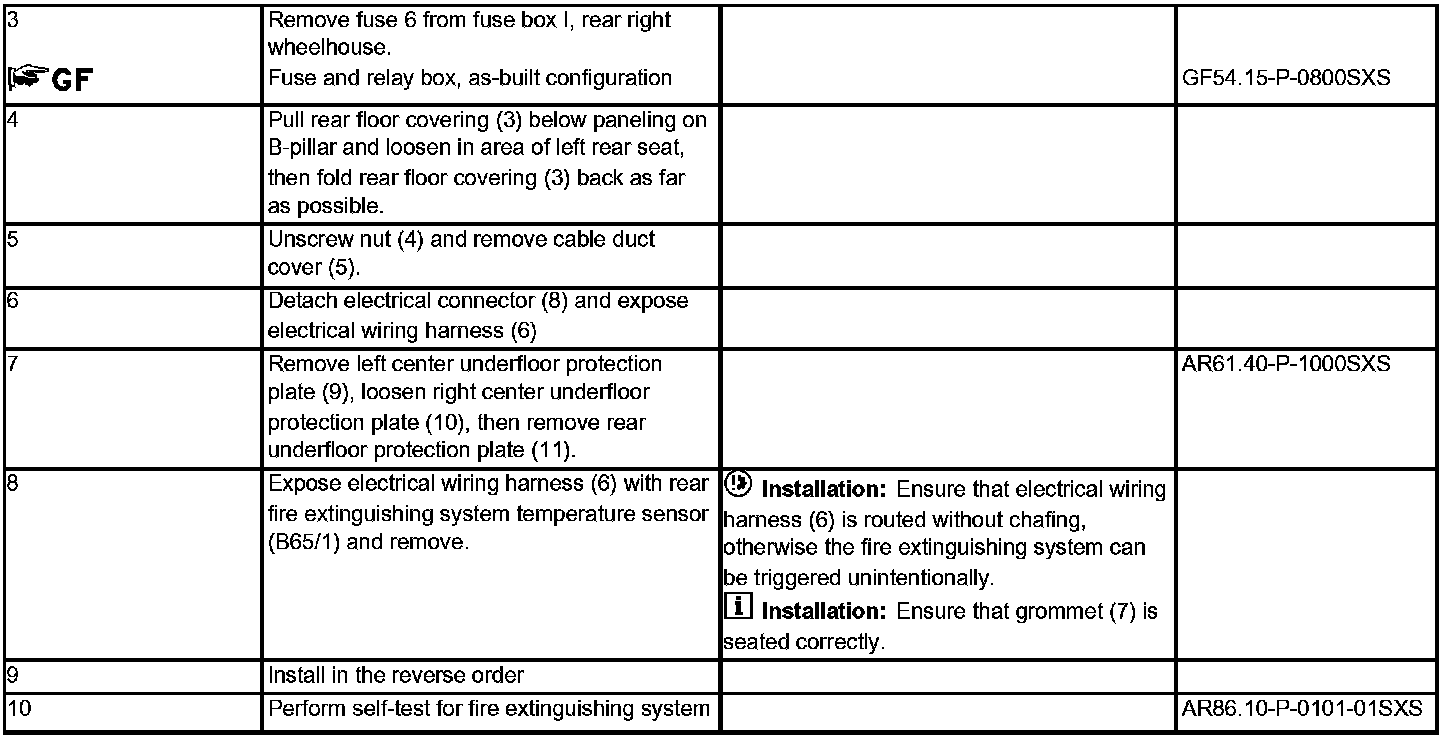

Steps 3 - 10:
