AR86.10-P-0102SXT Remove/Install Fire Extinguishing System Temperature Sensor



AR86.10-P-0102SXT Remove/Install Fire Extinguishing System Temperature Sensor
- Bottom engine compartment fire extinguishing system temperature sensor
- with CODE (Z07) Top protection


Component Identification:

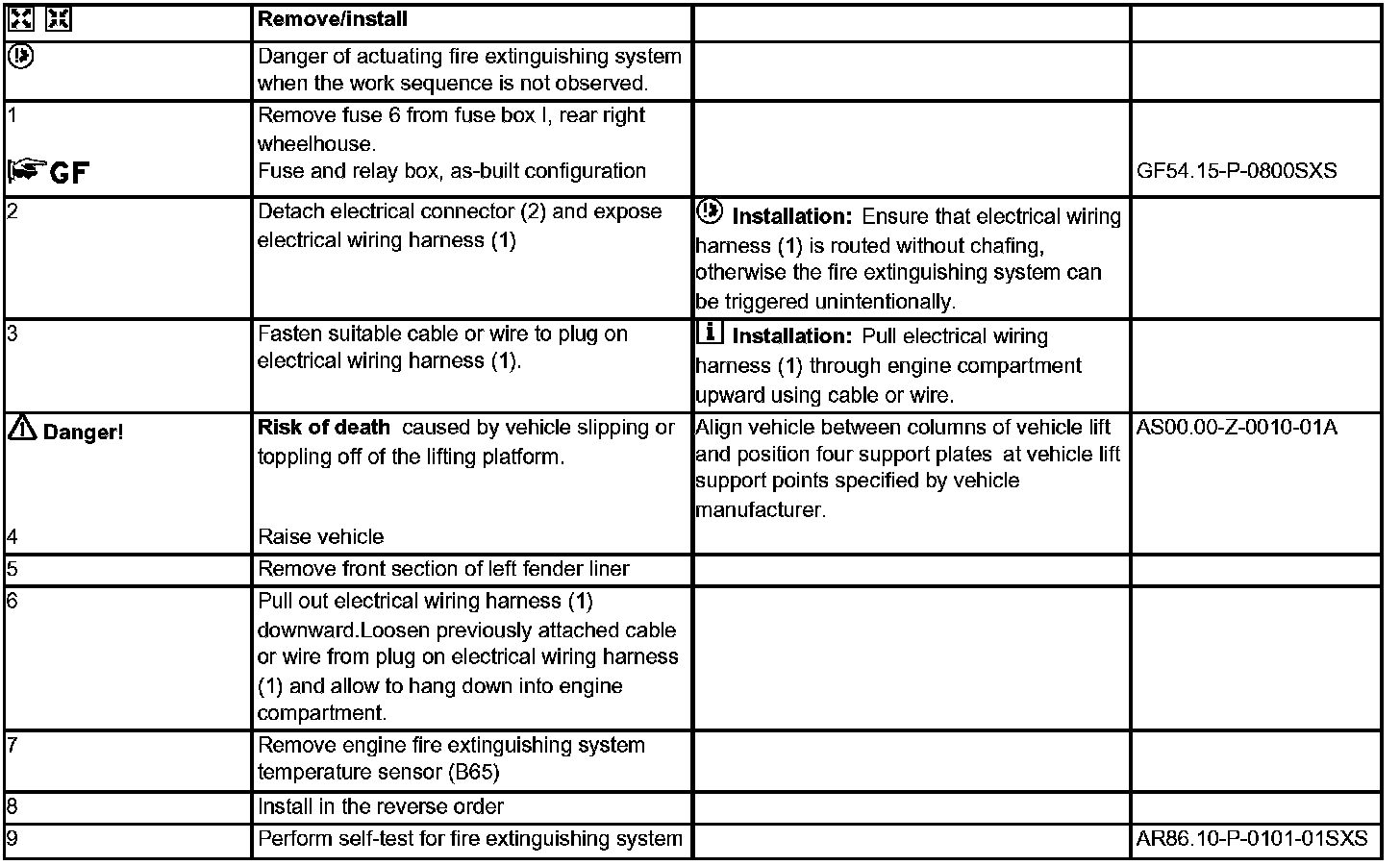

Steps 1 - 9:
