AR86.10-P-0100SXS Remove/Install Extinguishing Agent Tank



AR86.10-P-0100SXS Remove/Install Extinguishing Agent Tank
- with CODE (Z07) Top protection
- with fire extinguishing system


Component Identification:




Modification Notes:

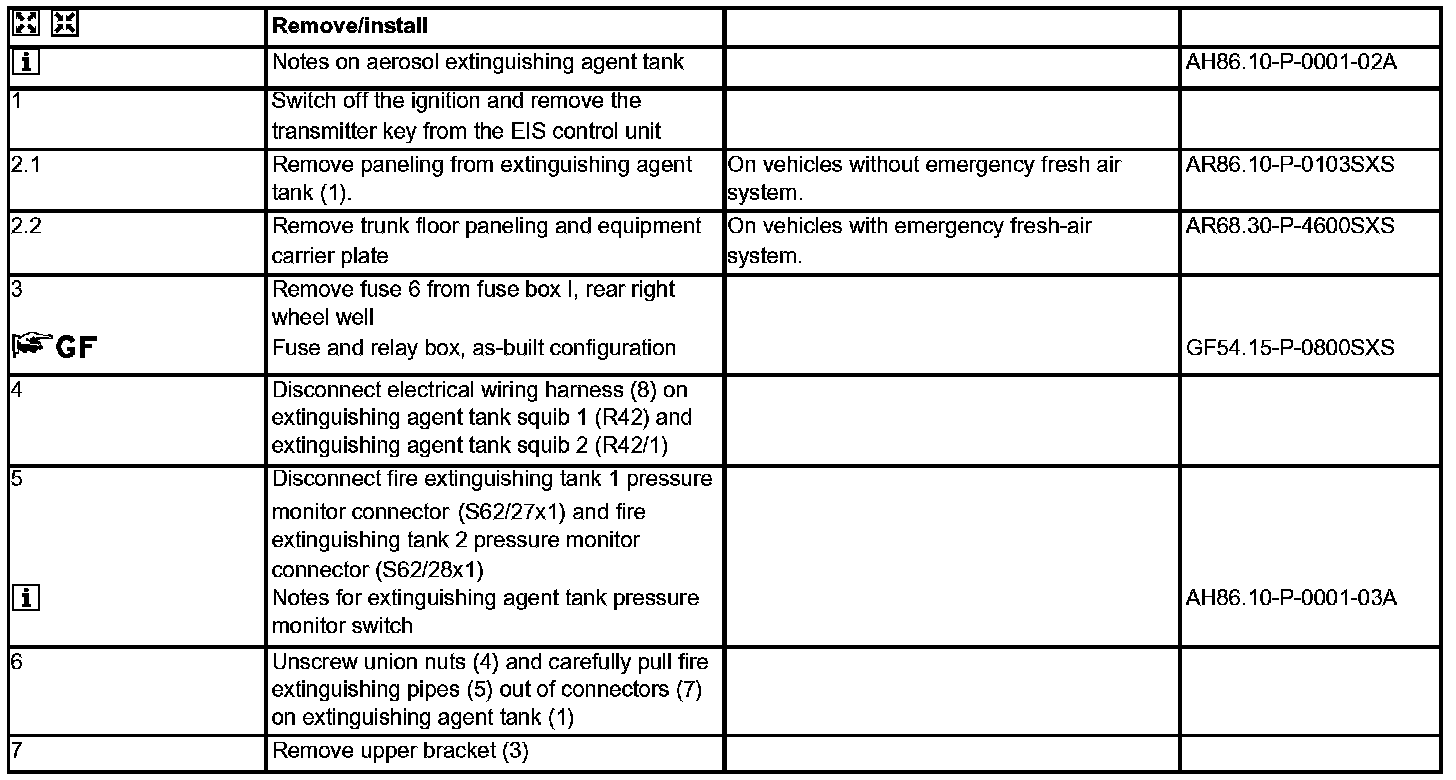

Steps 1 - 7:




Steps 8 - 10:
