AP86.10-P-8681SX Replace Squib For Extinguishing Agent Tank



AP86.10-P-8681SX Replace Squib For Extinguishing Agent Tank
- with CODE (Z04) Light armoring [models 220]
- with CODE (Z07) Top protection [models 220, 221]
- with CODE (979) Special protection version [models 463]

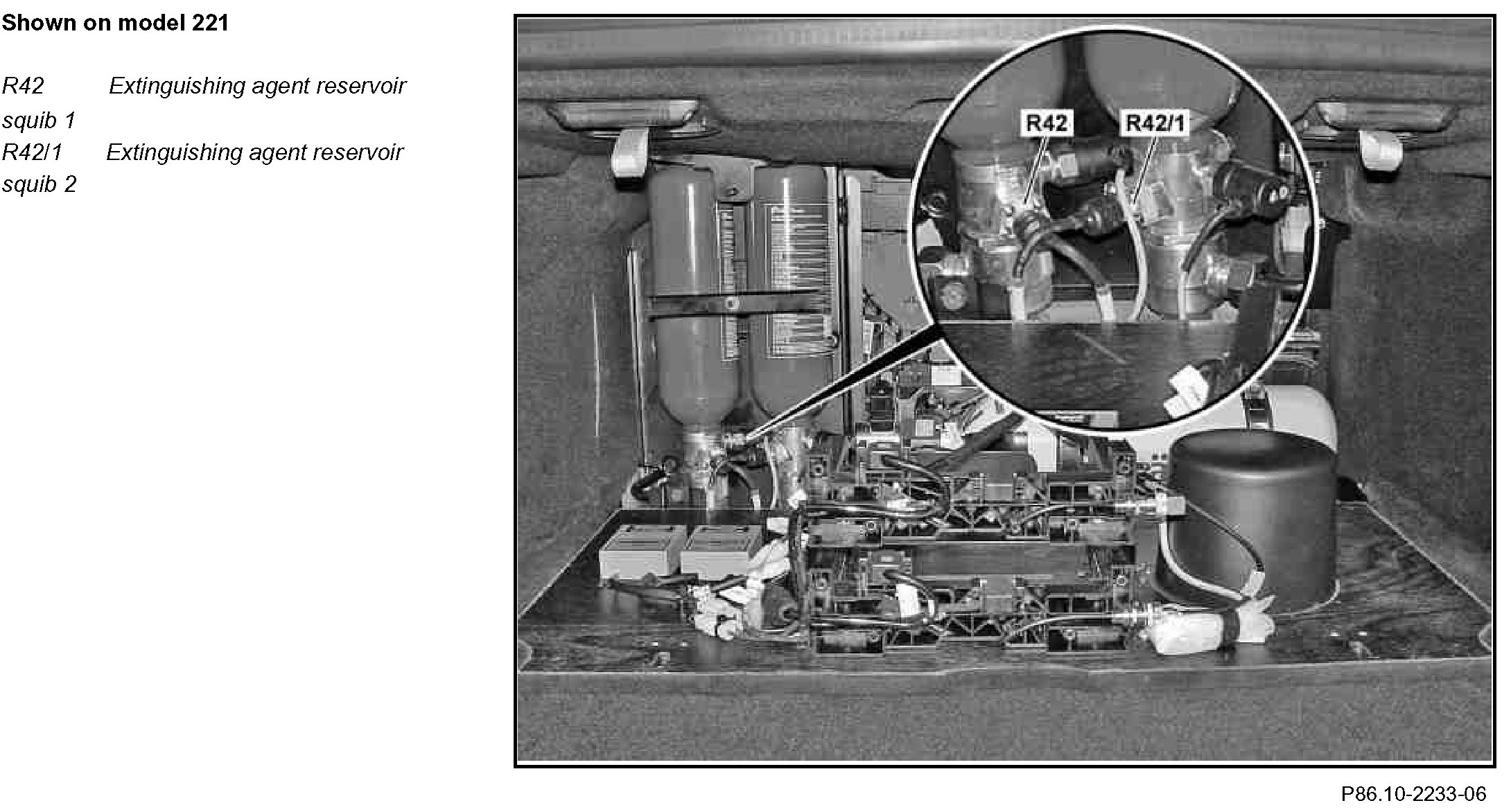

Component Identification:

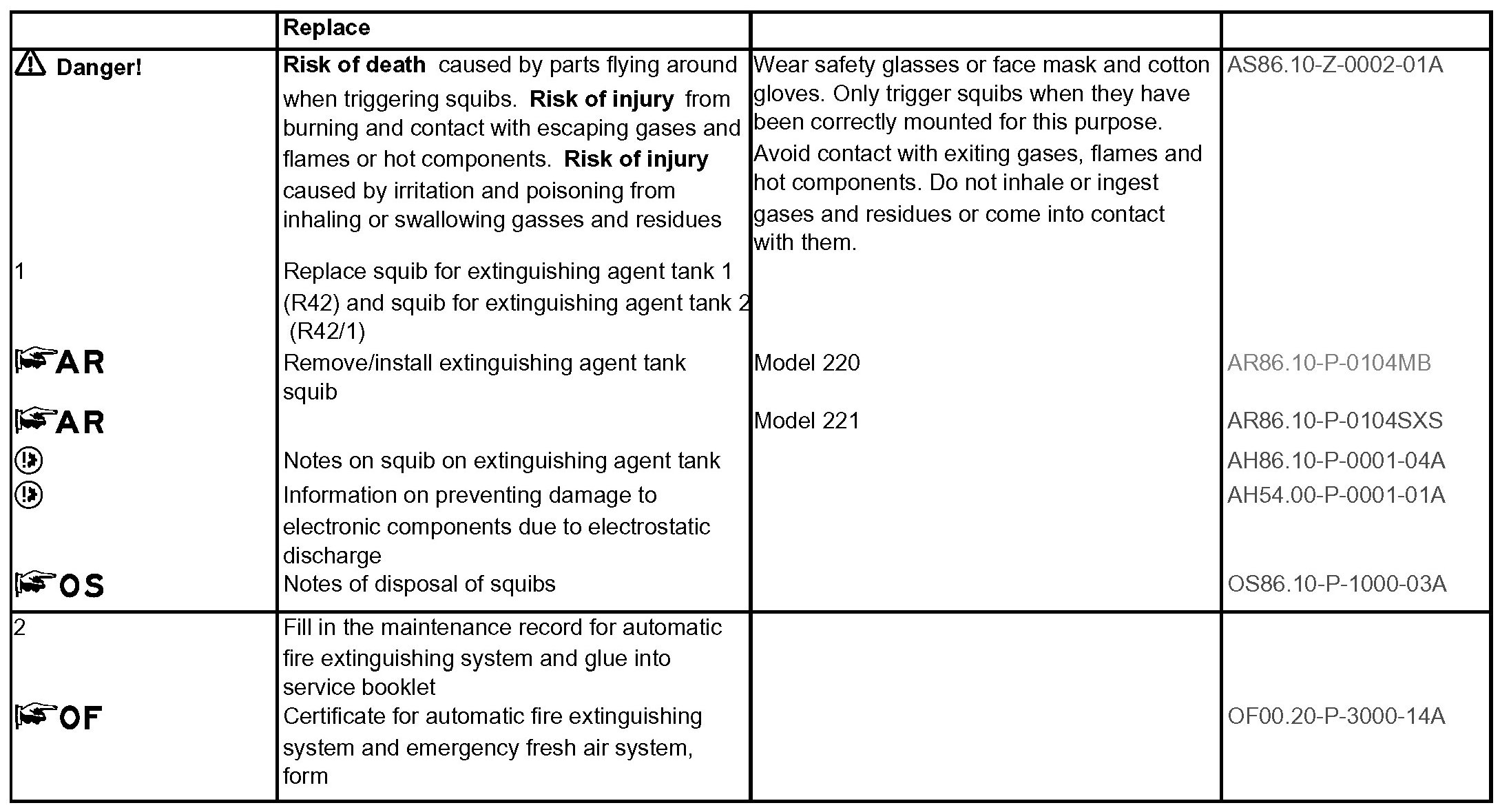

Steps 1 - 2:
